BU66L-MDBT3 (1993)
Toyota Dyna 200
ILLUST NO. 1 OF 2(8808-9505)B,11B,14B..BU60,61,66,70,83,84
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56440 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL PRECLEANER |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL PRECLEANER |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL PRECLEANER |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 17807-56011 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 90999-92002 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8808-9505)B,11B,14B..BU6#,83,84,87
SNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56440 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL PRECLEANER |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56150 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL PRECLEANER |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56011 |
11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,11B,14B..BU60,66,83,84..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 17807-56011 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
B,11B,14B..BU6#,70,8#,9# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
B,11B,14B..BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 90999-92002 | ||||
| 91661-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

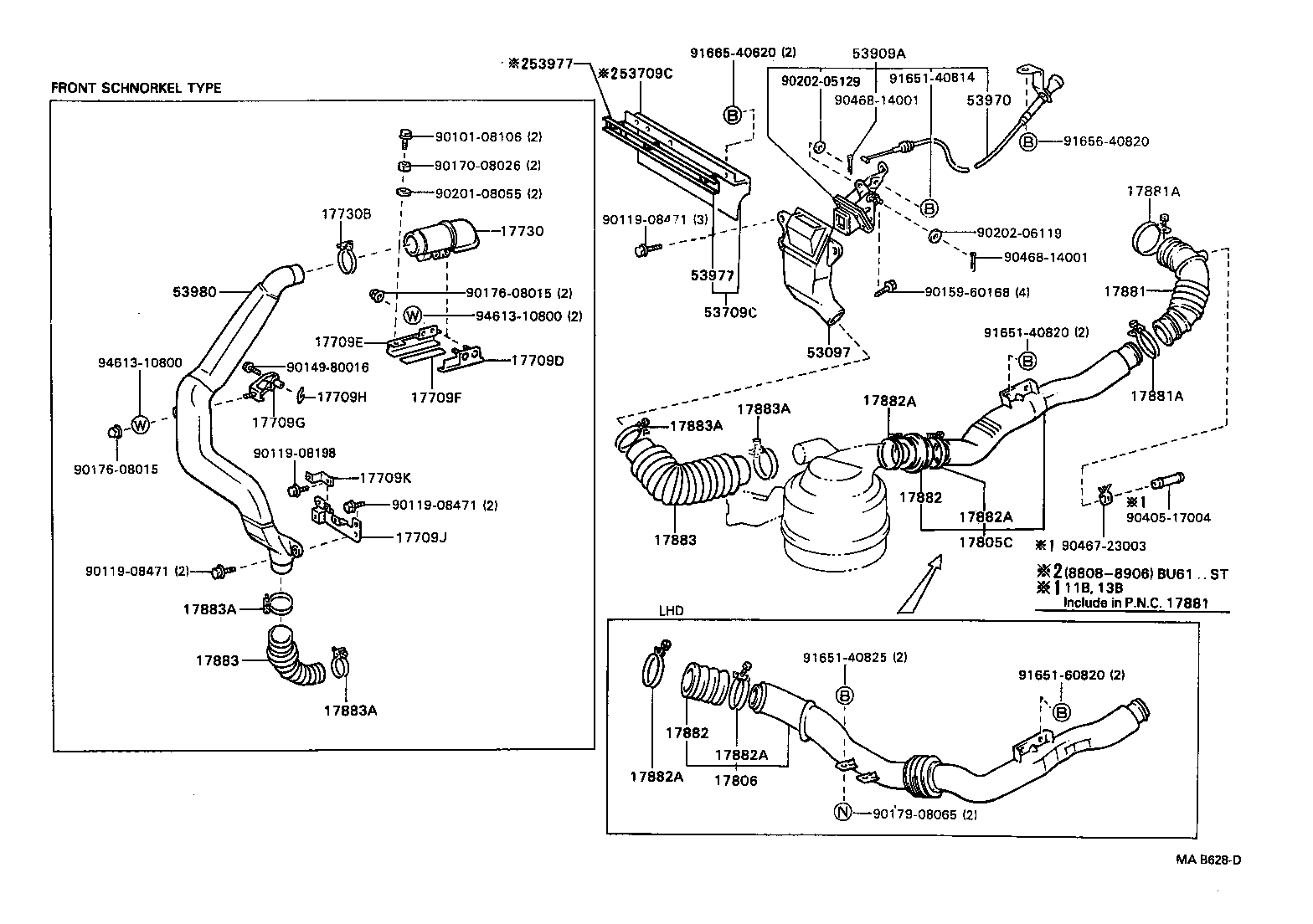

ILLUST NO. 2 OF 2(8808-9505)B,11B,14B..BU60,61,66,70,83,84
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
11B..BU84..RHD;B,14B..BU60,66..T3;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 53764-95406 |
11B,14B..BU66,84..RHD;B,14B..BU60,66..T3..TS;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
14B..BU66..ARL;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66..T3..TS;B,11B,14B..BU65,67,83,84,87 |
1 | ||
| 17730-56040 |
B,14B..BU60,66..T3;B,11B,14B..BU61,65,67,83,84,87..WT |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
14B..BU66;14B..BU91..GEN;11B,14B..BU61,65,96..WT..(ARL,GEN);B,11B,14B..BU60,70,8#..(GEN,GHD,SA)..(CBU,IV3) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56110 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17881-58130 |
11B,14B..BU61,66,84..GEN,SA |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56090 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56090 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.1 |
1 | ||
| 96111-10780 |
11B..BU84..RHD;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 96111-10830 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.2 |
1 | ||
| 96111-10780 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.1 |
1 | ||
| 96111-10780 |
11B..BU84..RHD;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 96111-10830 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.2 |
1 | ||
| 96111-10780 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.1 |
1 | ||
| 96111-10780 |
11B..BU84..RHD;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 96111-10830 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.2 |
1 | ||
| 96111-10780 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.1 |
1 | ||
| 96111-10780 |
11B..BU84..RHD;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 96111-10830 |
B,11B,14B..BU60,61,66,70,83,84..LHD NO.2 |
1 | ||
| 96111-10780 |
14B..BU66..TS;11B,14B..BU65,67;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95417 |
BU84..RHD;BU61..WT..CBU;BU61..LHD..IV3;BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 53097-95417 |
BU65,67;BU66..TS;BU61,66,87..ARL,GHD |
1 | ||
| 53097-95425 |
BU60,61,66,70,83,84..LHD |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95405 |
BU60,61,66,70,83,84..LHD |
1 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90119-08198 | ||||
| 90119-08471 | ||||
| 90149-80016 | ||||
| 90159-60168 | ||||
| 90170-08026 | ||||
| 90176-08015 | ||||
| 90179-08065 | ||||
| 90201-08055 | ||||
| 90202-05129 | ||||
| 90202-06119 | ||||
| 90405-17004 | ||||
| 90467-23003 | ||||
| 90468-14001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-40825 | ||||
| 91651-60820 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||
| 94613-10800 | ||||
ILLUST NO. 2 OF 2(8808-9505)B,11B,14B..BU6#,83,84,87
SNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
11B..BU84..RHD;B,14B..BU60,66..T3;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 53764-95406 |
11B,14B..BU66,84..RHD;B,14B..BU60,66..T3..TS;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 17714 - RUBBER SEAL, AIR INTAKE | ||||
| 17714-95401 |
11B..BU84..RHD;B,14B..BU60,66..T3;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 17714-95401 |
11B,14B..BU66,84..RHD;B,14B..BU60,66..T3..TS;B,11B,14B..BU61,65,67,83,87..WT |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
14B..BU66..ARL;11B..BU61..WT..CBU;11B..BU61..LHD..IV3;B,14B..BU60,66..T3..TS;B,11B,14B..BU65,67,83,84,87 |
1 | ||
| 17730-56040 |
B,14B..BU60,66..T3;B,11B,14B..BU61,65,67,83,84,87..WT |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
14B..BU66;14B..BU91..GEN;11B,14B..BU61,65,96..WT..(ARL,GEN);B,11B,14B..BU60,70,8#..(GEN,GHD,SA)..(CBU,IV3) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56110 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17881-58130 |
11B,14B..BU61,66,84..GEN,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-56110 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17881-58130 |
11B,14B..BU61,66,84..GEN,SA |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10750 |
14B..BU66..TS;11B,14B..BU65,67,88,9#;11B,14B..BU61,66,87..ARL,GHD PIPE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56090 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-56090 |
14B..BU66..TS;11B,14B..BU61,66,87..ARL,GHD |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B..BU6#,70,83,84,87 |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-56060 |
B,11B,14B..BU60,61,66,83,84,87..T3 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-56060 |
B,11B,14B..BU60,61,66,83,84,87..T3 |
1 | ||
| 53067 - BRACKET SUB-ASSY, AIR CLEANER INLET | ||||
| 53067-95400 |
BU66,84..RHD;BU60,66..T3..TS;BU61,65,67,83,87..WT |
1 | ||
| 53067-95400 |
BU84..RHD;BU60,66..T3;BU61,65,67,83,87..WT |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95417 |
BU84..RHD;BU61..WT..CBU;BU61..LHD..IV3;BU60,66,83..T3..5F AIR CLEANER REAR SCHNORKEL TNF PRECLEANER |
1 | ||
| 53097-95417 |
BU65,67;BU66..TS;BU61,66,87..ARL,GHD |
1 | ||
| 53097-95425 |
BU60,61,66,70,83,84..LHD |
1 | ||
| 53766A - BRACKET, AIR CLEANER INLET PIPE | ||||
| 53766-95401 |
BU84..RHD;BU60,66..T3;BU61,65,67,83,87..WT |
1 | ||
| 53766-95401 |
BU66,84..RHD;BU60,66..T3..TS;BU61,65,67,83,87..WT |
1 | ||
| Common parts | ||||
| 90109-08025 | ||||
| 90119-08471 | ||||
| 90387-10107 | ||||
| 90480-16011 | ||||
| 90480-16021 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 91651-61025 | ||||
| 94612-11200 | ||||
| 96111-10780 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
