BU65RD-MDTQ (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine 11B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )BU65,67

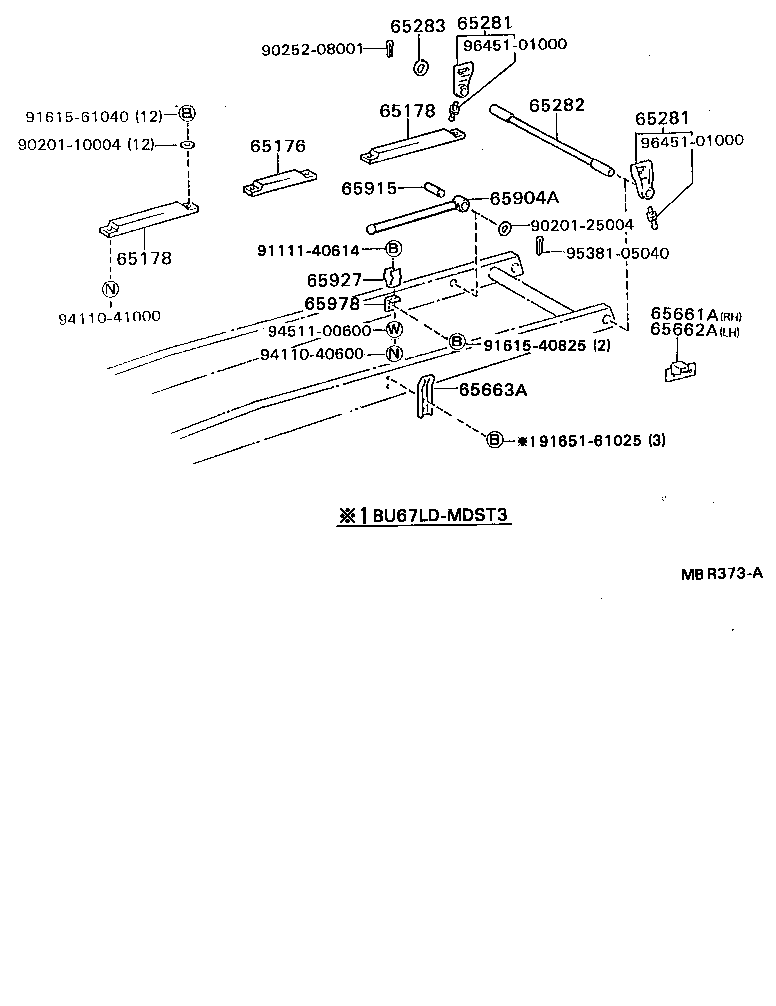

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
65176 - SILL, BESSEL RAIL, FRONT
65176-93100	BU65..CBU	08/1988 - 05/1995	2
65178 - SILL, BESSEL RAIL, REAR
65178-93100	BU65..CBU	08/1988 - 05/1995	4
65178 - SILL, BESSEL RAIL, REAR
65178-93100	BU65..CBU	08/1988 - 05/1995	4
65281 - BRACKET, BEZEL HINGE
65281-93101	BU65..CBU	08/1988 - 05/1995	2
65281 - BRACKET, BEZEL HINGE
65281-93101	BU65..CBU	08/1988 - 05/1995	2
65282 - SHAFT, BEZEL HINGE
65206-93100	BU65..CBU	08/1988 - 01/1990	1
65206-93101	BU65..CBU	01/1990 - 05/1995	1
65283 - STOPPER, BEZEL HINGE SHAFT
65283-93102	BU65..CBU	08/1988 - 05/1995	2
65661A - GUIDE, ROLLER, RH
65661-93102	BU65..CBU	08/1988 - 05/1995	1
65662A - GUIDE, ROLLER, LH
65661-93102	BU65..CBU	08/1988 - 05/1995	1
65663A - GUIDE, VESSEL
65663-93100	BU67;BU65..CBU	10/1990 - 05/1995	2
65663-93100	BU65..CBU	08/1988 - 10/1990	2
65904A - BAR SUB-ASSY, VESSEL STAND
65904-93100	BU65..CBU	08/1988 - 05/1995	1
65915 - PIN, BEZEL STAND
65974-93100	BU65..CBU	08/1988 - 05/1995	1
65927 - CLIP, BAR
90468-12008	BU65..CBU	08/1988 - 05/1995	1
65978 - BRACKET, VESSEL STAND
65978-93100	BU65..CBU	08/1988 - 05/1995	1
Common parts
90201-10004
90201-25004
90252-08001
91111-40614
91615-40825
91615-61040
91651-61025
94110-40600
94110-41000
94511-00600
95381-05040
96451-01000
