Toyota Dyna 200 BU65 INJECTION NOZZLE

BU65LD-MDTE3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988

Engine 11B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8708- )11B,13B

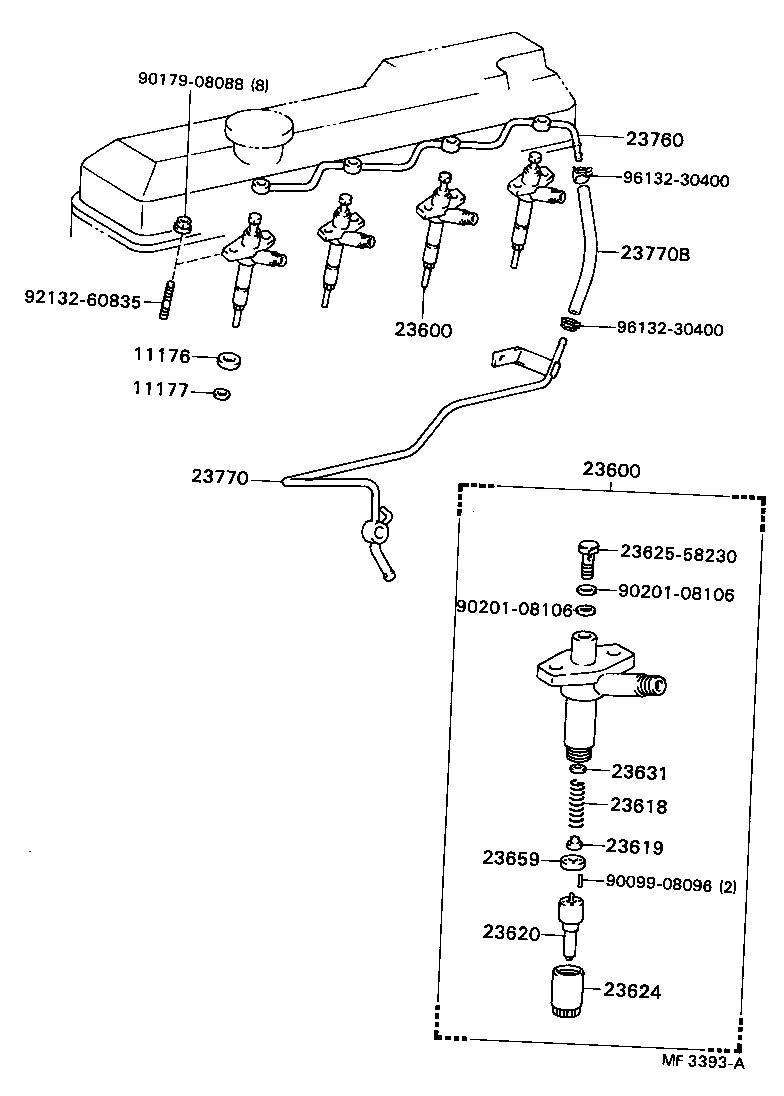

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-56020	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
11176-56020	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
11177 - GASKET, INJECTION NOZZLE SEAT
90430-17003	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
90430-17003	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56030	11B..BU61,65,81,86	08/1987 - 08/1988	4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56030	11B..BU61,65,81,86	08/1987 - 08/1988	4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23618-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23619-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23620 - NOZZLE ASSY
23620-56010	11B..BU61,65,81,86	08/1987 - 08/1988	4
23624 - NUT, NOZZLE RETAINING
23624-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23624-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.150	08/1987 - 10/1987	4
23631-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.100	08/1987 - 10/1987	4
23631-58017	11B,13B..BU61,62,65,81,82,85,86 T=1.350	08/1987 - 10/1987	4
23631-58016	11B,13B..BU61,62,65,81,82,85,86 T=1.300	08/1987 - 10/1987	4
23631-58014	11B,13B..BU61,62,65,81,82,85,86 T=1.200	08/1987 - 10/1987	4
23632-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.550	08/1987 - 10/1987	4
23631-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.450	08/1987 - 10/1987	4
23631-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.050	08/1987 - 10/1987	4
23632-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.500	08/1987 - 10/1987	4
23632-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.600	08/1987 - 10/1987	4
23632-58018	11B,13B..BU61,62,65,81,82,85,86 T=1.325	08/1987 - 10/1987	4
23631-58015	11B,13B..BU61,62,65,81,82,85,86 T=1.250	08/1987 - 10/1987	4
23632-58016	11B,13B..BU61,62,65,81,82,85,86 T=1.800	08/1987 - 10/1987	4
23633-58015	11B,13B..BU61,62,65,81,82,85,86 T=0.800	08/1987 - 10/1987	4
23633-58016	11B,13B..BU61,62,65,81,82,85,86 T=0.850	08/1987 - 10/1987	4
23633-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.425	08/1987 - 10/1987	4
23633-58013	11B,13B..BU61,62,65,81,82,85,86 T=0.700	08/1987 - 10/1987	4
23632-58015	11B,13B..BU61,62,65,81,82,85,86 T=1.750	08/1987 - 10/1987	4
23633-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.025	08/1987 - 10/1987	4
23633-58012	11B,13B..BU61,62,65,81,82,85,86 T=0.950	08/1987 - 10/1987	4
23632-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.375	08/1987 - 10/1987	4
23632-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.650	08/1987 - 10/1987	4
23633-58018	11B,13B..BU61,62,65,81,82,85,86 T=0.975	08/1987 - 10/1987	4
23632-58014	11B,13B..BU61,62,65,81,82,85,86 T=1.700	08/1987 - 10/1987	4
23632-58017	11B,13B..BU61,62,65,81,82,85,86 T=1.275	08/1987 - 10/1987	4
23631-58018	11B,13B..BU61,62,65,81,82,85,86 T=1.400	08/1987 - 10/1987	4
23634-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.125	08/1987 - 10/1987	4
23634-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.225	08/1987 - 10/1987	4
23631-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.000	08/1987 - 10/1987	4
23633-58011	11B..BU61,65,81,86 T=1.475	08/1987 - 08/1988	4
23634-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.075	08/1987 - 10/1987	4
23633-58014	11B,13B..BU61,62,65,81,82,85,86 T=0.750	08/1987 - 10/1987	4
23633-58017	11B,13B..BU61,62,65,81,82,85,86 T=0.900	08/1987 - 10/1987	4
23634-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.175	08/1987 - 10/1987	4
23631-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.000	10/1987 - 08/1988	4
23631-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.100	10/1987 - 08/1988	4
23631-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=1.200	10/1987 - 08/1988	4
23631-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=1.350	10/1987 - 08/1988	4
23631-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.150	10/1987 - 08/1988	4
23632-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.500	10/1987 - 08/1988	4
23632-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.600	10/1987 - 08/1988	4
23631-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.050	10/1987 - 08/1988	4
23632-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.650	10/1987 - 08/1988	4
23632-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=1.325	10/1987 - 08/1988	4
23631-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=1.250	10/1987 - 08/1988	4
23631-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=1.300	10/1987 - 08/1988	4
23632-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.550	10/1987 - 08/1988	4
23631-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.450	10/1987 - 08/1988	4
23632-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=1.750	10/1987 - 08/1988	4
23631-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=1.400	10/1987 - 08/1988	4
23632-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=1.700	10/1987 - 08/1988	4
23632-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.375	10/1987 - 08/1988	4
23632-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=1.800	10/1987 - 08/1988	4
23632-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=1.275	10/1987 - 08/1988	4
23634-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.175	10/1987 - 08/1988	4
23633-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.425	10/1987 - 08/1988	4
23633-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=0.800	10/1987 - 08/1988	4
23634-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.075	10/1987 - 08/1988	4
23633-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=0.975	10/1987 - 08/1988	4
23633-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=0.750	10/1987 - 08/1988	4
23633-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=0.850	10/1987 - 08/1988	4
23634-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.225	10/1987 - 08/1988	4
23633-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=0.900	10/1987 - 08/1988	4
23633-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=0.950	10/1987 - 08/1988	4
23633-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=0.700	10/1987 - 08/1988	4
23634-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.125	10/1987 - 08/1988	4
23633-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.025	10/1987 - 08/1988	4
23659 - PACKING, TIP(FOR NOZZLE)
23659-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23659-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-56050	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	1
23760-56050	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-56070	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	1
23770-56070	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	1
23770B - HOSE, FUEL
95333-04020	11B,13B..BU61,62,65,81,82,85,86 L=200	08/1987 - 10/1987	1
95333-04020	11B,13B..BU61,62,65,81,82,85,86,93 L=200	10/1987 - 08/1988	1
Common parts
23625-58230
90099-08096
90179-08088
90201-08106
92132-60835
96132-30400

(8708- )B

Click highlighted areas on diagram

Part #	Description	Period	Qty
11176 - SEAT, INJECTION NOZZLE
11176-56020	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
11176-56020	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
11177 - GASKET, INJECTION NOZZLE SEAT
90430-17003	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
90430-17003	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56030	11B..BU61,65,81,86	08/1987 - 08/1988	4
23600 - HOLDER & NOZZLE SET, NOZZLE
23600-56030	11B..BU61,65,81,86	08/1987 - 08/1988	4
23618 - SPRING, NOZZLE HOLDER PRESSURE
23618-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23618-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23619 - PIN, NOZZLE HOLDER PRESSURE
23619-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23619-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23620 - NOZZLE ASSY
23620-56010	11B..BU61,65,81,86	08/1987 - 08/1988	4
23624 - NUT, NOZZLE RETAINING
23624-58010	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	4
23624-58010	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	4
23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.150	08/1987 - 10/1987	4
23631-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.100	08/1987 - 10/1987	4
23631-58017	11B,13B..BU61,62,65,81,82,85,86 T=1.350	08/1987 - 10/1987	4
23631-58016	11B,13B..BU61,62,65,81,82,85,86 T=1.300	08/1987 - 10/1987	4
23631-58014	11B,13B..BU61,62,65,81,82,85,86 T=1.200	08/1987 - 10/1987	4
23632-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.550	08/1987 - 10/1987	4
23631-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.450	08/1987 - 10/1987	4
23631-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.050	08/1987 - 10/1987	4
23632-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.500	08/1987 - 10/1987	4
23632-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.600	08/1987 - 10/1987	4
23632-58018	11B,13B..BU61,62,65,81,82,85,86 T=1.325	08/1987 - 10/1987	4
23631-58015	11B,13B..BU61,62,65,81,82,85,86 T=1.250	08/1987 - 10/1987	4
23632-58016	11B,13B..BU61,62,65,81,82,85,86 T=1.800	08/1987 - 10/1987	4
23633-58015	11B,13B..BU61,62,65,81,82,85,86 T=0.800	08/1987 - 10/1987	4
23633-58016	11B,13B..BU61,62,65,81,82,85,86 T=0.850	08/1987 - 10/1987	4
23633-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.425	08/1987 - 10/1987	4
23633-58013	11B,13B..BU61,62,65,81,82,85,86 T=0.700	08/1987 - 10/1987	4
23632-58015	11B,13B..BU61,62,65,81,82,85,86 T=1.750	08/1987 - 10/1987	4
23633-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.025	08/1987 - 10/1987	4
23633-58012	11B,13B..BU61,62,65,81,82,85,86 T=0.950	08/1987 - 10/1987	4
23632-58019	11B,13B..BU61,62,65,81,82,85,86 T=1.375	08/1987 - 10/1987	4
23632-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.650	08/1987 - 10/1987	4
23633-58018	11B,13B..BU61,62,65,81,82,85,86 T=0.975	08/1987 - 10/1987	4
23632-58014	11B,13B..BU61,62,65,81,82,85,86 T=1.700	08/1987 - 10/1987	4
23632-58017	11B,13B..BU61,62,65,81,82,85,86 T=1.275	08/1987 - 10/1987	4
23631-58018	11B,13B..BU61,62,65,81,82,85,86 T=1.400	08/1987 - 10/1987	4
23634-58011	11B,13B..BU61,62,65,81,82,85,86 T=1.125	08/1987 - 10/1987	4
23634-58013	11B,13B..BU61,62,65,81,82,85,86 T=1.225	08/1987 - 10/1987	4
23631-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.000	08/1987 - 10/1987	4
23633-58011	11B..BU61,65,81,86 T=1.475	08/1987 - 08/1988	4
23634-58010	11B,13B..BU61,62,65,81,82,85,86 T=1.075	08/1987 - 10/1987	4
23633-58014	11B,13B..BU61,62,65,81,82,85,86 T=0.750	08/1987 - 10/1987	4
23633-58017	11B,13B..BU61,62,65,81,82,85,86 T=0.900	08/1987 - 10/1987	4
23634-58012	11B,13B..BU61,62,65,81,82,85,86 T=1.175	08/1987 - 10/1987	4
23631-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.000	10/1987 - 08/1988	4
23631-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.100	10/1987 - 08/1988	4
23631-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=1.200	10/1987 - 08/1988	4
23631-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=1.350	10/1987 - 08/1988	4
23631-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.150	10/1987 - 08/1988	4
23632-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.500	10/1987 - 08/1988	4
23632-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.600	10/1987 - 08/1988	4
23631-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.050	10/1987 - 08/1988	4
23632-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.650	10/1987 - 08/1988	4
23632-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=1.325	10/1987 - 08/1988	4
23631-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=1.250	10/1987 - 08/1988	4
23631-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=1.300	10/1987 - 08/1988	4
23632-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.550	10/1987 - 08/1988	4
23631-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.450	10/1987 - 08/1988	4
23632-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=1.750	10/1987 - 08/1988	4
23631-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=1.400	10/1987 - 08/1988	4
23632-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=1.700	10/1987 - 08/1988	4
23632-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.375	10/1987 - 08/1988	4
23632-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=1.800	10/1987 - 08/1988	4
23632-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=1.275	10/1987 - 08/1988	4
23634-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=1.175	10/1987 - 08/1988	4
23633-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.425	10/1987 - 08/1988	4
23633-58015	11B,13B..BU61,62,65,81,82,85,86,93 T=0.800	10/1987 - 08/1988	4
23634-58010	11B,13B..BU61,62,65,81,82,85,86,93 T=1.075	10/1987 - 08/1988	4
23633-58018	11B,13B..BU61,62,65,81,82,85,86,93 T=0.975	10/1987 - 08/1988	4
23633-58014	11B,13B..BU61,62,65,81,82,85,86,93 T=0.750	10/1987 - 08/1988	4
23633-58016	11B,13B..BU61,62,65,81,82,85,86,93 T=0.850	10/1987 - 08/1988	4
23634-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=1.225	10/1987 - 08/1988	4
23633-58017	11B,13B..BU61,62,65,81,82,85,86,93 T=0.900	10/1987 - 08/1988	4
23633-58012	11B,13B..BU61,62,65,81,82,85,86,93 T=0.950	10/1987 - 08/1988	4
23633-58013	11B,13B..BU61,62,65,81,82,85,86,93 T=0.700	10/1987 - 08/1988	4
23634-58011	11B,13B..BU61,62,65,81,82,85,86,93 T=1.125	10/1987 - 08/1988	4
23633-58019	11B,13B..BU61,62,65,81,82,85,86,93 T=1.025	10/1987 - 08/1988	4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-56050	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	1
23760-56050	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	1
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-56070	11B,13B..BU61,62,65,81,82,85,86,93	10/1987 - 08/1988	1
23770-56070	11B,13B..BU61,62,65,81,82,85,86	08/1987 - 10/1987	1
23770B - HOSE, FUEL
95333-04020	11B,13B..BU61,62,65,81,82,85,86 L=200	08/1987 - 10/1987	1
95333-04020	11B,13B..BU61,62,65,81,82,85,86,93 L=200	10/1987 - 08/1988	1
Common parts
91651-40814
96132-30400

(8808-9505)B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

BU65LD-MDTE3 (1987)

(8708- )11B,13B

(8708- )B

(8808-9505)B

Part Price Details
