BU61R-MDBTQ3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

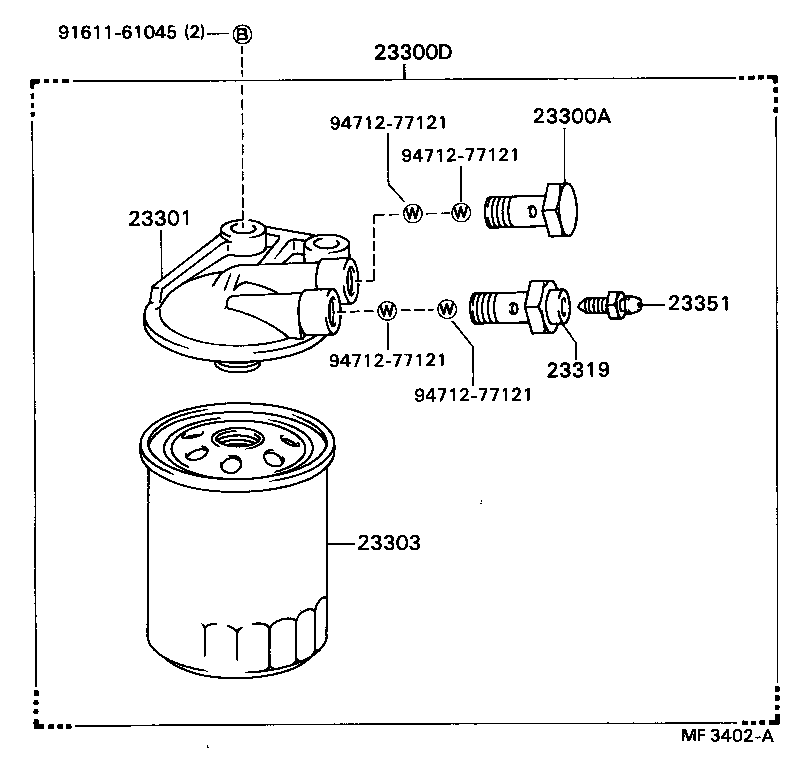

ILLUST NO. 1 OF 2(8708- )11B,13B

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23319 23351 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90099-18010

11B,13B..BU61,62,65,81,82,85,86

 1
90099-18010

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56080

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300-56080

11B,13B..BU61,62,65,81,82,85,86

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56070

11B,13B..BU61,62,65,81,82,85,86,93

 1
23311-56070

11B,13B..BU61,62,65,81,82,85,86

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54072

11B,13B..BU61,62,65,81,82,85,86,93

 1
23303-54071

11B,13B..BU61,62,65,81,82,85,86,93

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

B,11B,13B..BU6#,70,8#,93

 1
23319-48010

B,11B,13B..BU6#,70,8#

 1
23351 - PLUG, AIR VENT
23351-56010

B,11B,13B..BU6#,70,8#,93

 2
47547-12030

B,11B,13B..BU6#,70,8#,93

 1
47547-12030

B,11B,13B..BU6#,70,8#

 1
Common parts
91611-61045
94712-77121

ILLUST NO. 1 OF 2(8708- )B

Click highlighted areas on diagram

diagram 23300A 23300D 23301 23303 23312 23319 23351 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90099-18010

11B,13B..BU61,62,65,81,82,85,86

 1
90099-18010

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56080

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300-56080

11B,13B..BU61,62,65,81,82,85,86

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56070

11B,13B..BU61,62,65,81,82,85,86,93

 1
23311-56070

11B,13B..BU61,62,65,81,82,85,86

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54072

11B,13B..BU61,62,65,81,82,85,86,93

 1
23303-54071

11B,13B..BU61,62,65,81,82,85,86,93

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

B,11B,13B..BU6#,70,8#,93

 1
23319-48010

B,11B,13B..BU6#,70,8#

 1
23351 - PLUG, AIR VENT
23351-56010

B,11B,13B..BU6#,70,8#,93

 2
47547-12030

B,11B,13B..BU6#,70,8#,93

 1
47547-12030

B,11B,13B..BU6#,70,8#

 1
Common parts
91611-61045
94712-77121

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 23300A 23300D 23302 23303 23312 23319 23329 23329A 23332 23332 23333 23334 23351 9161161045 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90099-18010

11B,13B..BU61,62,65,81,82,85,86

 1
90099-18010

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56080

11B,13B..BU61,62,65,81,82,85,86,93

 1
23300-56080

11B,13B..BU61,62,65,81,82,85,86

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54072

11B,13B..BU61,62,65,81,82,85,86,93

 1
23303-54071

11B,13B..BU61,62,65,81,82,85,86,93

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

B,11B,13B..BU6#,70,8#,93

 1
23319-48010

B,11B,13B..BU6#,70,8#

 1
23351 - PLUG, AIR VENT
23351-56010

B,11B,13B..BU6#,70,8#,93

 2
47547-12030

B,11B,13B..BU6#,70,8#,93

 1
47547-12030

B,11B,13B..BU6#,70,8#

 1
Common parts
91611-61045
94712-77121

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 23338 23351 23351 23353 23353 23930 23930 23930 23930 8401 9017908146 9017908146 9165540825 9165540825
Part # Description Qty Price
23338 - GASKET(FOR WARNING SWITCH)
23338-54010

B,11B,13B..BU6#,70,8#,93

 1
23351 - PLUG, AIR VENT
23351-56010

B,11B,13B..BU6#,70,8#,93

 2
47547-12030

B,11B,13B..BU6#,70,8#,93

 1
47547-12030

B,11B,13B..BU6#,70,8#

 1
23351 - PLUG, AIR VENT
23351-56010

B,11B,13B..BU6#,70,8#,93

 2
47547-12030

B,11B,13B..BU6#,70,8#,93

 1
47547-12030

B,11B,13B..BU6#,70,8#

 1
23353 - RING, O(FOR AIR VENT PLUG)
23353-54010

B,11B,13B..BU6#,70,8#,93

 2
23353 - RING, O(FOR AIR VENT PLUG)
23353-54010

B,11B,13B..BU6#,70,8#,93

 2
23930 - SEDIMENTER ASSY, FUEL
23930-56051

B,11B,13B..BU60,61,62,70,80,81,82

 1
23930 - SEDIMENTER ASSY, FUEL
23930-56051

B,11B,13B..BU60,61,62,70,80,81,82

 1
23930 - SEDIMENTER ASSY, FUEL
23930-56051

B,11B,13B..BU60,61,62,70,80,81,82

 1
23930 - SEDIMENTER ASSY, FUEL
23930-56051

B,11B,13B..BU60,61,62,70,80,81,82

 1
Common parts
90179-08146
91655-40825
Linked diagrams
8401
