BU61R-MDBT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

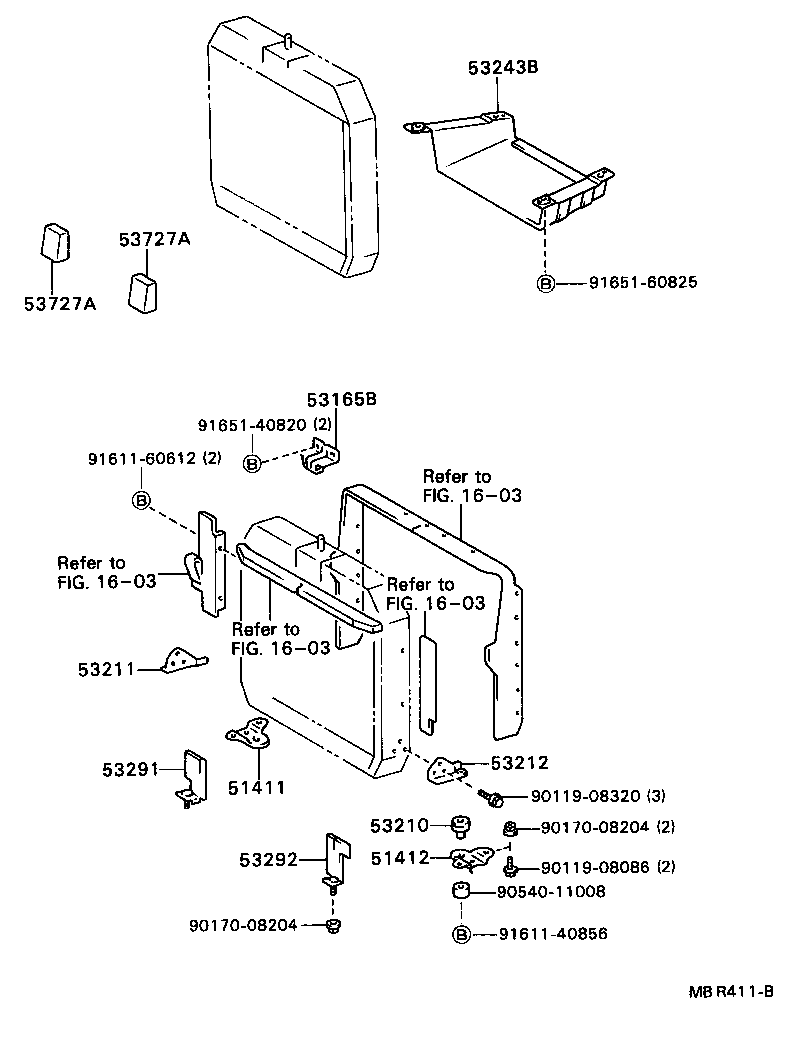

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 51411 51412 53165B 53210 53211 53212 53243B 53291 53292 53727A 53727A 9011908086 9011908320 9017008204 9017008204 9054011008 9161140856 9161160612 9165140820 9165160825
Part # Description Qty Price
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-36120

BU60,61,66,70,83,84,87

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51412-36090

BU60,61,66,70,83,84,87

 1
53165B - SUPPORT, RADIATOR, CENTER
53165-36040

BU6#,70,83,84,87

 1
53210 - SUPPORT ASSY, RADIATOR
53210-36010

BU6#,70,8#,9#

 2
53211 - SUPPORT, RADIATOR, RH
53211-36060

BU60,61,66,70,83,84,87

 1
53212 - SUPPORT, RADIATOR, LH
53212-36020

BU6#,70,8#,9#

 1
53243B - GUIDE, LOWER WIND
53243-36070

BU66..T3..TB..GEN;BU60,61,70,83,84,87..GEN,GHD

 1
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-36050

BU60,61,66,70,83,84,87

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-36060

BU60,61,66,70,83,84,87

 1
53727A - SHUTTER, HOT AIR SIDE
53727-95401

BU6#,70,83,84,87

 2
53727A - SHUTTER, HOT AIR SIDE
53727-95401

BU6#,70,83,84,87

 2
Common parts
90119-08086
90119-08320
90170-08204
90540-11008
91611-40856
91611-60612
91651-40820
91651-60825
Linked diagrams
1603
