Toyota Dyna 200 BU61 VENTURI - JDM Part Detective

BU61R-MDBT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine 11B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )11B,14B#

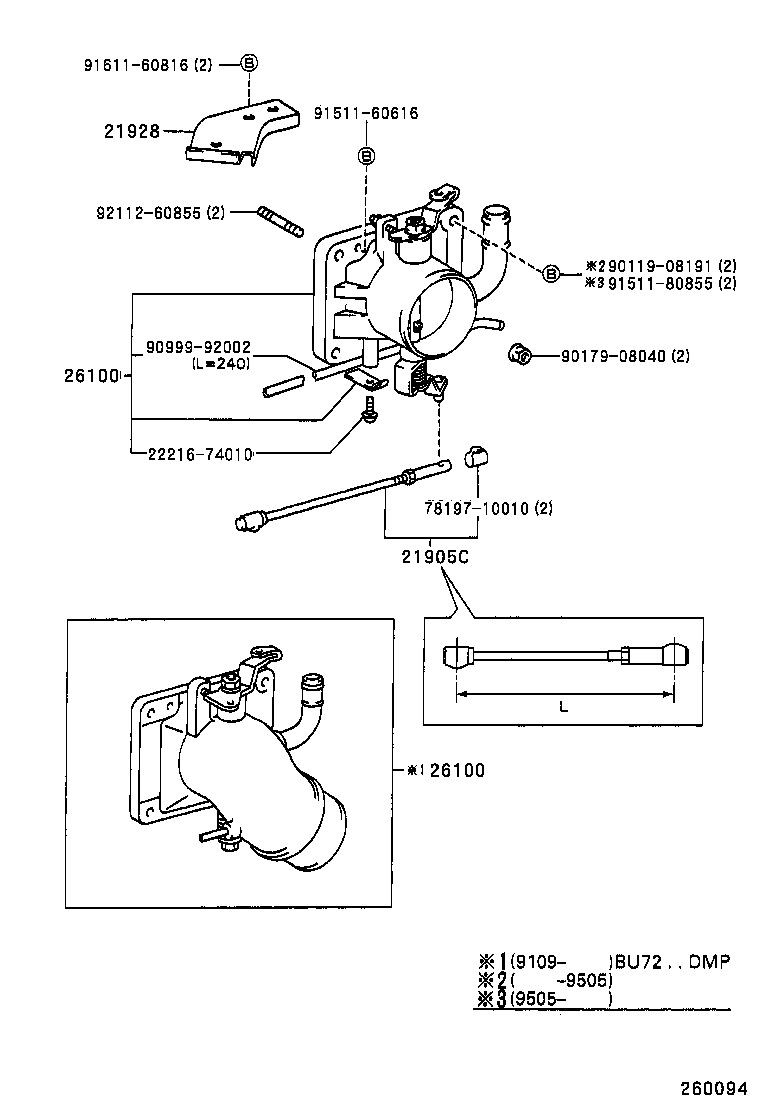

Click highlighted areas on diagram

Part #	Description	Period	Qty
21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI)
21905-58050	11B,14B..BU61,65,66,84,87,88,9# L=120	08/1988 - 09/1988	1
21905-58010	11B,14B..BU61,65,66,84,87,88,9# L=110	08/1988 - 09/1988	1
21905-58020	11B,14B..BU61,65,66,84,87,88,9# L=112.5	08/1988 - 09/1988	1
21905-58030	11B,14B..BU61,65,66,84,87,88,9# L=115	08/1988 - 09/1988	1
21905-58030	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=115	09/1988 - 08/1990	1
21905-58010	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=110	08/1990 - 07/1993	1
21905-58040	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=117.5	08/1990 - 04/1992	1
21905-58020	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=112.5	09/1988 - 08/1990	1
21905-58010	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=110	09/1988 - 08/1990	1
21905-58040	11B,14B..BU61,65,66,84,87,88,9# L=117.5	08/1988 - 09/1988	1
21905-58070	11B,14B..BU61,65,66,67,84,87,88,9#	07/1993 - 09/1993	1
21905-58050	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=120	08/1990 - 07/1993	1
21905-58030	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=115	08/1990 - 07/1993	1
21905-58020	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=112.5	08/1990 - 07/1993	1
21905-58040	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=117.5	04/1992 - 07/1993	1
21905-58050	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=120	09/1988 - 08/1990	1
21905-58040	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=117.5	09/1988 - 08/1990	1
21928 - SUPPORT, THROTTLE WIRE
21928-58040	11B,14B..BU61,65,66,84,87,88,9#	08/1988 - 01/1989	1
21928-58041	11B,14B..BU61,65,66,84,87,88,9#	01/1989 - 10/1989	1
26100 - VENTURI ASSY
26100-58101	11B,14B..BU61,65,66,67,84,87,88,9#	08/1990 - 05/1995	1
26100-58100	11B,14B..BU61,65,66,67,84,87,88,9#	08/1988 - 08/1990	1
26100 - VENTURI ASSY
26100-58101	11B,14B..BU61,65,66,67,84,87,88,9#	08/1990 - 05/1995	1
26100-58100	11B,14B..BU61,65,66,67,84,87,88,9#	08/1988 - 08/1990	1
Common parts
22216-74010
78197-10010
90119-08191
90179-08040
90999-92002
91511-60616
91511-80855
91611-60816
92112-60855

(8808-9505)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI)
21905-58040	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=117.5	08/1990 - 04/1992	1
21905-58050	11B,14B..BU61,65,66,84,87,88,9# L=120	08/1988 - 09/1988	1
21905-58010	11B,14B..BU61,65,66,84,87,88,9# L=110	08/1988 - 09/1988	1
21905-58020	11B,14B..BU61,65,66,84,87,88,9# L=112.5	08/1988 - 09/1988	1
21905-58030	11B,14B..BU61,65,66,84,87,88,9# L=115	08/1988 - 09/1988	1
21905-58030	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=115	09/1988 - 08/1990	1
21905-58010	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=110	08/1990 - 07/1993	1
21905-58020	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=112.5	09/1988 - 08/1990	1
21905-58010	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=110	09/1988 - 08/1990	1
21905-58040	11B,14B..BU61,65,66,84,87,88,9# L=117.5	08/1988 - 09/1988	1
21905-58070	11B,14B..BU61,65,66,67,84,87,88,9#	07/1993 - 09/1993	1
21905-58050	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=120	08/1990 - 07/1993	1
21905-58030	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=115	08/1990 - 07/1993	1
21905-58020	14B..BU88..CBU,IV3;11B,14B..BU61,65,66,67,84,87,91,96 L=112.5	08/1990 - 07/1993	1
21905-58040	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=117.5	04/1992 - 07/1993	1
21905-58050	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=120	09/1988 - 08/1990	1
21905-58040	14B..BU88..CBU,IV3;11B,14B#..BU61,65,66,67,84,87,91,96 L=117.5	09/1988 - 08/1990	1
26100 - VENTURI ASSY
26100-58101	11B,14B..BU61,65,66,67,84,87,88,9#	08/1990 - 05/1995	1
26100-58100	11B,14B..BU61,65,66,67,84,87,88,9#	08/1988 - 08/1990	1
Common parts
78197-10010
91611-60630

BU61R-MDBT3 (1988)

(8808- )11B,14B#

(8808-9505)B
