BU61R-MDBT3 (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

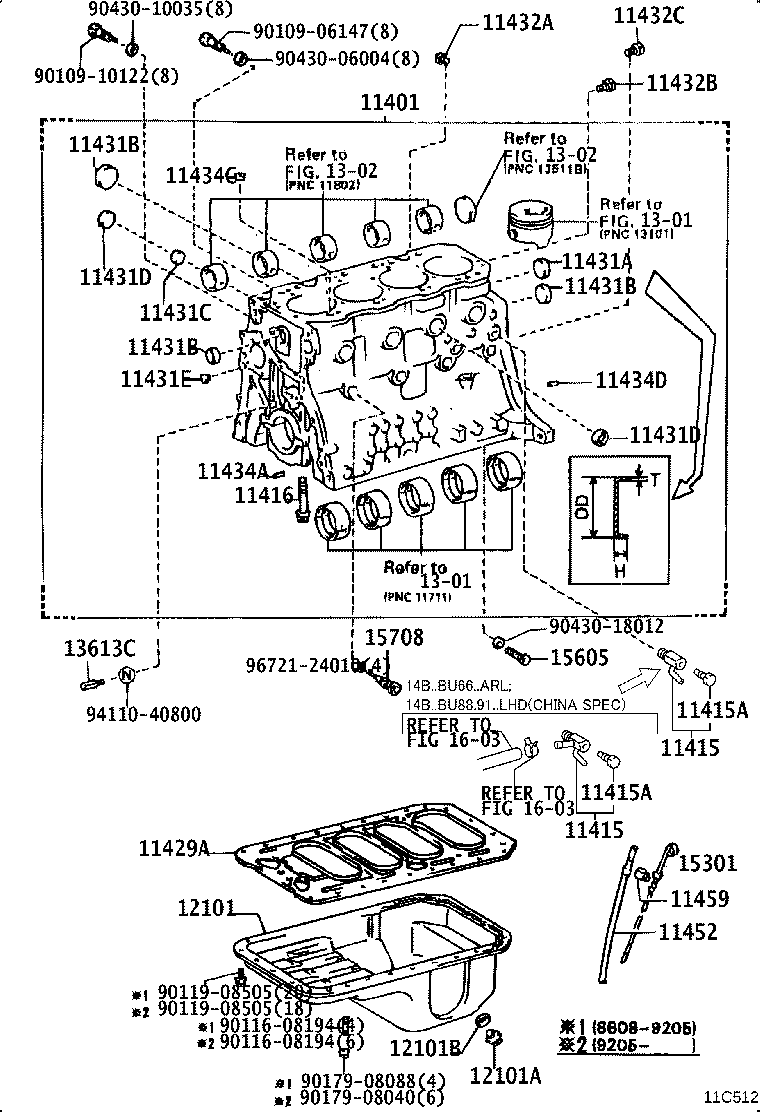

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11415A 11416 11429A 11431A 11431B 11431B 11431B 11431C 11431D 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 12101 12101A 12101B 1301 1301 1302 1302 13613C 15301 15605 15708 1603 1603 9010906147 9010910122 9011608194 9011608194 9011908505 9011908505 9017908040 9017908088 9043006004 9043010035 9043018012 9411040800 9672124010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59386

11B..BU61,65,84

 1
11401-59385

11B..BU61,65,84

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

B,11B,14B#..BU6#,70,8#,9#..5F

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

B,11B,14B#..BU6#,70,8#,9#..5F

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

B,11B,14B#..BU6#,70,8#,9#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

B,11B,14B#..BU6#,70,8#,9#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02083

B,11B,14B#..BU6#,70,8#,9#

*16-2.0PX129.5-32

 5
90910-02082

B,11B,14B#..BU6#,70,8#,9#

*16-2.0PX93.5-32

 5
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-14500

B,11B..BU60,61,65,70,83,84

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-45000

B,11B,14B#..BU6#,70,8#,9#

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-45000

B,11B,14B#..BU6#,70,8#,9#

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-45000

B,11B,14B#..BU6#,70,8#,9#

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43000

B,11B,14B#..BU6#,70,8#,9#

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

B,11B,14B#..BU6#,70,8#,9#

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

B,11B,14B#..BU6#,70,8#,9#

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41400

B,11B,14B#..BU6#,70,8#,9#

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51007

B,11B..BU60,61,65,70,83,84

(9309-)O/CCASE=1,B=3

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53004

B,11B,14B#..BU6#,70,8#,9#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

B,11B,14B#..BU6#,70,8#,9#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

B,11B,14B#..BU6#,70,8#,9#

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15005

B,11B,14B#..BU6#,70,8#,9#

L=7,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

B,11B,14B#..BU6#,70,8#,9#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

B,11B,14B#..BU6#,70,8#,9#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

B,11B,14B#..BU6#,70,8#,9#

 1
12101 - PAN SUB-ASSY, OIL
12101-56100

11B..BU61,65..GEN;B,11B..BU60,70,83,84

 1
12101-56080

11B..BU61,65..GEN;B,11B..BU60,70,83,84

 1
12101-56101

11B..BU61,65..GEN;B,11B..BU60,70,83,84

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

B,11B,14B#..BU6#,70,8#,9#

 1
90341-18089

B,11B,14B#..BU6#,70,8#,9#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18018

B,11B,14B..BU6#,70,8#,9#

 1
90430-12027

B,11B,14B#..BU6#,70,8#,9#

 1
90430-18026

B,11B,14B#..BU6#,70,8#,9#

 1
13613C - NOZZLE, OIL
90915-01015

B,11B,14B#..BU6#,70,8#,9#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-56050

B,11B..BU60,61,65,70,83,84

 1
15301-56060

B,11B..BU60,61,65,70,83,84

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-56010

B,11B,14B#..BU6#,70,8#,9#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-56010

11B,14B#..BU61,65,66,67,84,87,88,9#

 4
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08040
90179-08088
90430-06004
90430-10035
90430-18012
94110-40800
96721-24010
Linked diagrams
1301
1302
1603
