BU61R-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU6#,70,80,81,82

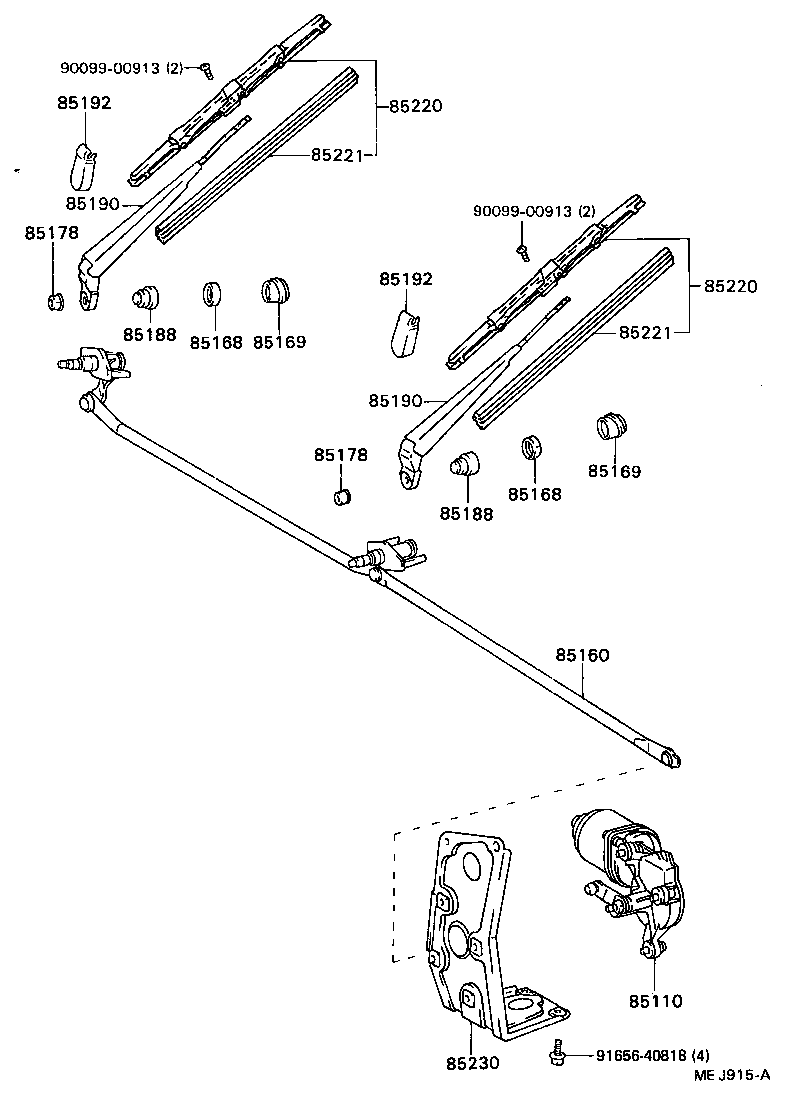

Click highlighted areas on diagram

diagram 85110 85160 85168 85168 85169 85169 85178 85178 85188 85188 85190 85190 85192 85192 85220 85220 85221 85221 85230 9009900913 9009900913 9165640818
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95441

BU6#,80,81,82..RHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95409

BU6#,80,81,82..RHD

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

BU6#,70,80,81,82

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-95700

BU6#,70,80,81,82

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95400

BU6#,70,80,81,82

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85179-95400

BU6#,70,80,81,82

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

BU6#,70,80,81,82

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

BU6#,70,80,81,82

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95700

BU6#,70,80,81,82

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95700

BU6#,70,80,81,82

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95417

BU6#,80,81,82..RHD

RH

 1
85210-95402

BU6#,80,81,82..RHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95417

BU6#,80,81,82..RHD

RH

 1
85210-95402

BU6#,80,81,82..RHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85195-95J00

BU6#,70,80,81,82

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95J00

BU6#,70,80,81,82

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12570

BU6#,8#..RHD

RH

 1
85220-12560

BU6#,80,81,82..RHD

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-12570

BU6#,8#..RHD

RH

 1
85220-12560

BU6#,80,81,82..RHD

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12230

BU6#,80,81,82..RHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12230

BU6#,80,81,82..RHD

 2
85230 - BRACKET ASSY, WINDSHIELD WIPER
85269-95400

BU6#,8#..RHD

 1
Common parts
90099-00913
91656-40818
