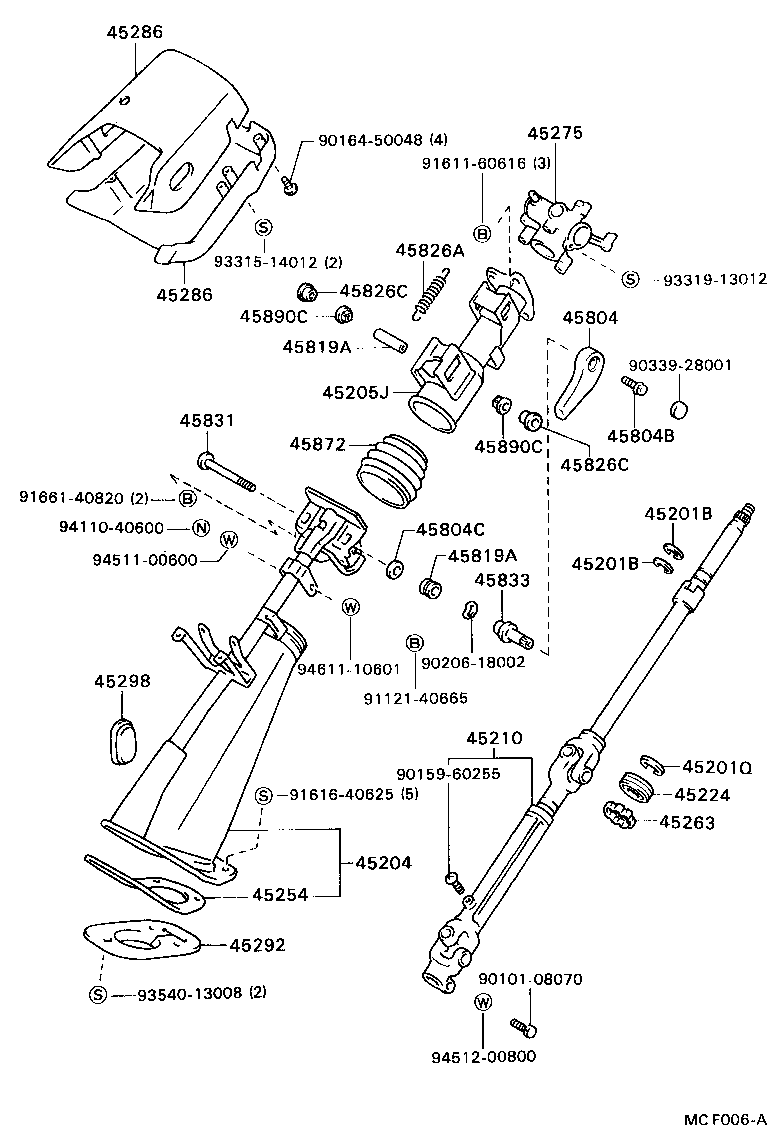

BU61R-MDBT (1987)
Toyota Dyna 200
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BU6#,70,8# T=1.20 |
2 | ||
| 90520-17269 |
BU6#,70,8# T=1.20 |
1 | ||
| 90520-17269 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 T=1.20 |
1 | ||
| 90520-17042 |
BU6#,70,8#,93 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BU6#,70,8# T=1.20 |
2 | ||
| 90520-17269 |
BU6#,70,8# T=1.20 |
1 | ||
| 90520-17269 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 T=1.20 |
1 | ||
| 90520-17042 |
BU6#,70,8#,93 T=1.20 |
2 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
BU6#,70,8# |
1 | ||
| 96152-00300 |
BU6#,70,8#,93 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-36090 |
BU60,61,80,81,82..RHD..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45204-36140 |
BU60,61,65,80,81,82..RHD..(GEN,GHD,SA) |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-36190 |
BU6#,70,8#,93..GEN,GHD,SA |
1 | ||
| 45205-36190 |
BU6#,70,8#..GEN,GHD,SA |
1 | ||
| 45205-36180 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36060 |
BU6#,70,80,81,82 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
BU6#,70,8# L=16 |
1 | ||
| 45225-26010 |
BU6#,70,8#,93 L=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36090 |
BU6#,80,81,82..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BU6#,70,8#,93 |
1 | ||
| 45263-32010 |
BU6#,70,8# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36150 |
BU6#,70,8# |
1 | ||
| 45307-36150 |
BU6#,70,8#,93 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3677006 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) BROWN,TRIM4#,UPR |
1 | ||
| 45286-3679006 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3633006 |
BU6#,8#,93..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3677006 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) BROWN,TRIM4#,UPR |
1 | ||
| 45286-3679006 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3633006 |
BU6#,8#,93..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36030 |
BU6#,8#,93..RHD |
1 | ||
| 45292-36030 |
BU6#,8#..RHD |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-36020 |
BU6#,70,8#,93 |
1 | ||
| 45298-36020 |
BU6#,70,8# |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36020 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45872-36030 |
BU6#,70,8#..GEN,GHD,SA |
1 | ||
| 45872-36030 |
BU6#,70,8#,93..GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90159-60255 | ||||
| 90164-50048 | ||||
| 91611-60616 | ||||
| 91661-40820 | ||||
| 91666-40620 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93540-13008 | ||||
| 94180-40800 | ||||
| 94512-00800 | ||||
(8708- )
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BU6#,70,8# T=1.20 |
2 | ||
| 90520-17269 |
BU6#,70,8# T=1.20 |
1 | ||
| 90520-17269 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 T=1.20 |
1 | ||
| 90520-17042 |
BU6#,70,8#,93 T=1.20 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
BU6#,70,8# T=1.20 |
2 | ||
| 90520-17269 |
BU6#,70,8# T=1.20 |
1 | ||
| 90520-17269 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 T=1.20 |
1 | ||
| 90520-17042 |
BU6#,70,8#,93 T=1.20 |
2 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
BU6#,70,8# |
1 | ||
| 96152-00300 |
BU6#,70,8#,93 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-36090 |
BU60,61,80,81,82..RHD..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45204-36140 |
BU60,61,65,80,81,82..RHD..(GEN,GHD,SA) |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-36190 |
BU6#,70,8#,93..GEN,GHD,SA |
1 | ||
| 45205-36190 |
BU6#,70,8#..GEN,GHD,SA |
1 | ||
| 45205-36180 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-36060 |
BU6#,70,80,81,82 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
BU6#,70,8# L=16 |
1 | ||
| 45225-26010 |
BU6#,70,8#,93 L=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-36090 |
BU6#,80,81,82..RHD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
BU6#,70,8#,93 |
1 | ||
| 45263-32010 |
BU6#,70,8# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-36150 |
BU6#,70,8# |
1 | ||
| 45307-36150 |
BU6#,70,8#,93 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3677006 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) BROWN,TRIM4#,UPR |
1 | ||
| 45286-3679006 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3633006 |
BU6#,8#,93..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-3677006 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) BROWN,TRIM4#,UPR |
1 | ||
| 45286-3679006 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC),BROWN,TRIM4#,UPR |
1 | ||
| 45287-3633006 |
BU6#,8#,93..RHD BROWN,TRIM4#,LWR |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-36030 |
BU6#,8#,93..RHD |
1 | ||
| 45292-36030 |
BU6#,8#..RHD |
1 | ||
| 45298 - PLUG, STEERING COLUMN COVER | ||||
| 45298-36020 |
BU6#,70,8#,93 |
1 | ||
| 45298-36020 |
BU6#,70,8# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-3601006 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) BROWN,TRIM4# |
1 | ||
| 45804B - BOLT(FOR STEERING TILT LEVER) | ||||
| 90105-10204 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-10036 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 90201-10489 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) L=47.5 |
1 | ||
| 90386-19004 |
BU60,61,80,81,82..RHD..WT..(GEN,GHD) L=14 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-06037 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) L=47.5 |
1 | ||
| 90386-19004 |
BU60,61,80,81,82..RHD..WT..(GEN,GHD) L=14 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-18018 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90386-10024 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
2 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-36010 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-36010 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-36020 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 45872-36030 |
BU6#,70,8#..GEN,GHD,SA |
1 | ||
| 45872-36030 |
BU6#,70,8#,93..GEN,GHD,SA |
1 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) OD=20 |
2 | ||
| 45890C - COLLAR(FOR TILT STEERING PAWL) | ||||
| 90389-12009 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,62,80,81,82,86..WT..(GEN,GHD) OD=20 |
2 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90159-60255 | ||||
| 90164-50048 | ||||
| 90206-18002 | ||||
| 90339-28001 | ||||
| 91121-40665 | ||||
| 91611-60616 | ||||
| 91616-40625 | ||||
| 91661-40820 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93540-13008 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-10601 | ||||
