BU61R-MDBT (1987)
Toyota Dyna 200
ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-36150 |
BU6#,70,80,81,82..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
BU6#,70,8#..5F |
1 | ||
| 90508-35004 |
BU6#,70,8#,93..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
BU6#,70,8#..5F |
1 | ||
| 90541-06008 |
BU6#,70,8#,93..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU6#,70,8#..5F |
2 | ||
| 90386-13007 |
BU6#,70,8#,93..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU6#,70,8#..5F |
2 | ||
| 90386-13007 |
BU6#,70,8#,93..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
BU85..GEN..(CBU,IV3);BU6#,70,80,81,82,86..ARL,GEN,GHD |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-36010 |
BU6#,70,8#,93..5F |
1 | ||
| 31321-36010 |
BU6#,70,8#..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
BU6#,70,8#,93..5F |
1 | ||
| 91121-51070 |
BU6#,70,8#..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BU6#,70,8#..5F |
1 | ||
| 90387-10004 |
BU6#,70,8#,93..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BU6#,70,8#,93..5F L=23.5 |
1 | ||
| 90240-08006 |
BU6#,70,8#..5F L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BU6#,70,8#..5F |
1 | ||
| 90386-08002 |
BU6#,70,8#,93..5F |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||

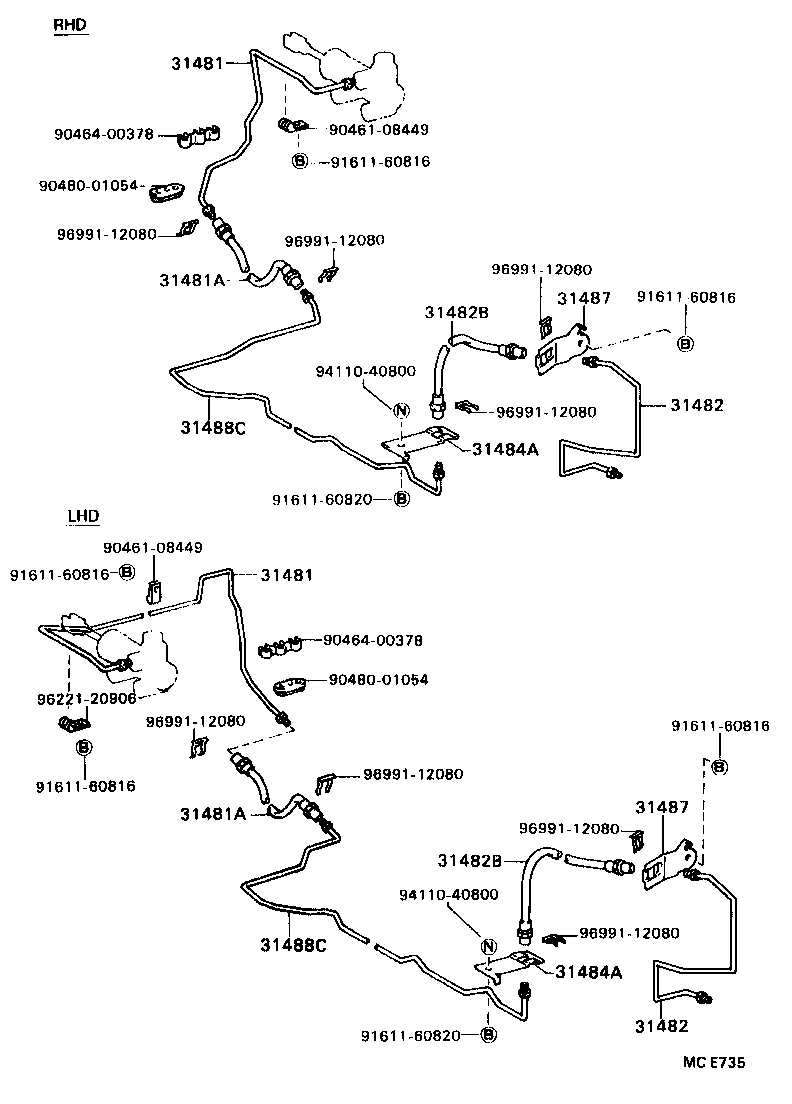

ILLUST NO. 2 OF 2(8708- )BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36360 |
BU60,61,65,80,81,82..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-36360 |
BU60,61,65,80,81,82..RHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33705 |
BU6#,70,80,81,82..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33705 |
BU6#,70,80,81,82..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36161 |
BU6#,70,8#..5F |
1 | ||
| 31482-36161 |
BU6#,70,8#,93..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-36161 |
BU6#,70,8#..5F |
1 | ||
| 31482-36161 |
BU6#,70,8#,93..5F |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 96818-50240 |
BU60,61,62,70,80,81,82..5F |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 96818-50240 |
BU60,61,62,70,80,81,82..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-36110 |
BU60,61,62,70,80,81,82..5F |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-36110 |
BU60,61,62,70,80,81,82..5F |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36150 |
BU6#,70,8#,93..5F |
1 | ||
| 31487-36150 |
BU6#,70,8#..5F |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36150 |
BU6#,70,8#,93..5F |
1 | ||
| 31487-36150 |
BU6#,70,8#..5F |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-36240 |
BU60,61,80,81,82..RHD |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-36240 |
BU60,61,80,81,82..RHD |
1 | ||
| Common parts | ||||
| 90461-08449 | ||||
| 90464-00378 | ||||
| 90480-01054 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 96221-20906 | ||||
| 96991-12080 | ||||
