BU61R-MD3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

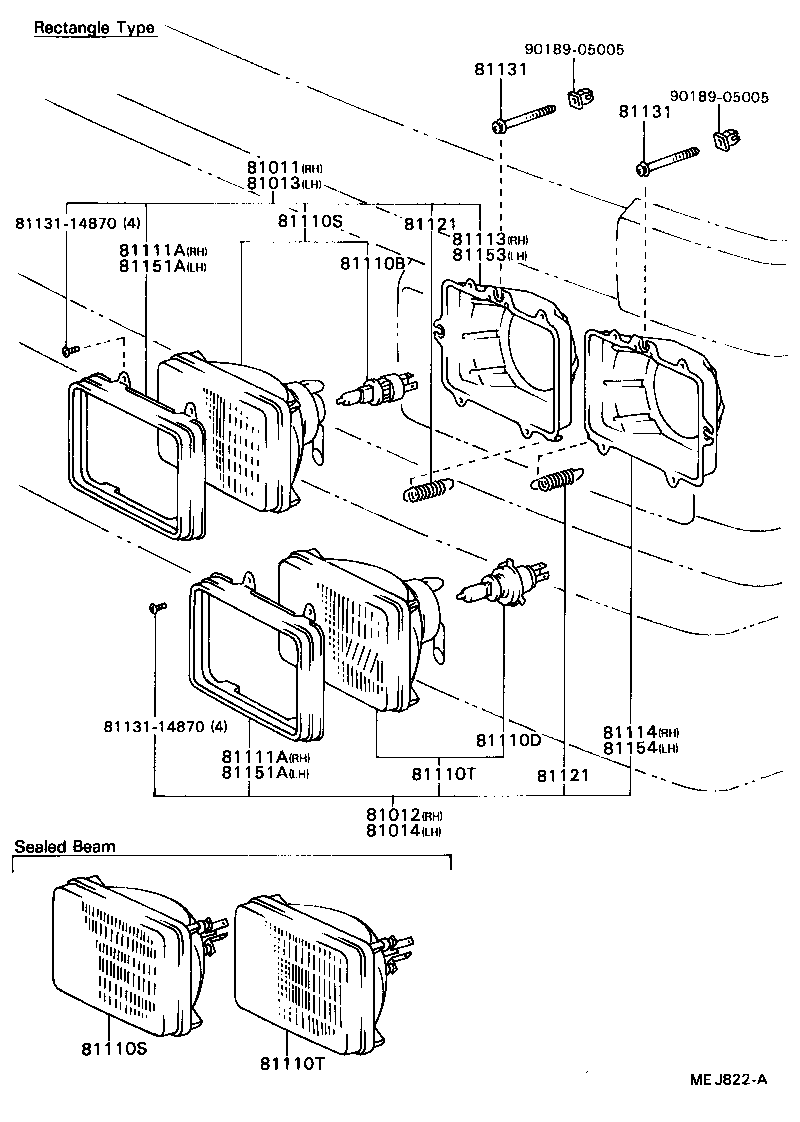

Click highlighted areas on diagram

diagram 81011 81012 81013 81014 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81111A 81113 81114 81121 81121 81131 81131 8113114870 8113114870 81151A 81151A 81153 81154 9018905005 9018905005
Part # Description Qty Price
81011 - HEADLAMP SUB-ASSY, NO.1
81011-95407

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

ROUND,WHITE

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-95409

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

ROUND,WHITE

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-95401

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

ROUND,WHITE

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-95401

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

ROUND,WHITE

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02039

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

12V 37.5W,*WB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02039

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

12V 37.5W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

12V 37.5/50W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

12V 37.5/50W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14100

BU6#,70,8#,93..GEN,GHD,SA

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-20210

BU6#,70,8#,93..GEN,GHD,SA

 1
81121 - SPRING, HEADLAMP TENSION
81121-95400

BU6#,70,8#,93..GEN,GHD,SA

LH

 2
90506-16017

BU6#,70,8#,93..GEN,GHD,SA

RH

 2
81121 - SPRING, HEADLAMP TENSION
81121-95400

BU6#,70,8#,93..GEN,GHD,SA

LH

 2
90506-16017

BU6#,70,8#,93..GEN,GHD,SA

RH

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-22170

BU6#,70,8#,93..GEN,GHD,SA

 8
81131 - SCREW, HEADLAMP ADJUSTING
81131-22170

BU6#,70,8#,93..GEN,GHD,SA

 8
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14100

BU6#,70,8#,93..GEN,GHD,SA

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-20170

BU6#,70,8#,93..GEN,GHD,SA

 1
Common parts
81131-14870
90189-05005

(8708- )

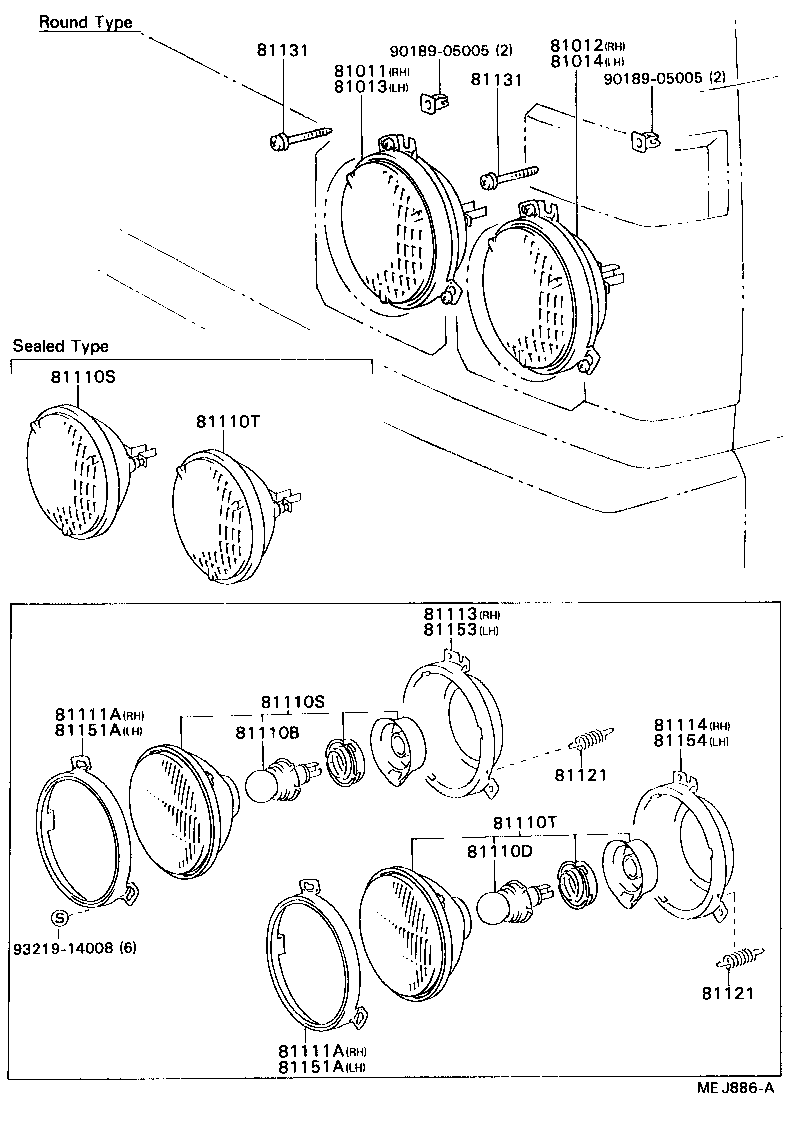

Click highlighted areas on diagram

diagram 81011 81012 81013 81014 81110B 81110D 81110S 81110S 81110T 81110T 81111A 81111A 81113 81114 81121 81121 81131 81131 81151A 81151A 81153 81154 9018905005 9018905005 9321914008
Part # Description Qty Price
81011 - HEADLAMP SUB-ASSY, NO.1
81011-95407

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

ROUND,WHITE

 1
81012 - HEADLAMP SUB-ASSY, NO.2
81012-95409

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

ROUND,WHITE

 1
81013 - HEADLAMP SUB-ASSY, TYPE 1, LH
81013-95401

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

ROUND,WHITE

 1
81014 - HEADLAMP SUB-ASSY, TYPE 2, LH
81014-95401

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

ROUND,WHITE

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02039

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

12V 37.5W,*WB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02039

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD,SA

12V 37.5W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

12V 37.5/50W,*WB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02040

BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD,SA)

12V 37.5/50W,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-14100

BU6#,70,8#,93..GEN,GHD,SA

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-20210

BU6#,70,8#,93..GEN,GHD,SA

 1
81121 - SPRING, HEADLAMP TENSION
81121-95400

BU6#,70,8#,93..GEN,GHD,SA

LH

 2
90506-16017

BU6#,70,8#,93..GEN,GHD,SA

RH

 2
81121 - SPRING, HEADLAMP TENSION
81121-95400

BU6#,70,8#,93..GEN,GHD,SA

LH

 2
90506-16017

BU6#,70,8#,93..GEN,GHD,SA

RH

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-22170

BU6#,70,8#,93..GEN,GHD,SA

 8
81131 - SCREW, HEADLAMP ADJUSTING
81131-22170

BU6#,70,8#,93..GEN,GHD,SA

 8
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-14261

BU6#,70,8#,93..GEN,GHD,SA

 2
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-14100

BU6#,70,8#,93..GEN,GHD,SA

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-20170

BU6#,70,8#,93..GEN,GHD,SA

 1
Common parts
90189-05005
93219-14008
