BU61R-MD3 (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU6#,70,80,81,82

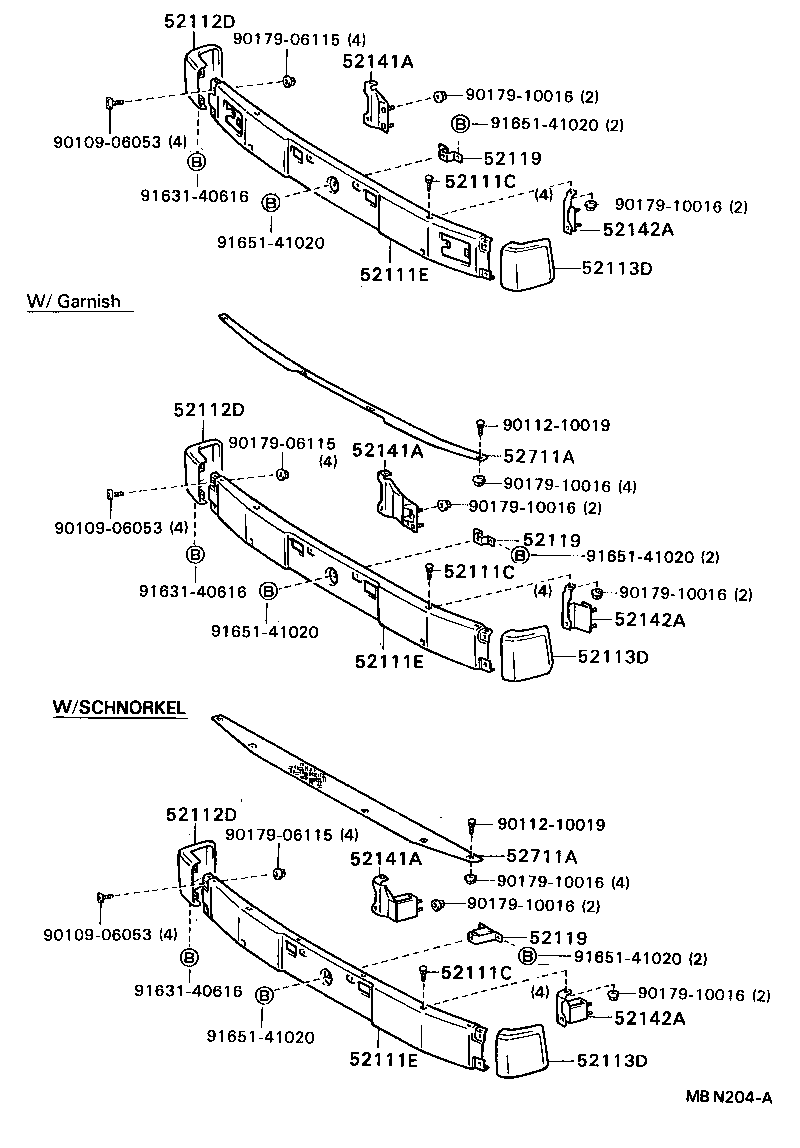

Click highlighted areas on diagram

diagram 52111C 52111C 52111C 52111E 52111E 52111E 52112D 52112D 52112D 52113D 52113D 52113D 52119 52119 52119 52141A 52141A 52141A 52142A 52142A 52142A 52711A 52711A 9010906053 9010906053 9010906053 9011210019 9011210019 9017906115 9017906115 9017906115 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9017910016 9163140616 9163140616 9163140616 9165141020 9165141020 9165141020 9165141020 9165141020 9165141020
Part # Description Qty Price
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

 8
90112-10019

BU6#,70,8#

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

 8
90112-10019

BU6#,70,8#

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

 8
90112-10019

BU6#,70,8#

 4
52111E - BAR, FRONT BUMPER
52111-9543503

BU6#,70,80,81,82

SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543403

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543703

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52111-9543603

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH & FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52111E - BAR, FRONT BUMPER
52111-9543503

BU6#,70,80,81,82

SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543403

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543703

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52111-9543603

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH & FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52111E - BAR, FRONT BUMPER
52111-9543503

BU6#,70,80,81,82

SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543403

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5 ,26H ,27H

 1
52111-9543703

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52111-9543603

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)

W(GARNISH & FOG LAMP),SILVER M,048 ,391 ,541 ,6A9 ,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

BU6#,70,8#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

BU6#,70,8#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

BU6#,70,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

BU6#,70,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

BU6#,70,8#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

BU6#,70,8#

 1
52119 - STAY, FRONT BUMPER, CENTER
52144-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52144-95400

BU6#,70,80,81,82

 1
52119 - STAY, FRONT BUMPER, CENTER
52144-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52144-95400

BU6#,70,80,81,82

 1
52119 - STAY, FRONT BUMPER, CENTER
52144-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52144-95400

BU6#,70,80,81,82

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95400

BU6#,70,80,81,82

 1
52015-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95400

BU6#,70,80,81,82

 1
52015-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95400

BU6#,70,80,81,82

 1
52015-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52016-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52142-95400

BU6#,70,80,81,82

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52016-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52142-95400

BU6#,70,80,81,82

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52016-95401

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

W(BUMPER GARNISH)

 1
52142-95400

BU6#,70,80,81,82

 1
52711A - GARNISH, FRONT BUMPER
52711-95400

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

 1
52711A - GARNISH, FRONT BUMPER
52711-95400

BU65..GEN..CBU;BU60,61,62,70,80,81,82..GEN,GHD

 1
Common parts
90109-06053
90112-10019
90179-06115
90179-10016
91631-40616
91651-41020
