BU61R-MD (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

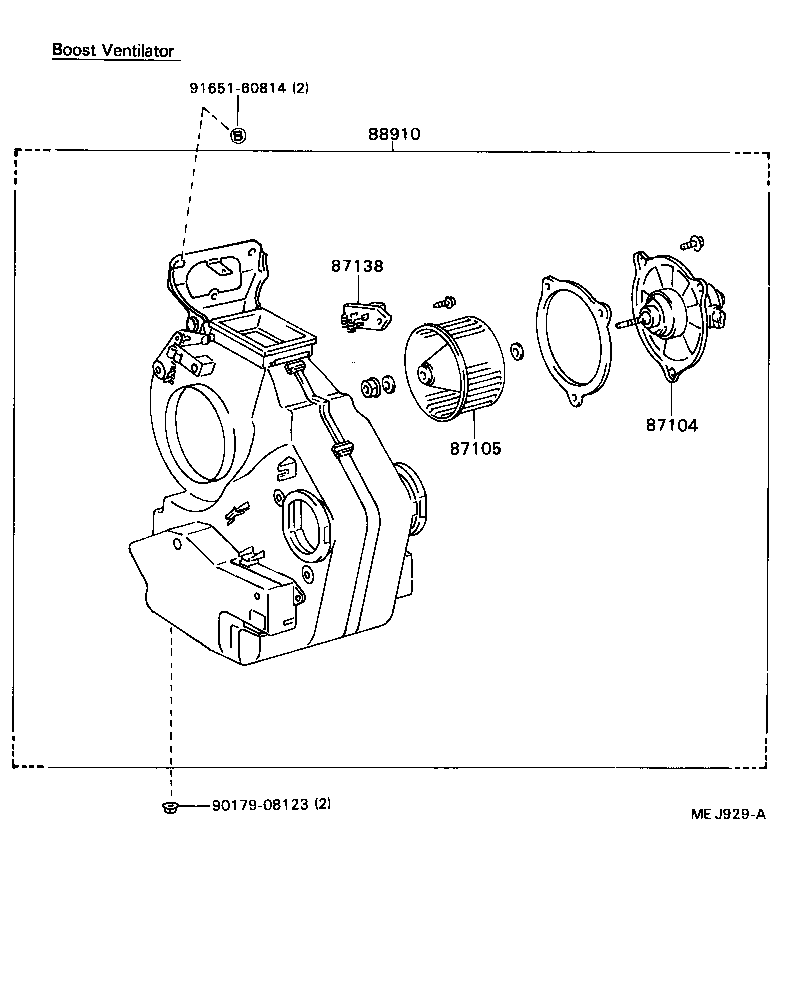

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 87104 87105 87138 88910 9017908123 9165160814
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

BU91..TD;BU60..T3..ST;BU61,66,67,70,87,94,96;BU60,65,83,84,88,91..RHD

 1
87104-95404

BU91..TD;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU91,96..ARL,SA;BU61,66,67,70,87,94;BU60,65,83,84,88..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

BU60,61,65,66,8#,9#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

BU91..TD;BU60..T3..ST;BU61,66,67,70,87,94,96;BU60,65,83,84,88,91..RHD

 1
87138-26020

BU91..TD;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU91,96..ARL,SA;BU61,66,67,70,87,94;BU60,65,83,84,88..RHD

 1
88910 - VENTILATOR ASSY, BOOST
88910-95400

BU60,61,65,83,84,87..RHD..(GEN,GHD)

 1
Common parts
90179-08123
91651-60814

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87138 9017908123 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

BU91..TD;BU60..T3..ST;BU61,66,67,70,87,94,96;BU60,65,83,84,88,91..RHD

 1
87104-95404

BU91..TD;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU91,96..ARL,SA;BU61,66,67,70,87,94;BU60,65,83,84,88..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020

BU60,61,65,66,8#,9#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95406

BU91,96..TD;BU60..T3..ST;BU91,96..ARL,SA;BU60,83,84,88..RHD;BU61,65,66,67,70,87,94

 1
87110 - HEATER ASSY
87110-95436

BU60,61,65,66,83,84,87..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

BU91..TD;BU60..T3..ST;BU61,66,67,70,87,94,96;BU60,65,83,84,88,91..RHD

 1
87138-26020

BU91..TD;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU91,96..ARL,SA;BU61,66,67,70,87,94;BU60,65,83,84,88..RHD

 1
Common parts
90179-08123
91656-40816
