BU61R-MD (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,85..T3 ; (8708- )BU61,62,65,80,81,82,93

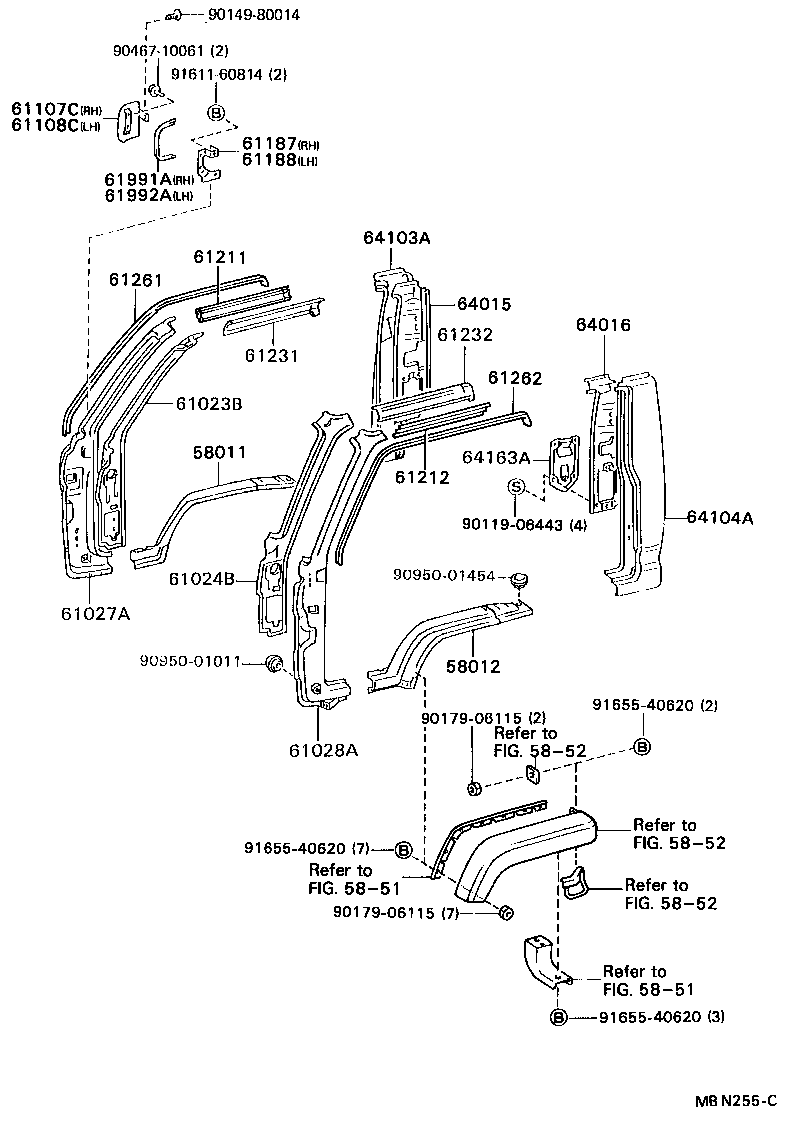

Click highlighted areas on diagram

diagram 58011 58012 5851 5851 5852 5852 5852 61023B 61024B 61027A 61028A 61107C 61108C 61187 61188 61211 61212 61231 61232 61261 61262 61991A 61992A 64015 64016 64103A 64104A 64163A 9011906443 9014980014 9017906115 9017906115 9046710061 9095001011 9095001454 9161160814 9165540620 9165540620 9165540620
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-95444

BU61,62,65,80,81,82;BU60,85..T3..(CBU,IV3)

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-95440

BU61,62,65,80,81,82;BU60,85..T3..(CBU,IV3)

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95400

BU60,62,65,8#..RHD;BU61..RHD..(CBU,IV3)

 1
61023-95400

BU61..RHD..(CBU,IV3);BU60,62,65,8#,93..RHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95400

BU60,62,65,8#..RHD;BU61..RHD..(CBU,IV3)

 1
61024-95400

BU61..RHD..(CBU,IV3);BU60,62,65,8#,93..RHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95400

BU85..RHD..(CBU,IV1);BU60,61,65,80,81,82..RHD..(GEN,GHD)

W(RADIO)

 1
61027-95401

BU6#,70,8#

 1
61027-95400

BU85..RHD..(CBU,IV1);BU60,61,65,80,81,82,93..RHD..(GEN,GHD)

W(RADIO)

 1
61027-95401

BU6#,70,8#,93

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95400

BU6#,70,8#

 1
61028-95400

BU6#,70,8#,93

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95403

BU60,85..T3..(CBU,IV3);BU61,62,65,70,80,81,82..CBU,IV3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95403

BU60,85..T3..(CBU,IV3);BU61,62,65,70,80,81,82..CBU,IV3

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95405

BU60,62,65,80,81,82..RHD..WT;BU61,85..RHD..(T1,T3)..(CBU,IV3)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95406

BU60,62,65,80,81,82..RHD..WT;BU61,85..RHD..(T1,T3)..(CBU,IV3)

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95407

BU6#,8#..CBU,IV3

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95407

BU6#,8#..CBU,IV3

 1
64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH
64015-95400

BU60..T3;BU61,62,65,80,81,82..(GEN,GHD,SA)..(CBU,IV3)

 1
64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH
64016-95400

BU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD,SA)..(CBU,IV3)

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-95401

BU60..T3;BU61,62,65,80,81,82,85..(GEN,GHD,SA)..(CBU,IV3)

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-95401

BU60..T3;BU61,62,65,80,81,82,85..(GEN,GHD,SA)..(CBU,IV3)

 1
64163A - COVER, BACK CORNER, INNER
64163-95403

BU65..GEN..CBU;BU60,61,62,80,81,82,86..(GEN,GHD,SA)..(CBU,IV3)

 2
Common parts
90119-06443
90149-80014
90179-06115
90467-10061
90950-01011
90950-01454
91611-60814
91655-40620
Linked diagrams
5851
5852
