BU61R-MD (1987)
Toyota Dyna 200

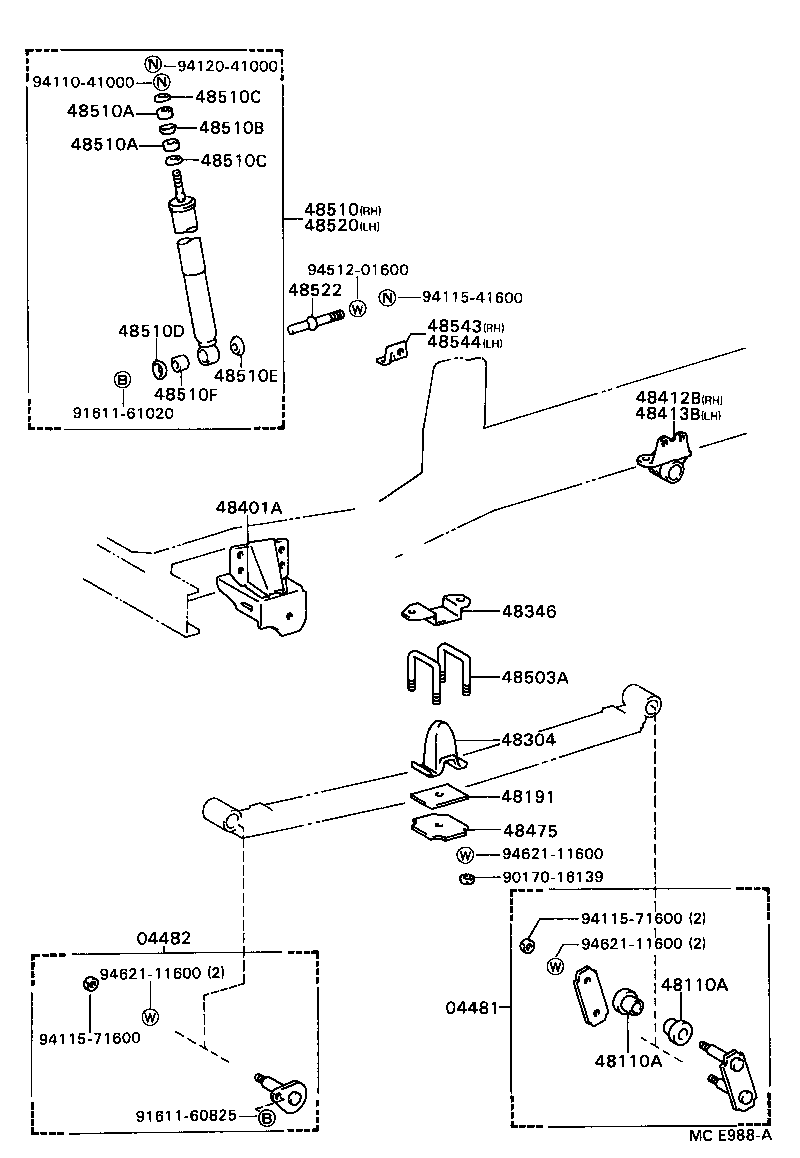

ILLUST NO. 1 OF 2(8708- )BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36070 |
BU6#,70,80,81,82 |
1 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36010 |
BU6#,70,80,81,82 |
1 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,80,81,82 |
4 | ||
| 90385-23037 |
BU6#,70,80,81,82 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU6#,70,80,81,82 |
4 | ||
| 90385-23037 |
BU6#,70,80,81,82 |
8 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
BU6#,70;BU81..SA |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36150 |
BU6#,70,80,81,82,85 |
2 | ||
| 48304-36150 |
BU6#,70,80,81,82,85,93 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36040 |
BU60,61,62,70,80,81,82 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48412-36120 |
BU60,61,62,70,80,81,82 LH |
1 | ||
| 48411-36120 |
BU60,61,62,70,80,81,82 RH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36050 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36050 |
BU60,61,62,70,80,81,82 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU6#,70,8# |
1 | ||
| 48475-36070 |
BU6#,70,8#,93 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16020 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81..(ARL,GEN,SA)..(CBU,IV3) L=95 |
4 | ||
| 90117-16093 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81..(ARL,GEN,SA)..(CBU,IV3) L=105 |
1 | ||
| 90117-16047 |
BU61..ST..(CBU,IV3) L=115,THAILAND SPEC |
7 | ||
| 90117-16017 |
BU61..ST..(CBU,IV3) L=130 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39505 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81..CBU,IV3 MARK 48511-36150 |
1 | ||
| 48511-39515 |
BU61..ST..(CBU,IV3) MARK 48511-36160,THAILAND SPEC |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,70,8# |
4 | ||
| 90948-01003 |
BU6#,70,8#,93 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU6#,70,8# |
4 | ||
| 90948-01003 |
BU6#,70,8#,93 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU6#,70,8#,93 |
2 | ||
| 90948-02007 |
BU6#,70,8# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,70,8#,93 |
4 | ||
| 90948-02002 |
BU6#,70,8# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU6#,70,8#,93 |
4 | ||
| 90948-02002 |
BU6#,70,8# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16009 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39505 |
BU62..ST;BU62,65..RHD;BU60,61,70,80,81..CBU,IV3 MARK 48511-36150 |
1 | ||
| 48511-39515 |
BU61..ST..(CBU,IV3) MARK 48511-36160,THAILAND SPEC |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 |
2 | ||
| Common parts | ||||
| 90170-16139 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 94110-41000 | ||||
| 94115-41600 | ||||
| 94115-71600 | ||||
| 94120-41000 | ||||
| 94512-01600 | ||||
| 94621-11600 | ||||

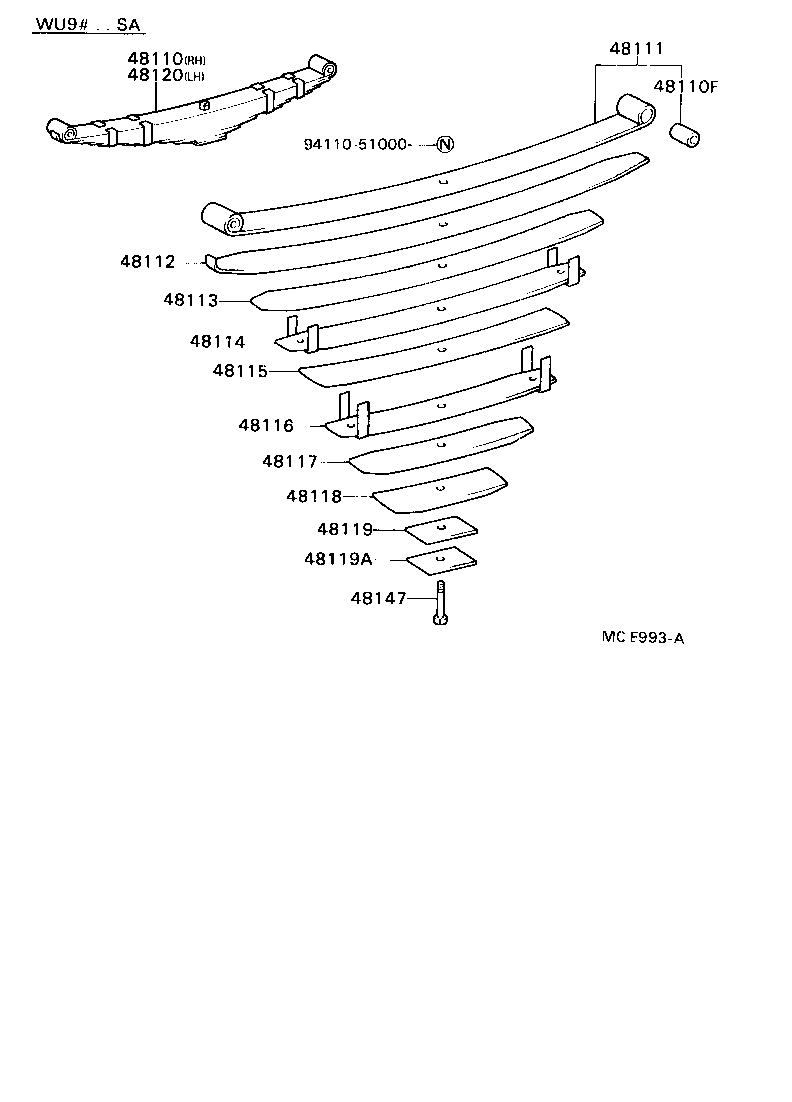

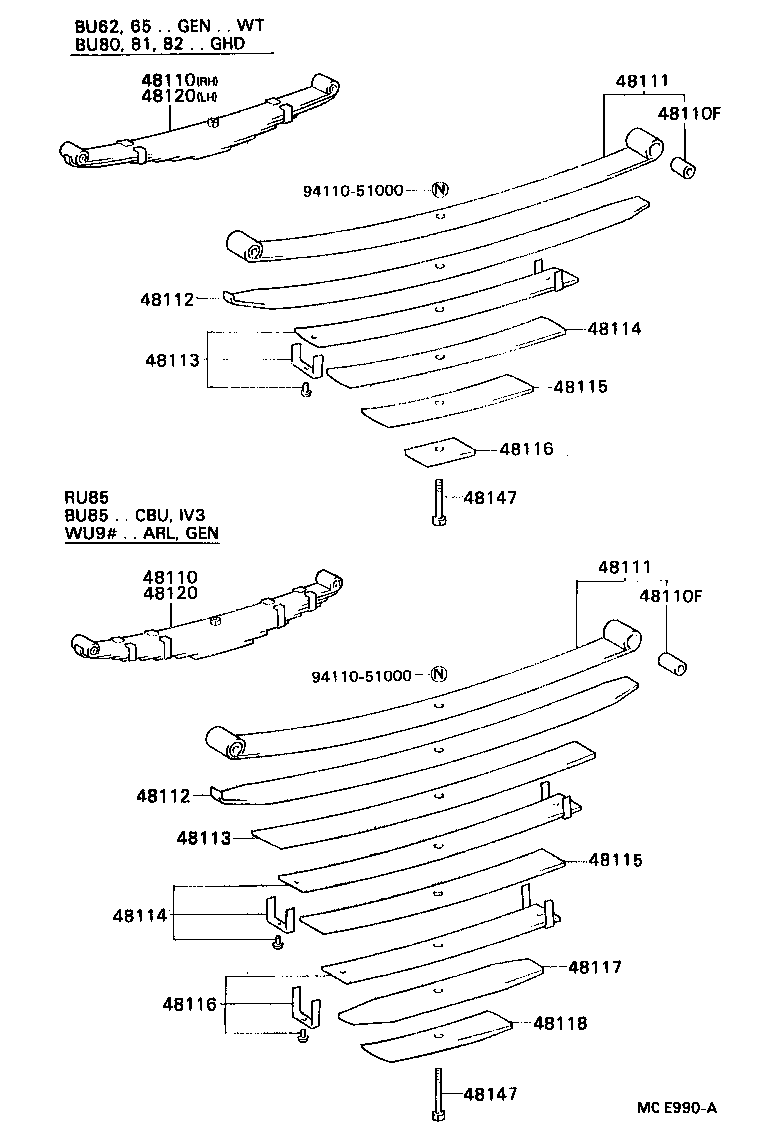

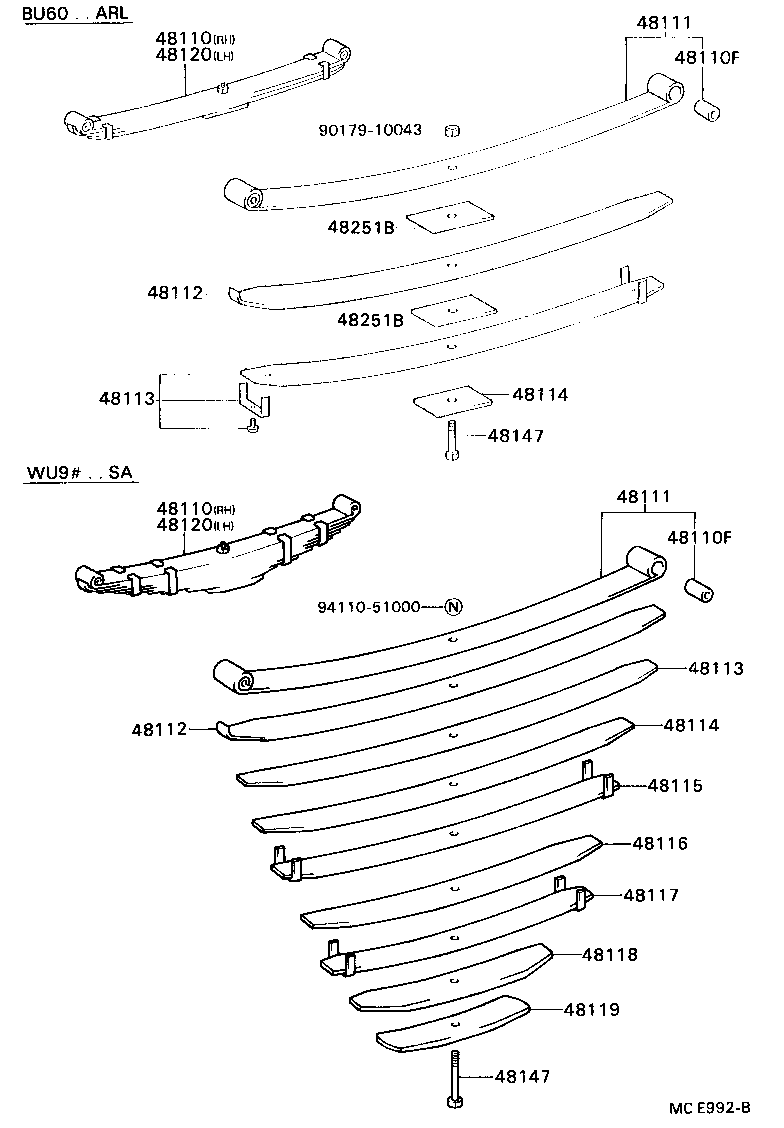

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THILAND SPEC |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THILAND SPEC |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THILAND SPEC |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THILAND SPEC |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| Common parts | ||||
| 90179-10043 | ||||
| 94110-51000 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B230 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU6#,70,80,81,82 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48101-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48101-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48101-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48112-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48112-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48112-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48102-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48102-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48102-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48114-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48114-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48114-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-3B200 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) DRIVER SEAT SIDE |
1 | ||
| 48115-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) PASSENGER SEAT SIDE |
1 | ||
| 48115-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC,DRIVER SEAT SIDE |
1 | ||
| 48115-3B240 |
BU61..ST..(CBU,IV3) THAILAND SPEC,PASSENGER SEAT SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THILAND SPEC |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48116-36620 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B210 |
BU60,61,62..RHD..(T1,T3)..(CBU,IV3) 5-LEAF |
1 | ||
| 48110-3B240 |
BU61..ST..(CBU,IV3) 7-LEAF,THAILAND SPEC |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU62..ST;BU62..ARL;BU60,61,70..CBU,IV3 |
2 | ||
| 48147-3B230 |
BU61..ST..(CBU,IV3) THAILAND SPEC |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
