BU61L-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,61..T3

Click highlighted areas on diagram

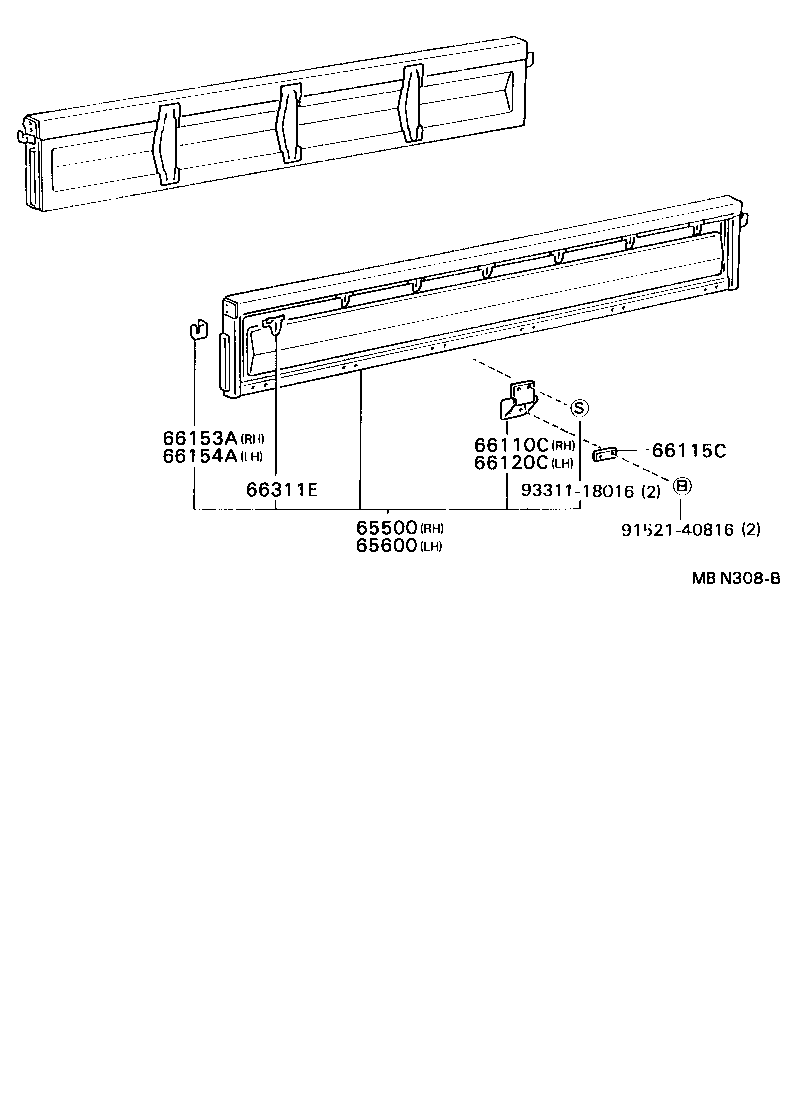

diagram 65500 65600 66110C 66115C 66120C 66153A 66154A 66311E 9152140816 9331118016
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95432

BU60,61..T3..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95424

BU60,61..T3..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
66110-95409

BU60,61..T3..CBU

1ST,6TH

 2
66110-95407

BU60,61..T3..CBU

2ND,3RD,4TH,5TH

 4
66115C - RETAINER, GATE HINGE
66115-95012

BU60,61..T3..CBU

 12
66120C - HINGE ASSY, SIDE GATE, NO.1 LH
66110-95409

BU60,61..T3..CBU

6TH,7TH

 2
66110-95407

BU60,61..T3..CBU

2ND,3RD,4TH,5TH

 4
66153A - LATCH, TAIL GATE FEMALE, RH
66153-95111

BU60,61..T3..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-95111

BU60,61..T3..CBU

 1
66311E - HOOK, ROPE
66311-95400

BU60,61..T3..CBU

 7
Common parts
91521-40816
93311-18016
