BU61L-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU60,61..T3

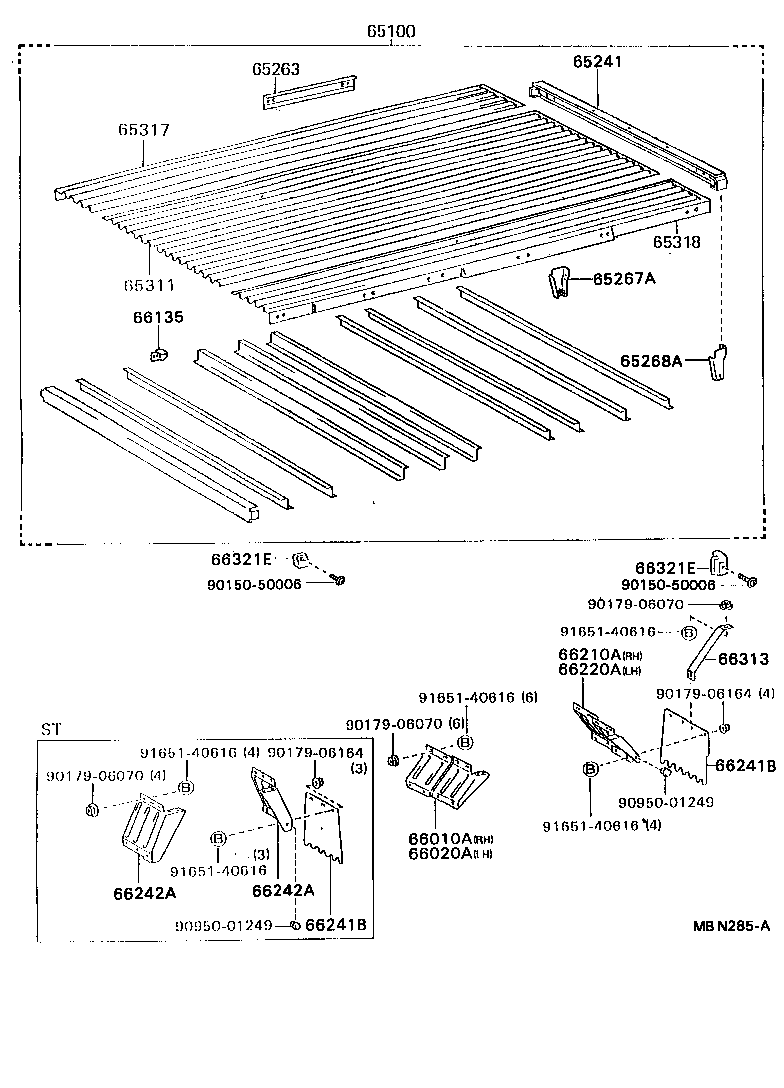

Click highlighted areas on diagram

diagram 65100 65241 65263 65267A 65268A 65311 65317 65318 66010A 66020A 66135 66210A 66220A 66241B 66241B 66242A 66242A 66313 66321E 66321E 9015050006 9015050006 9017906070 9017906070 9017906070 9017906164 9017906164 9095001249 9095001249 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-95433

BU60,61..WT..CBU

 1
65100-95434

BU60,61..WT..CBU

W(REAR SCHNORKEL TNF PRE-CLEANER)

 1
65241 - SILL, REAR CROSS
65240-95420

BU60,61..WT..CBU

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-95404

BU60,61..T3..CBU

 2
65267A - BRACKET, GATE RUBBER BUMPER, RH
65267-95401

BU60,61..T3..CBU

 1
65268A - BRACKET, GATE RUBBER BUMPER, LH
65268-95401

BU60,61..T3..CBU

 1
65311 - PANEL, FLOOR, CENTER
65311-95409

BU60,61..T3..CBU

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95415

BU60,61..WT..CBU

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95416

BU60,61..WT..CBU

 1
66010A - FENDER ASSY, REAR NO.2 RH
66201-95401

BU60,61..WT..CBU

 1
66020A - FENDER ASSY, REAR NO.2 LH
66202-95401

BU60,61..WT..CBU

 1
66135 - GUSSET, GATE HINGE, RH
66135-95402

BU60,61..T3..CBU

 4
66210A - FENDER ASSY, REAR NO.1 RH
66210-95404

BU60,61..WT..CBU

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-95404

BU60,61..WT..CBU

 1
66241B - BAFFLE, RUBBER
66241-95405

BU60,61..WT..CBU

RH

 1
66241-95401

BU60,61..WT..CBU

LH

 1
66241B - BAFFLE, RUBBER
66241-95405

BU60,61..WT..CBU

RH

 1
66241-95401

BU60,61..WT..CBU

LH

 1
66313 - SUPPORT, REAR FENDER
66235-95404

BU60,61..WT..CBU

 2
66321E - BUMPER, GATE RUBBER
66321-95407

BU60,61..T3..CBU

TAIL GATE

 2
66321-95012

BU60,61..T3..CBU

SIDE GATE

 2
66321E - BUMPER, GATE RUBBER
66321-95407

BU60,61..T3..CBU

TAIL GATE

 2
66321-95012

BU60,61..T3..CBU

SIDE GATE

 2
Common parts
90150-50006
90179-06070
90179-06164
90950-01249
91651-40616
