BU61L-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )B

Click highlighted areas on diagram

diagram 12251 9017906070
Part # Description Qty Price
Common parts
90179-06070

(8708- )11B,13B

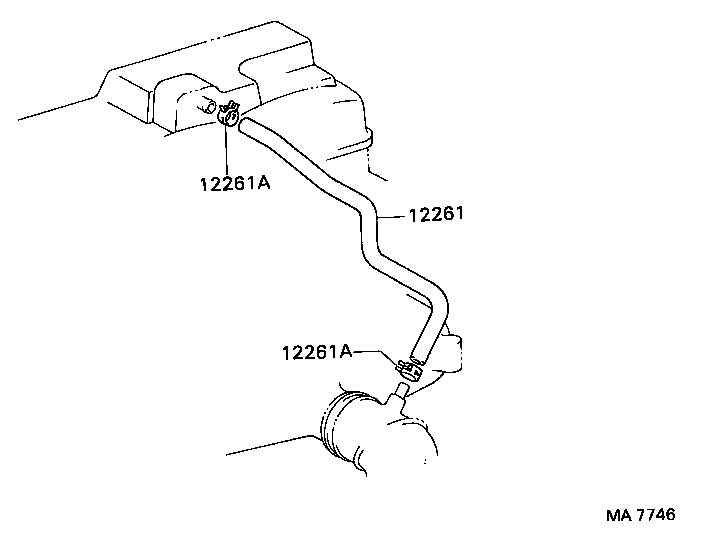

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-56010

11B,13B..BU61,62,65,81,82,85,86

 1
12261-56010

11B,13B..BU61,62,65,81,82,85,86,93

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23001

11B,13B..BU61,62,65,81,82,85,86

 2
90467-23001

11B,13B..BU61,62,65,81,82,85,86,93

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23001

11B,13B..BU61,62,65,81,82,85,86

 2
90467-23001

11B,13B..BU61,62,65,81,82,85,86,93

 2
