BU60R-MDPQ (1988)
Toyota Dyna 200

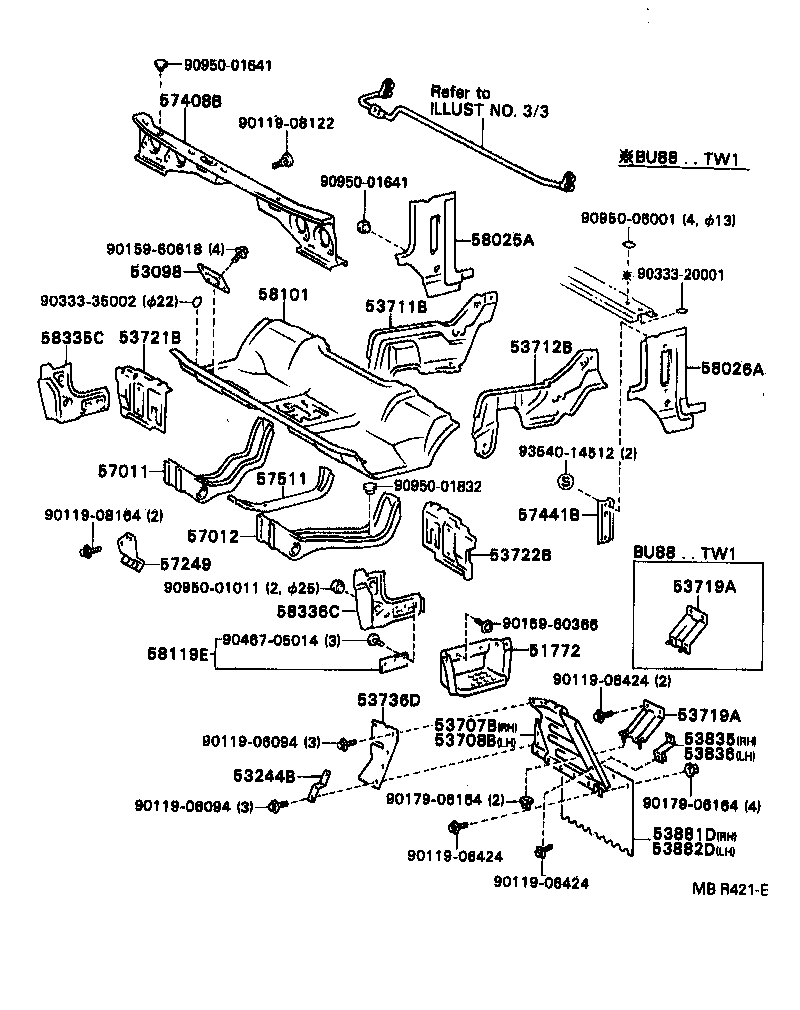

ILLUST NO. 1 OF 3(8808- )TW1 ; (8808- )BU70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51771-95406 |
BU6#,70,8#,9# RH |
1 | ||
| 51772-95406 |
BU6#,70,8#,9# LH |
1 | ||
| 51772-95406 |
BU88..TW1;BU6#,70,83,84,87 LH |
1 | ||
| 51772-95406 |
BU6#,70,83,84,87 LH |
1 | ||
| 51771-95406 |
BU6#,70,83,84,87 RH |
1 | ||
| 51771-95406 |
BU88..TW1;BU6#,70,83,84,87 RH |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95405 |
BU60..TW1 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95404 |
BU60..TW1 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-95410 |
BU6#,70,83,84,87 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-95414 |
BU65;BU60,61,66,83,84,87..RHD |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-92600 |
BU70;BU60..TW1 |
2 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-92600 |
BU70;BU60..TW1 |
2 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-95402 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-95403 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95401 |
BU60..TW1 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95401 |
BU60..TW1 |
1 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-95400 |
BU6#,70,8#,9# |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-95405 |
BU60,88..TW1..ARL |
1 | ||
| 57012-95405 |
BU60..ARL |
1 | ||
| 57012-92602 |
BU70;BU60,88..TW1 |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-95400 |
BU60,61,65,66,8#,9#..RHD..5F |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-95427 |
BU60,61,65,66..ARL |
1 | ||
| 57408-37020 |
BU60,61,65,66..ARL |
1 | ||
| 57441B - COVER, FLOOR SIDE RAIL PLATE | ||||
| 57441-92600 |
BU60,88..TW1 |
2 | ||
| 57441-92600 |
BU60..TW1 |
2 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-37010 |
BU60,88..TW1 |
1 | ||
| 58025-95400 |
BU60,88..TW1 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-95401 |
BU60,88..TW1 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95448 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
BU6#,70,8#,9# |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-95402 |
BU6#,70,8#,9# |
1 | ||
| 58335-95401 |
BU66..T3;BU60,61,65,67,70,8#,9#..DSL |
1 | ||
| 58335-95402 |
BU60..ST;BU88,9#..DSL;BU60..LHD..WT;BU61,65,66,67,70,83,84..LHD |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-95402 |
BU6#,70,8#,9# |
1 | ||
| 58336-95401 |
BU66..T3;BU60,61,65,67,70,8#,9#..DSL |
1 | ||
| 58336-95402 |
BU6#,70,8#,9#..DSL |
1 | ||
| Common parts | ||||
| 90119-06094 | ||||
| 90119-06424 | ||||
| 90119-08122 | ||||
| 90119-08164 | ||||
| 90159-60366 | ||||
| 90159-60618 | ||||
| 90179-06164 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-05014 | ||||
| 90950-01011 | ||||
| 90950-01641 | ||||
| 90950-01832 | ||||
| 90950-06001 | ||||
| 93540-14512 | ||||
ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-95400 |
BU6#,70,83,84,87 |
2 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58213-95418 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95415 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-95400 |
BU6#,70,83,84,87 |
2 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95423 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95415 |
BU60,61,65,66..ARL |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
BU6#,70,8#,9#..DSL |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
BU6#,70,8#,9# |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-95402 |
BU6#,70,8#,9# |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
BU6#,70,8#,9# |
1 | ||
| 59260 - LOCK ASSY, ENGINE COVER | ||||
| 59260-95400 |
BU60,61,65,66,88,91..ARL |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570401 |
BU60,61,65,66..ARL BLACK,TRIM4# |
1 | ||
| 71901-9570403 |
BU6#..ARL SHADOW GRAY,TRIM4# |
1 | ||
| 71901-9570401 |
BU60,61,65,66..ARL BLACK,TRIM1# |
1 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
BU60,61,65,66,8#,9#..RHD |
2 | ||
| 72127C - RETAINER, SEAT TRACK, REAR RH | ||||
| 72127-95400 |
BU60,61,65,66,8#,9#..RHD |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90333-35002 | ||||
| 90506-08003 | ||||
| 90540-06004 | ||||
| 90541-09126 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 93240-16016 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95412 |
BU60,61,65,66..5F..ARL |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95412 |
BU60,61,65,66..5F..ARL |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95412 |
BU60,61,65,66..5F..ARL |
1 | ||
| Common parts | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90179-08056 | ||||
| 94180-41000 | ||||
