BU60R-MDPQ (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )BU6#,70,80,81,82

Click highlighted areas on diagram

diagram 87205 87208 87240 87240 8724195400 8724195400 8724195400 8724195401 87245A 87245B 87245B 87245E 87246A 87246A 87246E 87251 9017908065 9017908065 9046024039 9046024039 9046024039 9046024039 9046110240 9046110240 9046110240 9161140820 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9165640816 9165640816 9165640816 9411040800 9411040800 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU65..IV3;BU6#,81,85..ARL,SA

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95417

BU60..ARL

W(RR HEATER),NO.1

 1
87208-95416

BU60..ARL

W(RR HEATER),NO.2

 1
87208-95409

BU65..IV3;BU6#,81..ARL,SA

NO.1

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

BU6#,81,85..ARL,SA

 1
87240 - VALVE ASSY, HEATER WATER
87240-95407

BU6#,81,85..ARL,SA

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU6#,81..ARL,SA

*H,L=680

 1
99556-30980

BU6#,81..ARL,SA

*H,L=980

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU6#,81..ARL,SA

*H,L=680

 1
99556-30980

BU6#,81..ARL,SA

*H,L=980

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

BU65..IV3;BU6#,81,85..ARL,SA

*H,L=60

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

BU65..IV3;BU6#,81..ARL,SA

L=300

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU65..IV3;BU6#,81,85..ARL,SA

FRONT

 1
87251-29020

BU60,85,86..RHD..TW1

REAR

 1
Common parts
87241-95400
87241-95401
90179-08065
90460-24039
90461-10240
91611-40820
91611-60816
91611-60820
91656-40816
94110-40800
96112-10250

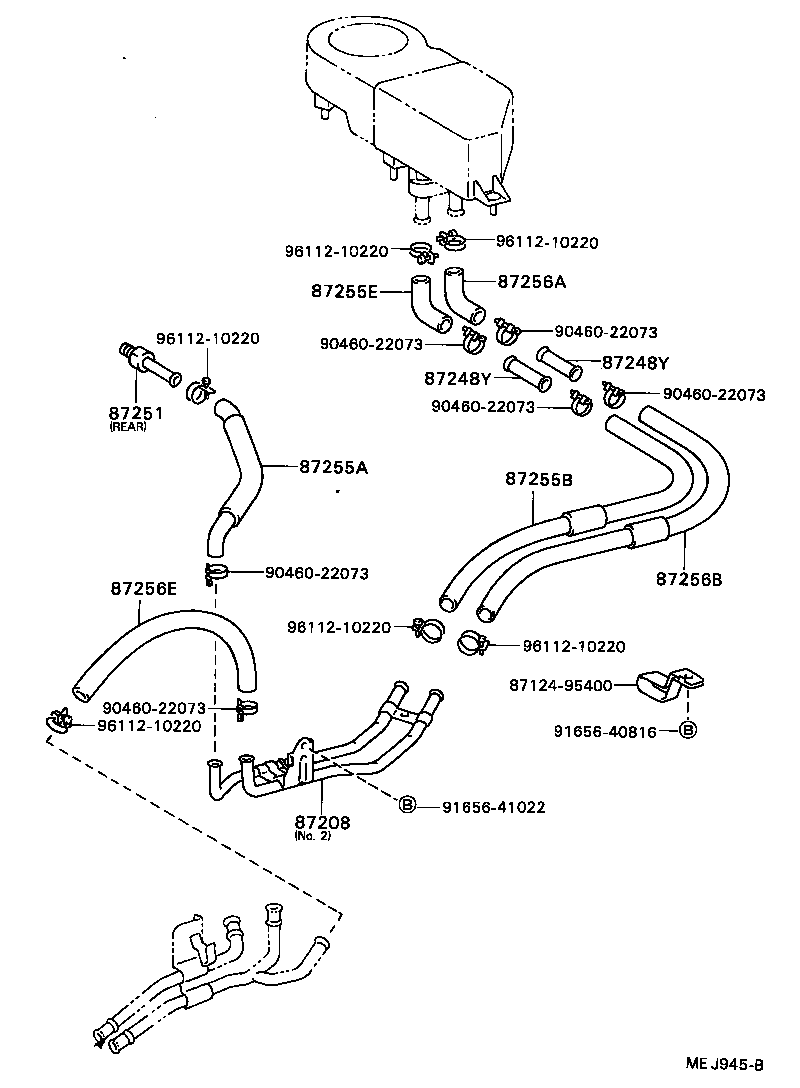

ILLUST NO. 2 OF 2(8708- )BU60..TW1

Click highlighted areas on diagram

diagram 8712495400 87208 87248Y 87248Y 87251 87255A 87255B 87255E 87256A 87256B 87256E 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9165640816 9165641022 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95417

BU60..ARL

W(RR HEATER),NO.1

 1
87208-95416

BU60..ARL

W(RR HEATER),NO.2

 1
87208-95409

BU65..IV3;BU6#,81..ARL,SA

NO.1

 1
87248Y - PIPE, HEATER WATER, NO.2
87248-95401

BU60..ARL

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-95401

BU60..ARL

 2
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU65..IV3;BU6#,81,85..ARL,SA

FRONT

 1
87251-29020

BU60,85,86..RHD..TW1

REAR

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95474

BU60..ARL

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95479

BU60..ARL

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600

BU60..ARL

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95476

BU60..ARL

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20480

BU60..ARL

*H,L=480

 1
Common parts
87124-95400
90460-22073
91656-40816
91656-41022
96112-10220
