BU60R-MDPQ (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

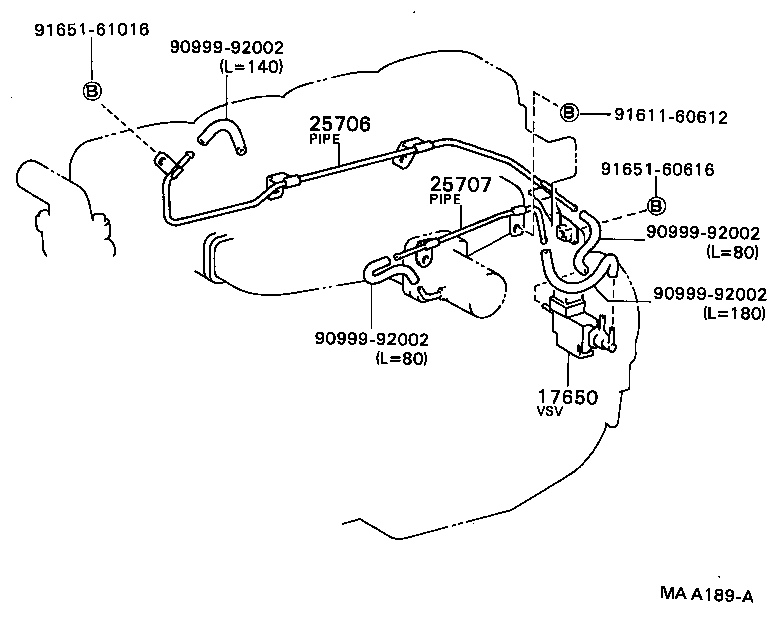

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8708- )B

Click highlighted areas on diagram

diagram 17650 25706 25707 9099992002 9099992002 9099992002 9099992002 9161160612 9165160616 9165161016
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12022

B..BU60,70,80

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-56012

B,11B,13B..BU6#,70,8#,93

 1
25706-56012

B,11B,13B..BU6#,70,8#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-56010

B..BU60,70,80

 1
Common parts
90999-92002
91611-60612
91651-60616
91651-61016
