BU60R-MDBT3 (1988)
Toyota Dyna 200
(8808- )
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3612006 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),BROWN,TRIM4# |
1 | ||
| 45100-36110B0 |
BU91..ARL;BU91,96..TD;BU66..T3..TB;BU60,61,65,67,70,8#,94 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-3611006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 2SPOKE,POLYPROPYLENE,BROWN,TRIM4# |
1 | ||
| 45100-36120B0 |
BU96..LHD;BU91..ARL;BU65,91..CBU;BU91..LHD..IV3;BU66,88..(T3,TW1)..TB..(CBU,IV3);BU60,61,67,70,83,84,87..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45100-36120B0 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-36010 |
BU6#,70,8#,94;BU91,96..ARL,GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3610006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 BROWN,TRIM4# |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-36010 |
BU6#,70,8#,94;BU91,96..ARL,GEN |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93510-13010 | ||||
(8808- )
2-SPOKE,URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3612006 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),BROWN,TRIM4# |
1 | ||
| 45100-36110B0 |
BU91..ARL;BU91,96..TD;BU66..T3..TB;BU60,61,65,67,70,8#,94 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-3611006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 2SPOKE,POLYPROPYLENE,BROWN,TRIM4# |
1 | ||
| 45100-36120B0 |
BU96..LHD;BU91..ARL;BU65,91..CBU;BU91..LHD..IV3;BU66,88..(T3,TW1)..TB..(CBU,IV3);BU60,61,67,70,83,84,87..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45100-36120B0 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-36010 |
BU6#,70,8#,94;BU91,96..ARL,GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3610006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 BROWN,TRIM4# |
1 | ||
| 45176 - RING, HORN CONTACT | ||||
| 45176-36010 |
BU6#,70,8#,94;BU91,96..ARL,GEN |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3601106 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD BROWN,TRIM4# |
1 | ||
| 45180-36011B0 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD GRAY,TRIM1# |
1 | ||
| 45180-36011B0 |
BU96..LHD;BU91..ARL;BU65,91..CBU;BU88..CBU,IV3;BU91..LHD..IV3;BU60,61,66,67,70,83,84,87..ARL,GEN,GHD GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 93315-14016 | ||||
| 93510-14012 | ||||

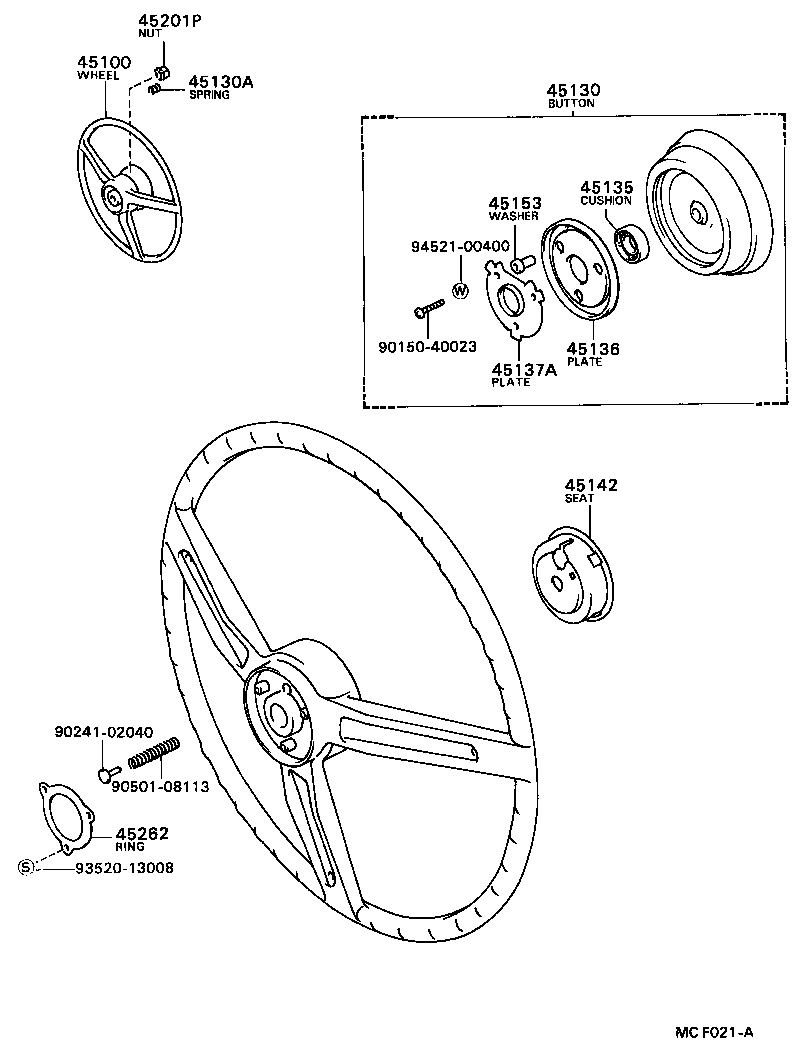

(8808- )
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3612006 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),BROWN,TRIM4# |
1 | ||
| 45100-36110B0 |
BU91..ARL;BU91,96..TD;BU66..T3..TB;BU60,61,65,67,70,8#,94 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-3611006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 2SPOKE,POLYPROPYLENE,BROWN,TRIM4# |
1 | ||
| 45100-36120B0 |
BU96..LHD;BU91..ARL;BU65,91..CBU;BU91..LHD..IV3;BU66,88..(T3,TW1)..TB..(CBU,IV3);BU60,61,67,70,83,84,87..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45100-36120B0 |
BU65..CBU;BU88..CBU,IV3;BU60,61,66,67,70,83,84,87,91,96..ARL,GEN,GHD W(2-SPOKE URETHANE),GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3610006 |
BU91..ARL;BU91,96..TD;BU6#,70,8#,94 BROWN,TRIM4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90150-40023 | ||||
| 90241-02040 | ||||
| 90501-08113 | ||||
| 93520-13008 | ||||
| 94521-00400 | ||||
