BU60R-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

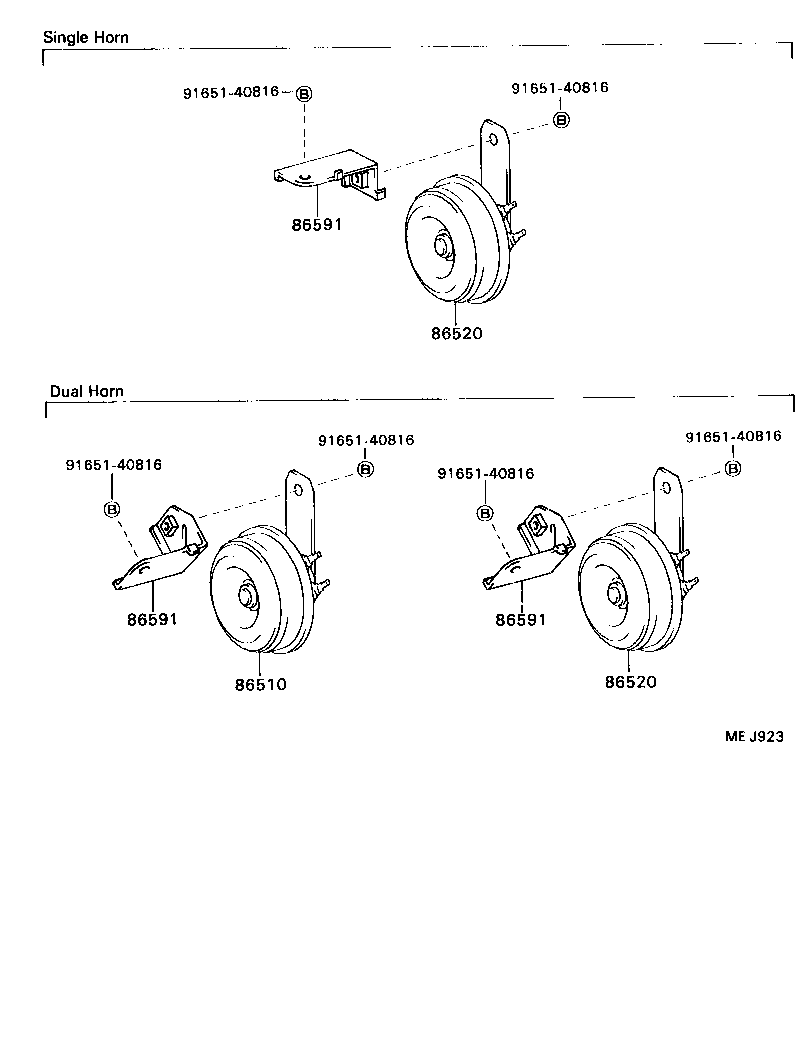

Click highlighted areas on diagram

diagram 86510 86520 86520 86591 86591 86591 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-95421

BU60..T3..ST;BU81..LHD..IV3;BU61,62,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD)

W(MW/SW)

 1
86520-95417

BU60..T3..ST;BU81..LHD..IV3;BU61,62,70,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD)

W(HEAVY DUTY HORN)

 1
86520-95423

BU65..CBU;BU60,61,62,70,80,81,82..ARL,GEN,GHD

 1
86520 - HORN ASSY, LOW PITCHED
86520-95421

BU60..T3..ST;BU81..LHD..IV3;BU61,62,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD)

W(MW/SW)

 1
86520-95417

BU60..T3..ST;BU81..LHD..IV3;BU61,62,70,82..GEN,GHD;BU60,65,80,81..RHD..(GEN,GHD)

W(HEAVY DUTY HORN)

 1
86520-95423

BU65..CBU;BU60,61,62,70,80,81,82..ARL,GEN,GHD

 1
86591 - BRACKET, HORN
86591-95407

BU65..CBU;BU60,61,62,70,80,81,82..ARL,GEN,GHD

 1
86591 - BRACKET, HORN
86591-95407

BU65..CBU;BU60,61,62,70,80,81,82..ARL,GEN,GHD

 1
86591 - BRACKET, HORN
86591-95407

BU65..CBU;BU60,61,62,70,80,81,82..ARL,GEN,GHD

 1
Common parts
91651-40816
