BU60R-MDBT (1987)
Toyota Dyna 200

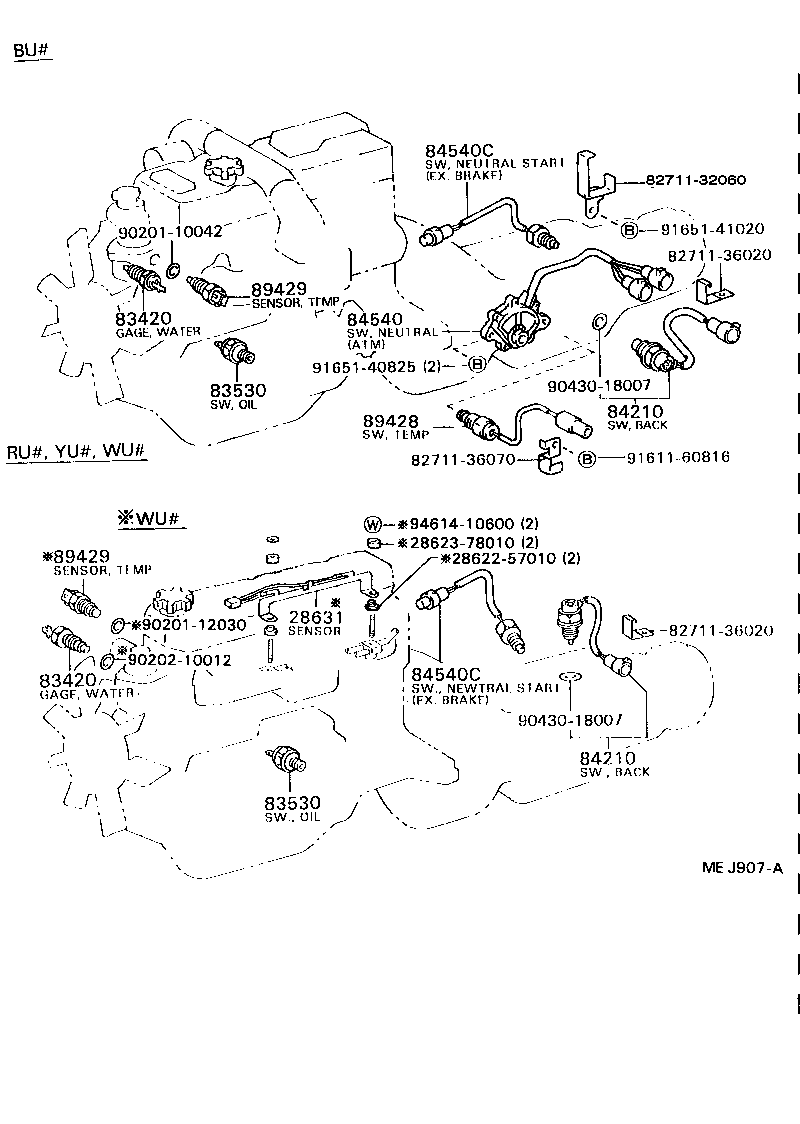

ILLUST NO. 1 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BU6#,70,8#,93 |
1 | ||
| 83420-20020 |
BU6#,70,8# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BU6#,70,8#,93 |
1 | ||
| 83420-20020 |
BU6#,70,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BU6#,70,8#,93 |
1 | ||
| 83530-14030 |
BU6#,70,8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BU6#,70,8#,93 |
1 | ||
| 83530-14030 |
BU6#,70,8# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BU6#,70,8#..5F |
1 | ||
| 84210-60021 |
BU6#,70,8#,93..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
BU6#,70,8#..5F |
1 | ||
| 84210-60021 |
BU6#,70,8#,93..5F |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36050 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36050 |
BU62..GEN;BU65..GEN..CBU;BU60,61,80,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 28622-57010 | ||||
| 28623-78010 | ||||
| 82711-32060 | ||||
| 82711-36020 | ||||
| 82711-36070 | ||||
| 90201-10042 | ||||
| 90201-12030 | ||||
| 90202-10012 | ||||
| 90430-18007 | ||||
| 91611-60816 | ||||
| 91651-40825 | ||||
| 91651-41020 | ||||
| 94614-10600 | ||||

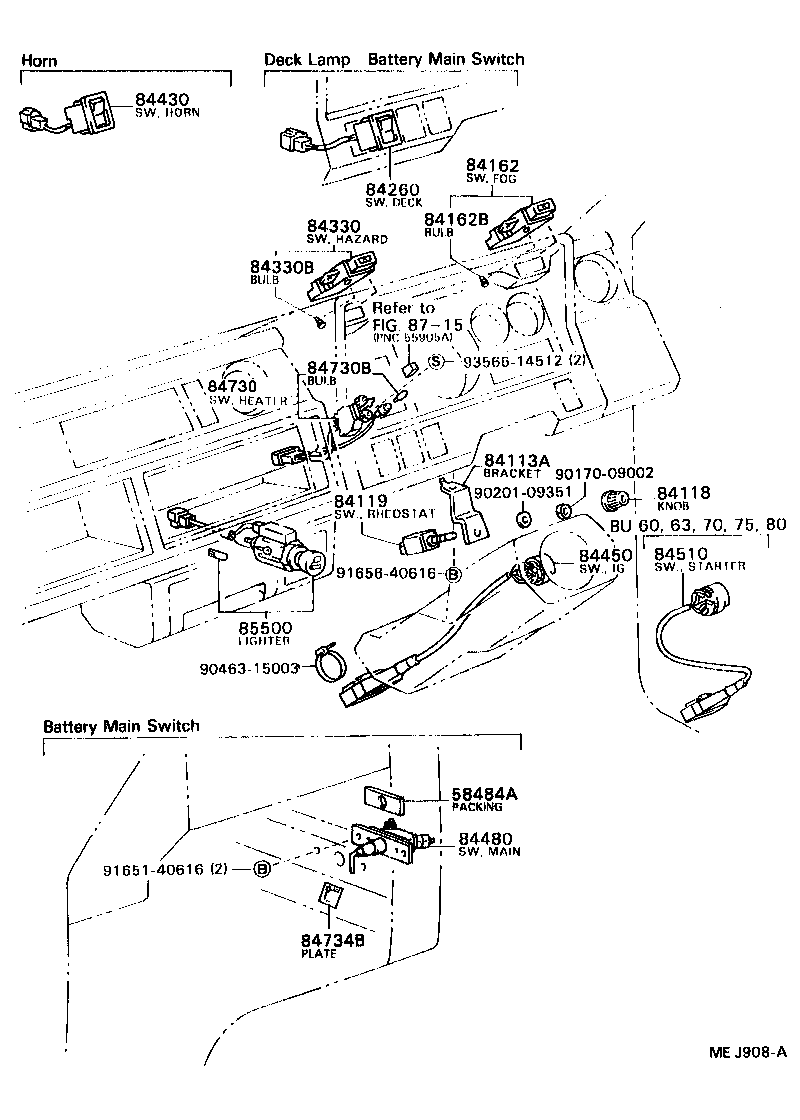

ILLUST NO. 2 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84162-95402 |
BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD W(FOG LAMP) |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10170 |
BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD 12V 1.12W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-95401 |
BU65..CBU;BU60,61,62,70,8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10170 |
BU65..CBU;BU60,61,62,70,8# 12V 1.12W |
1 | ||
| 84510 - SWITCH ASSY, STARTER | ||||
| 84510-36110 |
BU60,70,80..GEN,GHD W(TILT & TELESCOPIC) |
1 | ||
| 84510-36100 |
BU60,70,80..GEN,GHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
BU60..ST..GEN;BU61,62,81,82,85..GEN,GHD;BU60,65,80..RHD..(GEN,GHD) FR HEATER |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BU60..ST..GEN;BU61,62,81,82,85..GEN,GHD;BU60,65,80..RHD..(GEN,GHD) 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95403 |
BU65..CBU;BU60,61,62,70,8# |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| 90201-09351 | ||||
| 90463-15003 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

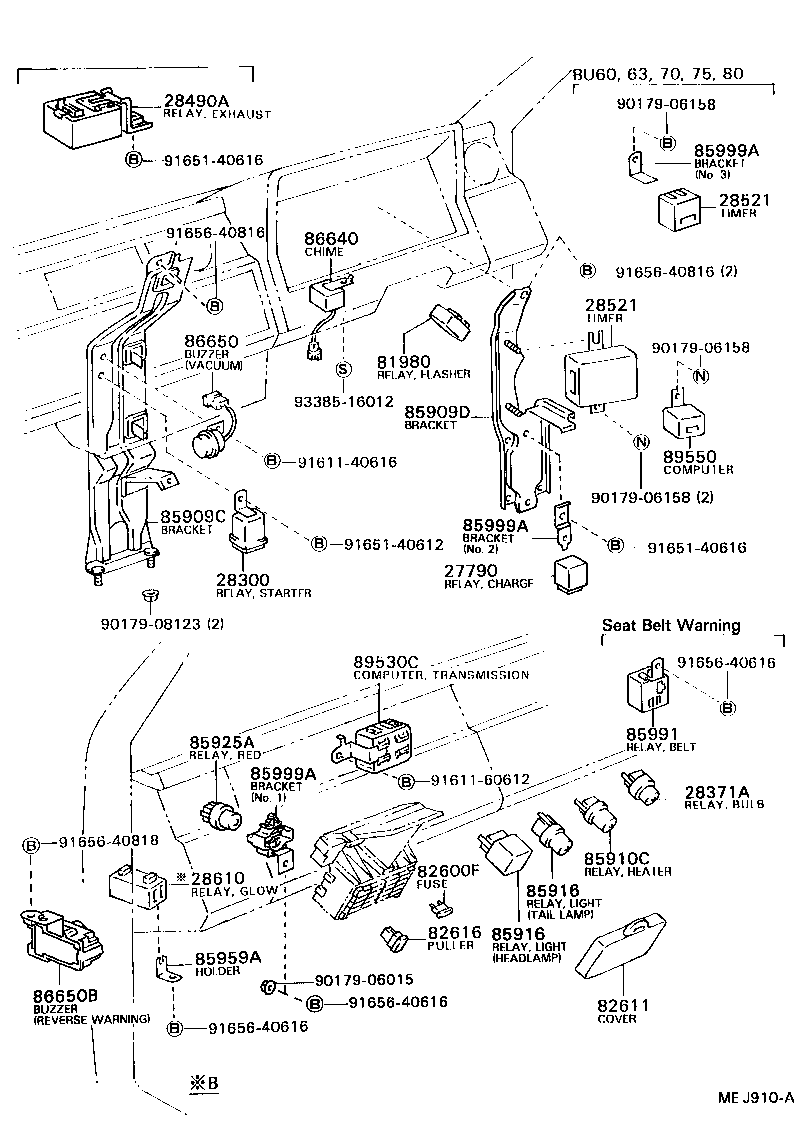

ILLUST NO. 4 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
11B..BU65..CBU;B,11B,13B..BU60,61,62,70,8#,93 |
1 | ||
| 28300-48010 |
11B..BU65..CBU;B,11B,13B..BU60,61,62,70,8# |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
B..BU60,70,80 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
B..BU60,70,80 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,70,80 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
BU65..CBU;BU60,61,62,70,8#,93 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
BU60,70,80 7.5A |
7 | ||
| 90982-09004 |
BU6#,70,8#,93 20A,YELLOW |
2 | ||
| 90982-09003 |
BU65..CBU;BU60,61,62,70,8#,93 15A |
8 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95406 |
BU65..CBU;BU60,61,62,70,8#,93 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
BU6#,70,8#,93 |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95400 |
BU6#,80,81,82..RHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95400 |
BU6#,8#,93..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
BU60..ST..GEN;BU60,65,80..RHD..(GEN,GHD);BU61,62,81,82,85,93..GEN,GHD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BU65..CBU;BU60,61,62,70,8#,93 TAIL LAMP |
1 | ||
| 90987-02006 |
BU65..CBU;BU60,61,62,70,8#,93 HEADLAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
BU65..CBU;BU60,61,62,70,8#,93 TAIL LAMP |
1 | ||
| 90987-02006 |
BU65..CBU;BU60,61,62,70,8#,93 HEADLAMP |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
BU60,70,80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BU60,70,80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BU60,70,80 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-89101 |
BU60,70,80 |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25030 |
BU65..CBU;BU60,61,62,70,8# |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95418 |
BU65..GEN..CBU;BU60,61,62,70,8#,93..GEN,GHD,SA W(BACK BUZZER) |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-40616 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 91656-40818 | ||||
| 93385-16012 | ||||

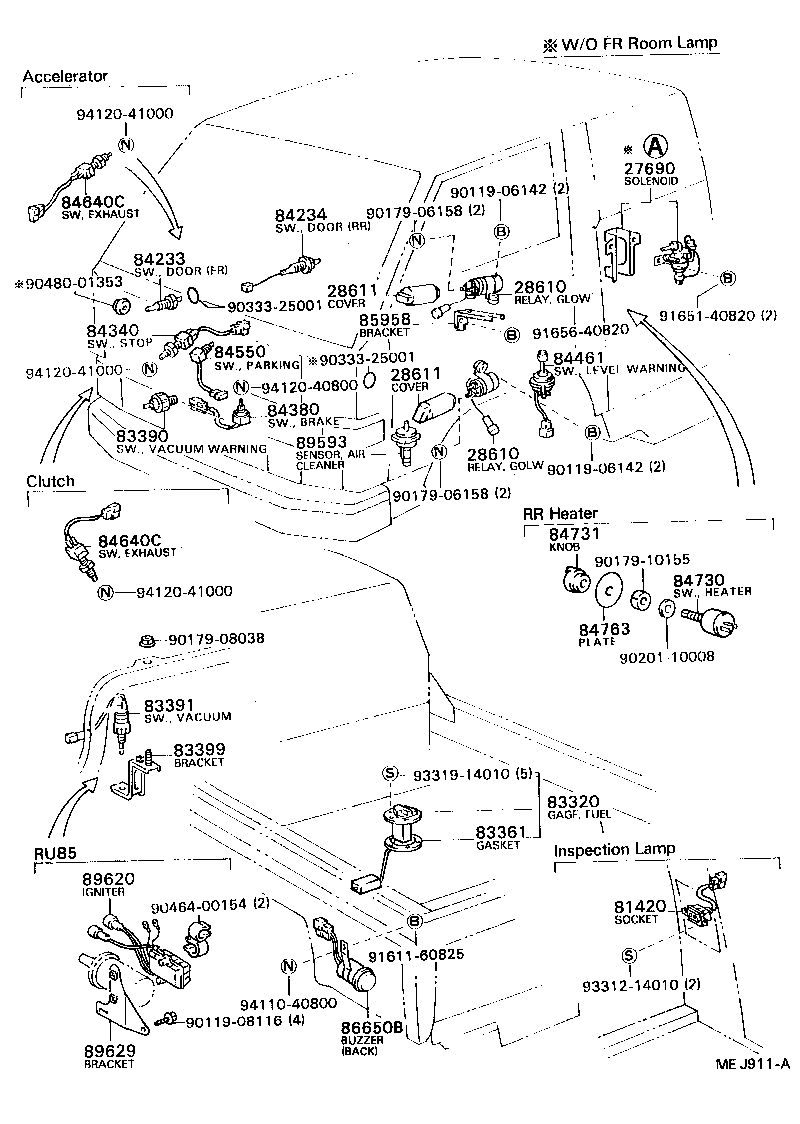

ILLUST NO. 5 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56080 |
13B..BU62..GEN;B,11B..BU60,61,80,81..WT..(GEN,GHD) W(EXHAUST BRAKE) |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,70,80 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
B..BU60,70,80 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39555 |
BU61..IV1;BU62,65,8#;BU60,61..T3 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU6#,70,8# |
1 | ||
| 83361-20030 |
BU6#,70,8#,93 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
BU85..CBU,IV3;BU6#,70,80,81,82,86 |
1 | ||
| 83390-60010 |
BU6#,70,8#,93 |
1 | ||
| 83390-60010 |
BU6#,70,8# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
BU6#,70,8#..CBU,IV3 |
1 | ||
| 84231-28020 |
BU6#,70,8#..CBU,IV3 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BU6#,70,8#,93 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-60020 |
BU6#,70,8#,93 |
1 | ||
| 84461-60020 |
BU6#,70,8# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-25010 |
BU6#,70,8# |
1 | ||
| 84550-25010 |
BU6#,70,8#,93 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36040 |
BU62..GEN;BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36040 |
BU62..GEN;BU80..LHD..CBU;BU65,80..RHD..(GEN,GHD);BU60,61,81,85,86..WT..(GEN,GHD)..(CBU,IV3) |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95406 |
BU60..ST..GEN;BU61,62,81,82,85..GEN,GHD;BU60,65,80..RHD..(GEN,GHD) FR HEATER |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95418 |
BU65..GEN..CBU;BU60,61,62,70,8#,93..GEN,GHD,SA W(BACK BUZZER) |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BU65..CBU;BU85..CBU,IV3;BU60,61,62,70,80,81,82,86 |
1 | ||
| 89593-26010 |
BU6#,70,8#,93 |
1 | ||
| 89593-26010 |
BU6#,70,8# |
1 | ||
| Common parts | ||||
| 90119-06142 | ||||
| 90119-08116 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90333-25001 | ||||
| 90464-00154 | ||||
| 90480-01353 | ||||
| 91611-60825 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 93312-14010 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

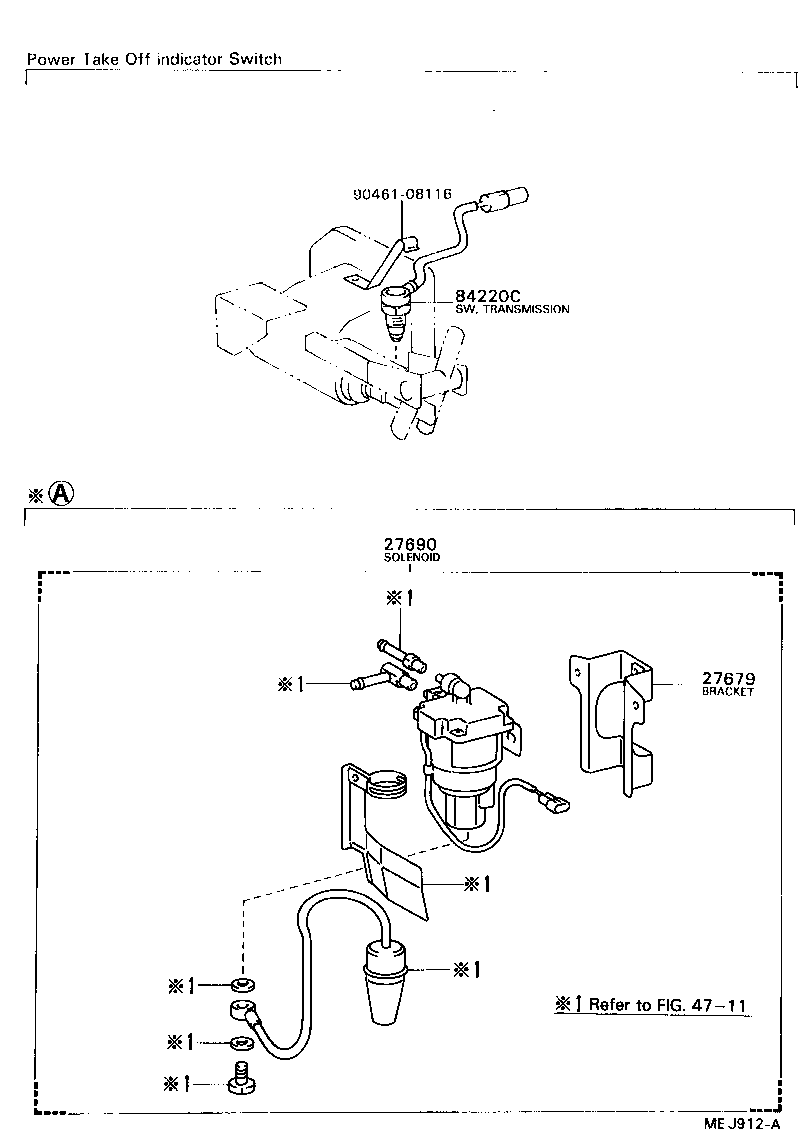

ILLUST NO. 6 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID) | ||||
| 27679-56010 |
B..BU80..RHD;13B..BU62..GEN;B..BU80..LHD..CBU;B,11B..BU60,61,81..WT..(GEN,GHD) W(EXHAUST BRAKE) |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56080 |
13B..BU62..GEN;B,11B..BU60,61,80,81..WT..(GEN,GHD) W(EXHAUST BRAKE) |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-22030 |
BU65..IV3;BU60,61,62,8#..5F..WT..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90461-08116 | ||||
| Linked diagrams | ||||
| 4711 | ||||
ILLUST NO. 3 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39305 |
BU60,61,65,8#..RHD..(GEN,GHD,SA) |
1 | ||
| 84112-39555 |
BU60,61,65,8#..RHD..WT..(GEN,GHD)..(CBU,IV3) W(TILT & TELESCOPIC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-36090 |
BU60,61,65,8#..RHD..(GEN,GHD,SA) |
1 | ||
| 84140-36120 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(TILT & TELESCOPIC) |
1 | ||
| 84140-36090 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36360 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) |
1 | ||
| 84310-36370 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) |
1 | ||
| 84310-36380 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 84310-36390 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) & W(TILT & TELESCOPIC) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU6#,70,8# |
1 | ||
| 84312-20011 |
BU6#,70,8#,93 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-36010 |
BU60,61,65,8#..RHD..(GEN,GHD,SA) |
1 | ||
| 84329-36020 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(TILT & TELESCOPIC) |
1 | ||
| 84329-36010 |
BU60,61,65,8#,93..RHD..(GEN,GHD,SA) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36280 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) |
1 | ||
| 84652-36290 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) W(TILT & TELESCOPIC) |
1 | ||
| 84652-36300 |
BU60,61,65,80,81,85,86..RHD..WT..(GEN,GHD)..(CBU,IV3) W(EXHAUST BRAKE) & W(TILT & TELESCOPIC) |
1 | ||
| 84652-36270 |
BU85..RHD..GEN..(CBU,IV3);BU60,61,65,80,81,82,86..RHD..(GEN,GHD) |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
