BU60R-MDBT (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

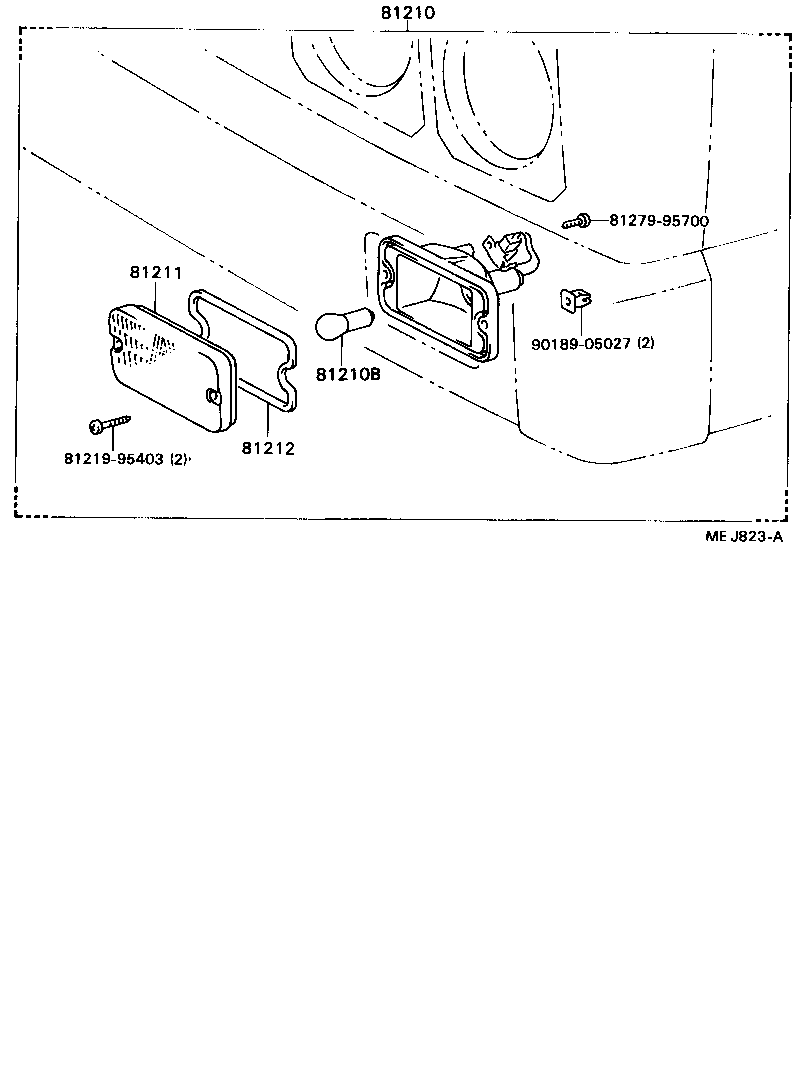

diagram 81210 81210B 81211 81212 8121995403 8127995700 9018905027
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-39155

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD

RH

 1
81220-39095

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD

LH

 1
81210B - BULB, FOG LAMP
90981-13029

BU65..GEN..CBU;BU85..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD

12V 35W

 2
81211 - LENS, FOG LAMP
81211-95403

BU65..GEN..CBU;BU60,61,62..GEN

RH

 1
81221-95403

BU65..GEN..CBU;BU60,61,62..GEN

LH

 1
81212 - GASKET, FOG LAMP LENS
81212-95403

BU65..GEN..CBU;BU60,61,62..GEN

 2
Common parts
81219-95403
81279-95700
90189-05027
