BU60R-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

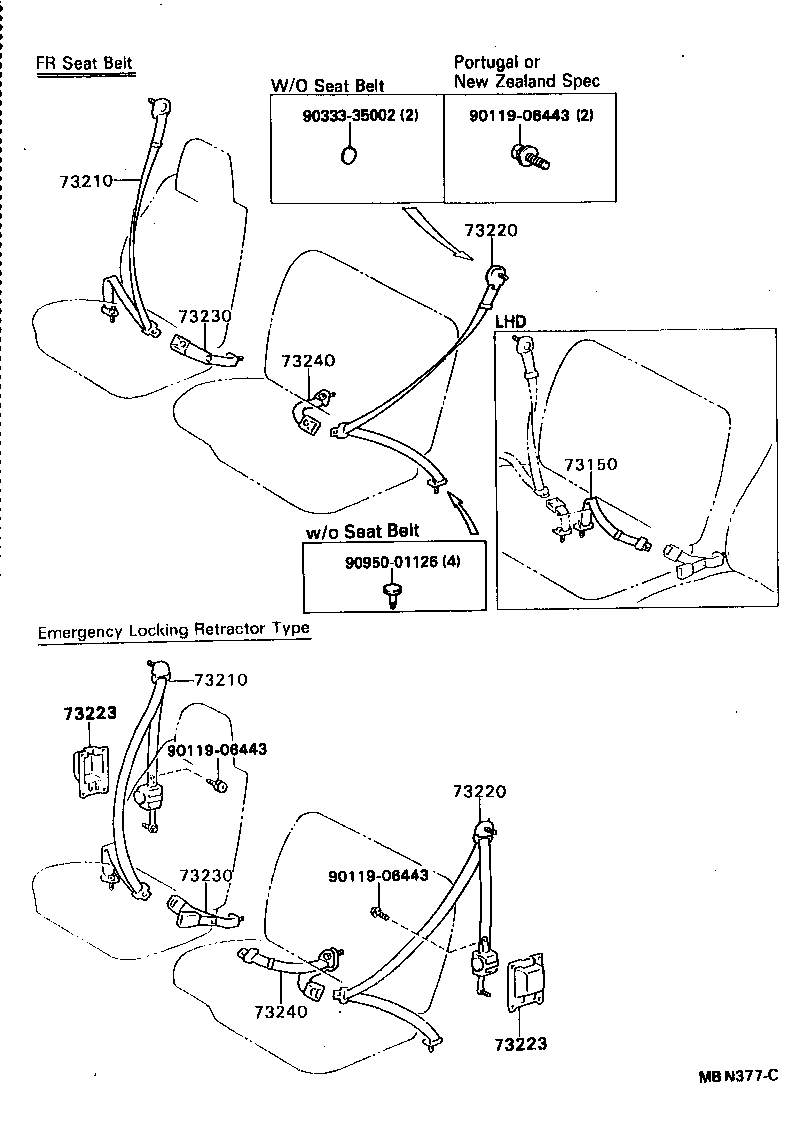

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 73150 73210 73210 73220 73220 73223 73223 73230 73230 73240 73240 9011906443 9011906443 9011906443 9033335002 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A00B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73210-95A0006

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A0006

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A00B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU60..T3..ST;BU84..LHD..IV3;BU61,66..LHD..TS..IV3;BU61,66..(T1,T2)..IV3;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A00B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73210-95A0006

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A0006

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A00B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU60..T3..ST;BU84..LHD..IV3;BU61,66..LHD..TS..IV3;BU61,66..(T1,T2)..IV3;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A0006

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A0006

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A00B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU60..T3..ST;BU84..LHD..IV3;BU61,66..LHD..TS..IV3;BU61,66..(T1,T2)..IV3;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A0006

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A0006

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73210-95A00B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73210-95A00B1

BU61..CBU;BU60..T3..ST;BU84..LHD..IV3;BU61,66..LHD..TS..IV3;BU61,66..(T1,T2)..IV3;BU65,67,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9542206

BU88,91..RHD..CBU;BU60,61,65,83,84,87,96..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73230-95422B1

BU88,91..RHD..CBU;BU60,61,65,83,84,87,96..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73230-95422B1

BU61..ST..IV3;BU61,88,91..RHD..CBU;BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9542206

BU88,91..RHD..CBU;BU60,61,65,83,84,87,96..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73230-95422B1

BU88,91..RHD..CBU;BU60,61,65,83,84,87,96..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73230-95422B1

BU61..ST..IV3;BU61,88,91..RHD..CBU;BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73240-9542506

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73240-9542506

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73240-95425B1

BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,84..LHD..IV3;BU65,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73240-95425B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B1

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

GRAY,TRIM1#

 1
73240-9542506

BU61..LHD..CBU;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70,87..(DMP,TR,V)..(GEN,GHD);BU60,61,83,84..RHD..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73240-9542506

BU60..T3..ST;BU84..LHD..IV3;BU60,83,84..RHD..(GEN,GHD);BU61,65,66,67,70,87..(DMP,TR,V)..(GEN,GHD)..(CBU,IV3)

BROWN,TRIM4#

 1
73240-95425B1

BU61..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,84..LHD..IV3;BU65,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
73240-95425B1

BU61..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU65,70..LHD..(DMP,V);BU60,83,84,87..RHD..(GEN,GHD)

GRAY,TRIM1#

 1
Common parts
90119-06443
90333-35002
90950-01126
