BU60R-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

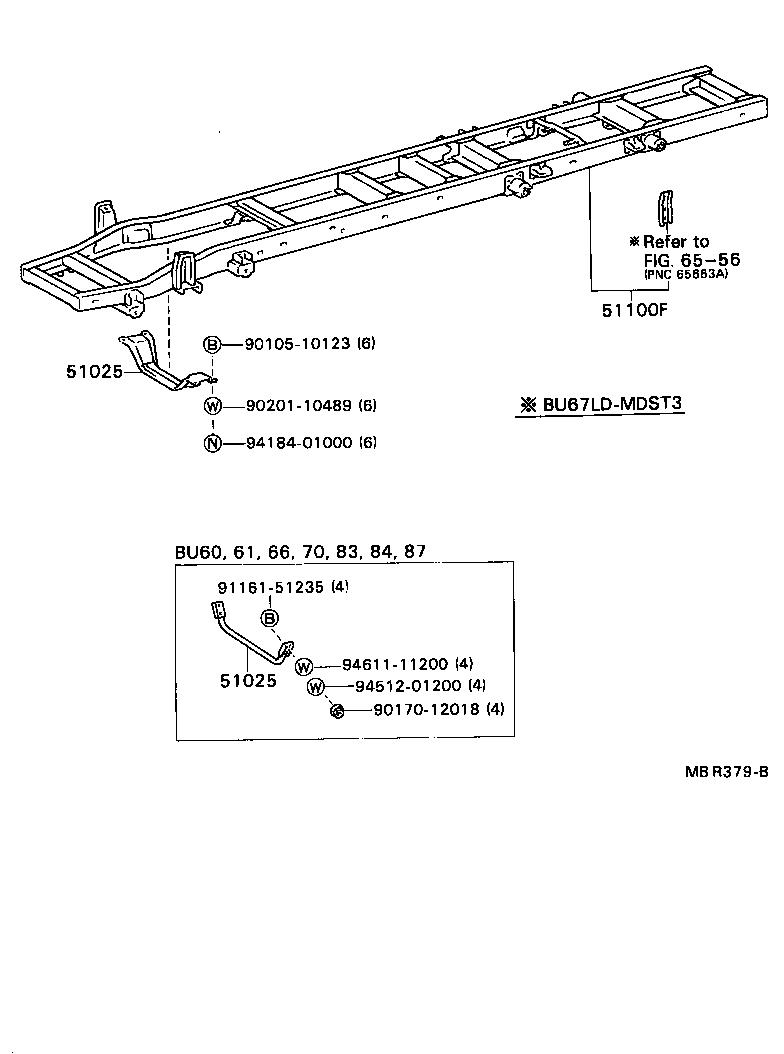

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 51025 51025 51100F 6556 9010510123 9017012018 9020110489 9116151235 9418401000 9451201200 9461111200
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU60,61,66,70,83,84,87

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU60,61,66,70,83,84,87

 1
51100F - FRAME SUB-ASSY
51002-3B350

BU66..ARL;BU60,61..WT

 1
Common parts
90105-10123
90170-12018
90201-10489
91161-51235
94184-01000
94512-01200
94611-11200
Linked diagrams
6556

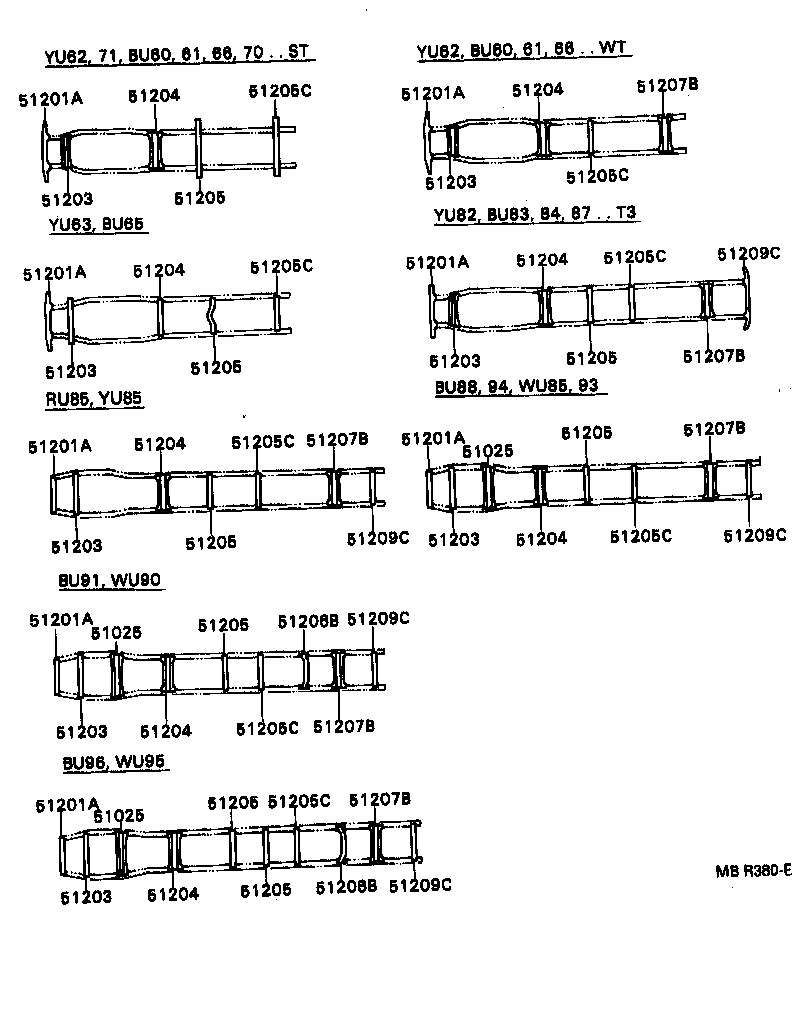

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 51025 51025 51025 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51203 51203 51203 51203 51203 51203 51203 51203 51204 51204 51204 51204 51204 51204 51204 51204 51205 51205 51205 51205 51205 51205 51205 51205 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51206B 51206B 51207B 51207B 51207B 51207B 51207B 51207B 51209C 51209C 51209C 51209C 51209C
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU60,61,66,70,83,84,87

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU60,61,66,70,83,84,87

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU60,61,66,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-36130

BU6#,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU60,61,66,70,83,84,87

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU66..ST;BU66..T2;BU66..ARL;BU60,61,70,83,84..ARL,GEN,SA

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-36100

BU60,61,66..T3..WT

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1
51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7
51207-36060

BU60,61,66,83,84..T3..WT..(ARL,GEN,SA)

 1

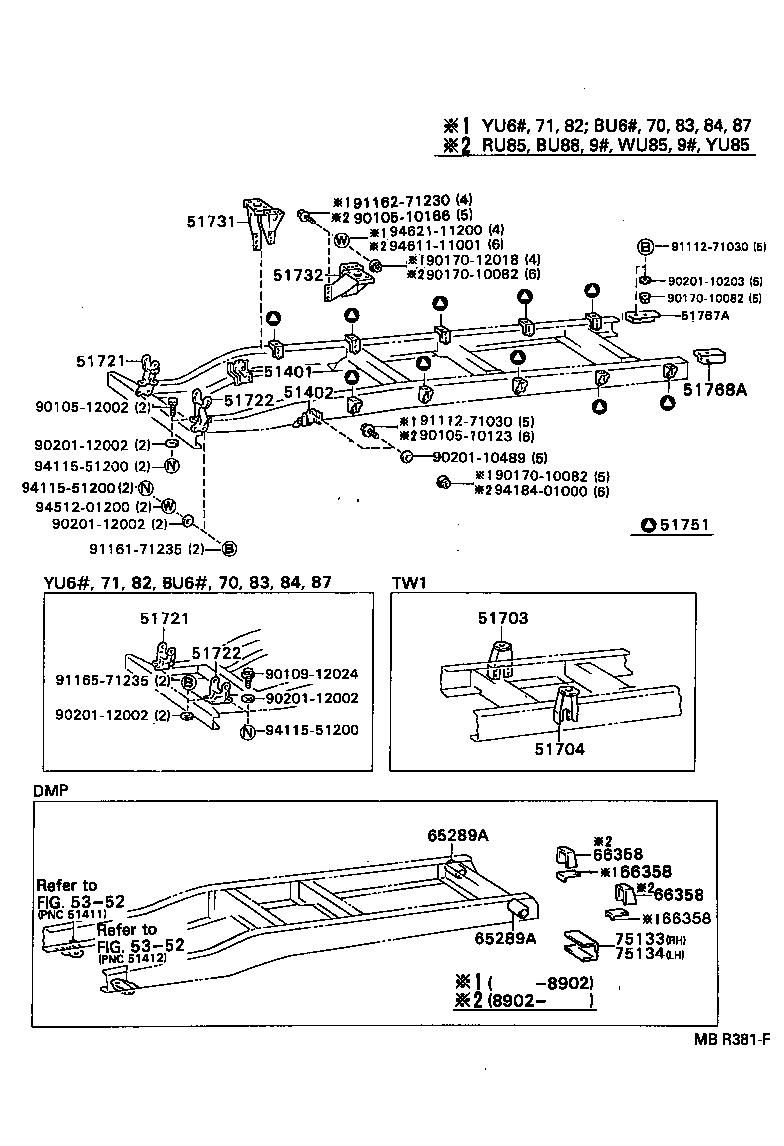

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 51401 51402 51703 51704 51721 51721 51722 51722 51731 51732 51751 51767A 51768A 5352 5352 65289A 65289A 66358 66358 66358 66358 75133 75134 9010510123 9010510166 9010512002 9010912024 9017010082 9017010082 9017010082 9017012018 9020110203 9020110489 9020112002 9020112002 9020112002 9020112002 9111271030 9111271030 9116171235 9116271230 9116571235 9411551200 9411551200 9411551200 9418401000 9451201200 9461111001 9462111200
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-36140

BU60,61,66,70,83,84,87

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-36100

BU60,61,66,70,83,84,87

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-36020

BU6#,70,83,84,87

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-36020

BU6#,70,83,84,87

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU6#,70,83,84,87

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU6#,70,83,84,87

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51731-36100

BU6#,70,83,84,87

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51731-36100

BU6#,70,83,84,87

 1
Common parts
90105-10123
90105-10166
90105-12002
90109-12024
90170-10082
90170-12018
90201-10203
90201-10489
90201-12002
91112-71030
91161-71235
91162-71230
91165-71235
94115-51200
94184-01000
94512-01200
94611-11001
94621-11200
Linked diagrams
5352
