BU60R-MDBT (1988)
Toyota Dyna 200
(8808- )

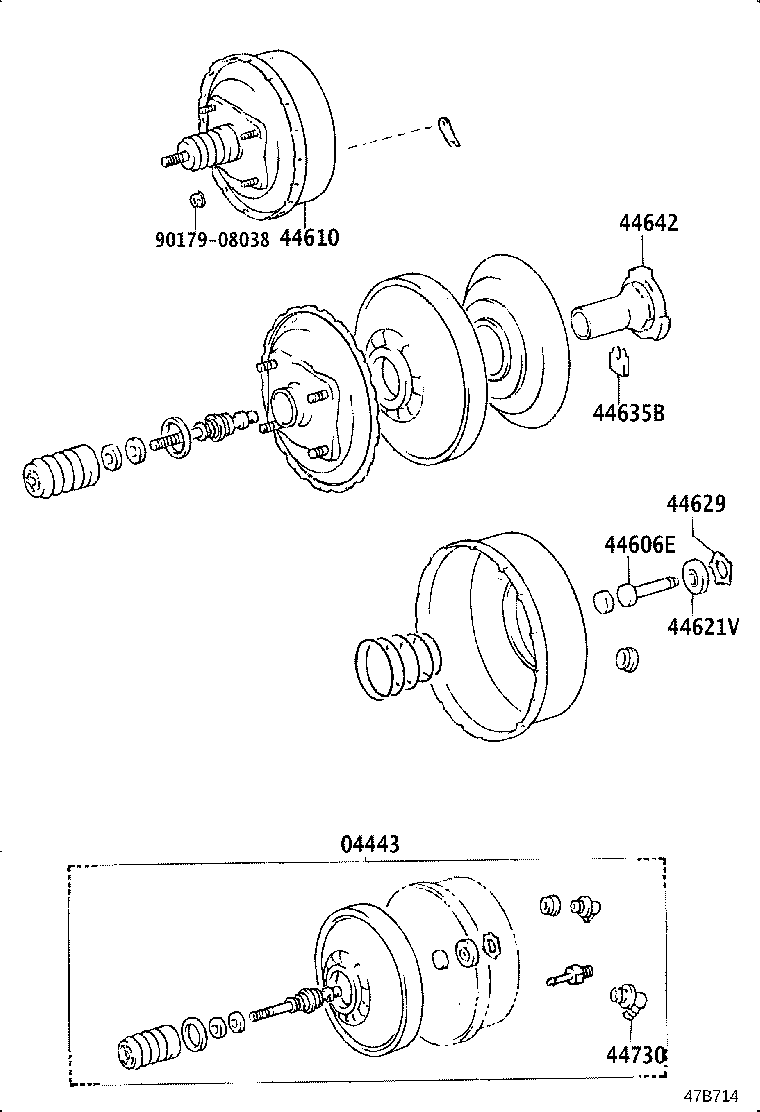

AISIN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36060 |
BU65,66..5F..ARL;BU60,61,83,84..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 04443-36050 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-36240 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36240 |
BU60,61,65,66,83,84..RHD..5F |
1 | ||
| 44610-36260 |
BU65,66..5F..ARL;BU60,61,83,84..RHD..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-36240 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-36240 |
BU66..ST;BU60,61,65,70,83,84 |
1 | ||
| 44642-36260 |
BU65..ARL;BU60,61,83,84..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 44642-36240 |
BU60,61,65,66,83,84..RHD |
1 | ||
| 44642-36260 |
BU65,66..ARL;BU60,61,83,84..RHD..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
(8808- )

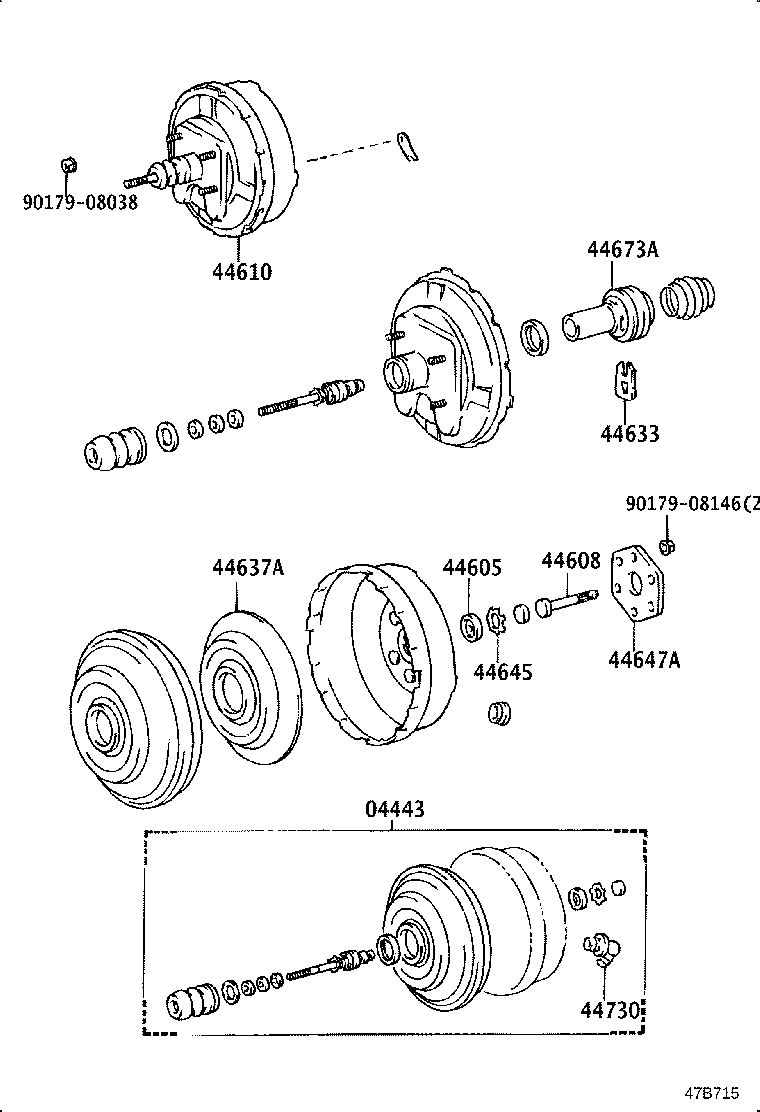

JKC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36060 |
BU65,66..5F..ARL;BU60,61,83,84..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 04443-36050 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36240 |
BU60,61,65,66,83,84..RHD..5F |
1 | ||
| 44610-36260 |
BU65,66..5F..ARL;BU60,61,83,84..RHD..WT..(ARL,GEN) W(FR DISC BRAKE RR AUTO ADJUSTER) |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-26140 |
BU66..ST;BU66..5F..ARL;BU60,61,65,70,83,84 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU6#,70,8#,9# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90179-08146 | ||||

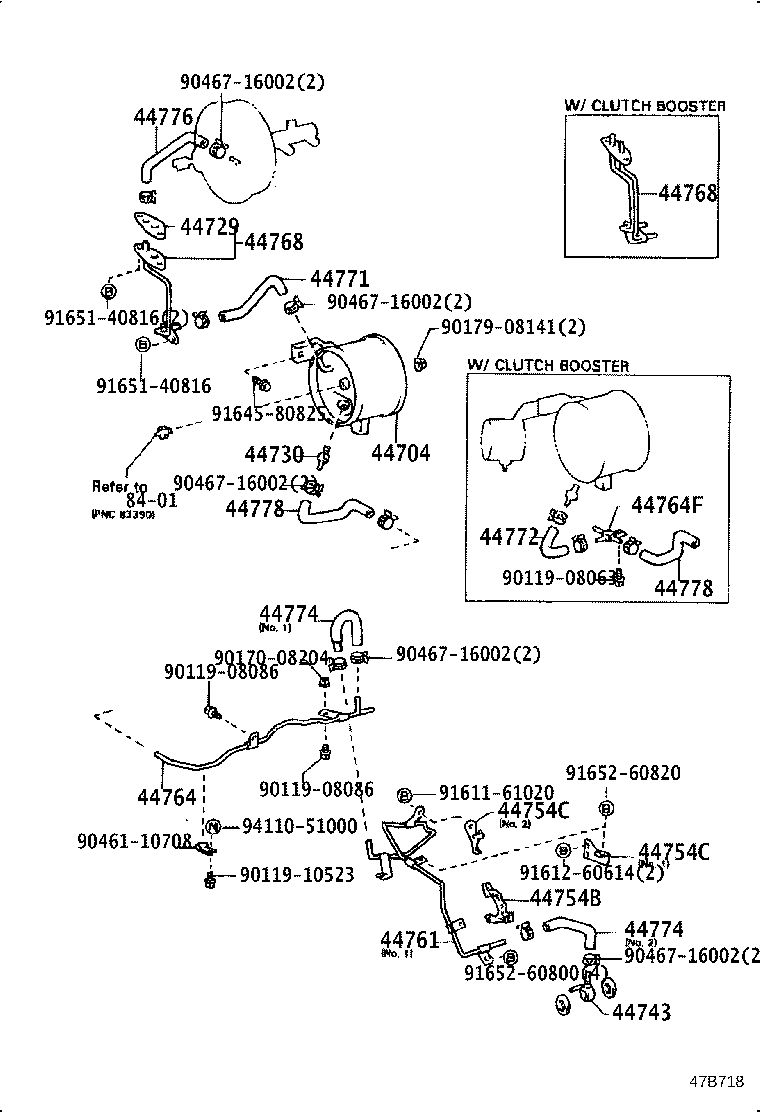

(8808- )BU60,61,65,66,83,84,87..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36160 |
BU60,61,65,66,8#,9#..RHD |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BU6#,70,8#,9# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BU6#,70,8#,9# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09129 |
BU65..CBU;BU60,61,66,67,70,8#,94;BU91,96..DSL..(ARL,GEN) W(AIR CONDITIONER) |
1 | ||
| 90405-09130 |
BU6#,70,8#,94;BU91,96..DSL..(ARL,GEN) |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36050 |
BU6#,70,8#,94;BU91,96..ARL,GEN NO.1 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36080 |
BU91,96..GEN;BU6#,70,8#,94 N0.2 |
1 | ||
| 44754-36080 |
BU65..ARL;BU60,91..T3..GEN;BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44754-36070 |
BU91..DSL..GEN;BU60,61,65,67,70,8#,94;BU66,96..T3..TB..DSL..(ARL,GEN) N0.1 |
1 | ||
| 44754-36081 |
BU65..ARL;BU60,91..T3..GEN;BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44754-36081 |
BU91,96..GEN;BU6#,70,8#,94 N0.2 |
1 | ||
| 44754-36082 |
BU91..DSL..GEN;BU60,61,65,67,70,8#,94;BU66,96..T3..TB..DSL..(ARL,GEN) N0.2 |
1 | ||
| 44754-36082 |
BU65..ARL;BU66..T3..TB;BU60,91..T3..DSL..GEN;BU61,67,83,84,88,96..DSL..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36080 |
BU91,96..GEN;BU6#,70,8#,94 N0.2 |
1 | ||
| 44754-36080 |
BU65..ARL;BU60,91..T3..GEN;BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44754-36070 |
BU91..DSL..GEN;BU60,61,65,67,70,8#,94;BU66,96..T3..TB..DSL..(ARL,GEN) N0.1 |
1 | ||
| 44754-36081 |
BU65..ARL;BU60,91..T3..GEN;BU61,66,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44754-36081 |
BU91,96..GEN;BU6#,70,8#,94 N0.2 |
1 | ||
| 44754-36082 |
BU91..DSL..GEN;BU60,61,65,67,70,8#,94;BU66,96..T3..TB..DSL..(ARL,GEN) N0.2 |
1 | ||
| 44754-36082 |
BU65..ARL;BU66..T3..TB;BU60,91..T3..DSL..GEN;BU61,67,83,84,88,96..DSL..(ARL,GEN,GHD)..(CBU,IV3) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36111 |
BU6#,70,8#,94;BU91,96..ARL,GEN NO.1 |
1 | ||
| 44761-36110 |
BU6#,70,8#,94;BU91,96..ARL,GEN NO.1 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-36310 |
BU60,61,66,83,84,87..RHD..(ARL,GEN,GHD) |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-36020 |
BU60,61,65,8#,9#..RHD..(GEN,GHD,SA) |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-36020 |
BU60,61,65,8#,9#..RHD..(GEN,GHD,SA) |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36060 |
BU60,61,65,66,8#,9#..RHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-36170 |
BU6#,70,83,84,87 NO.1 |
1 | ||
| 44774-36190 |
BU6#,70,8#,94;BU91,96..ARL,GEN NO.2 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44771-36170 |
BU6#,70,83,84,87 NO.1 |
1 | ||
| 44774-36190 |
BU6#,70,8#,94;BU91,96..ARL,GEN NO.2 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36030 |
BU60,61,65,66,83,84,87..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36010 |
BU66..4FC;BU60,61,65,8#,9#..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-36010 |
BU66..4FC;BU60,61,65,8#,9#..RHD |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08086 | ||||
| 90119-10523 | ||||
| 90170-08204 | ||||
| 90179-08141 | ||||
| 90461-10708 | ||||
| 90467-16002 | ||||
| 91611-61020 | ||||
| 91612-60614 | ||||
| 91645-80825 | ||||
| 91651-40816 | ||||
| 91652-60800 | ||||
| 91652-60820 | ||||
| 94110-51000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
