BU60R-MDBT (1988)
Toyota Dyna 200
(8808-9210)BU91..GEN,SA ; (8808-9210)BU6#,70,8#,94,96

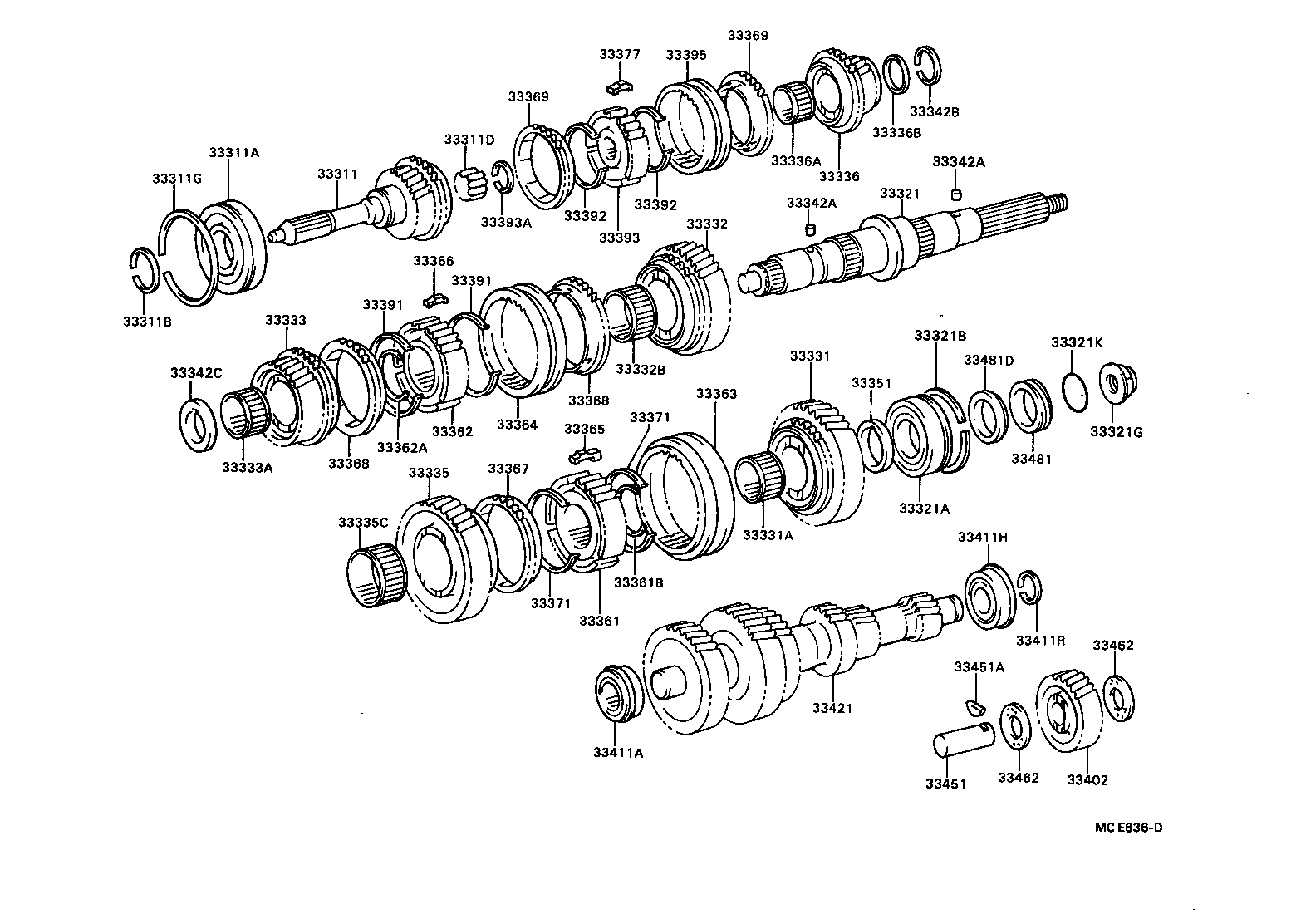

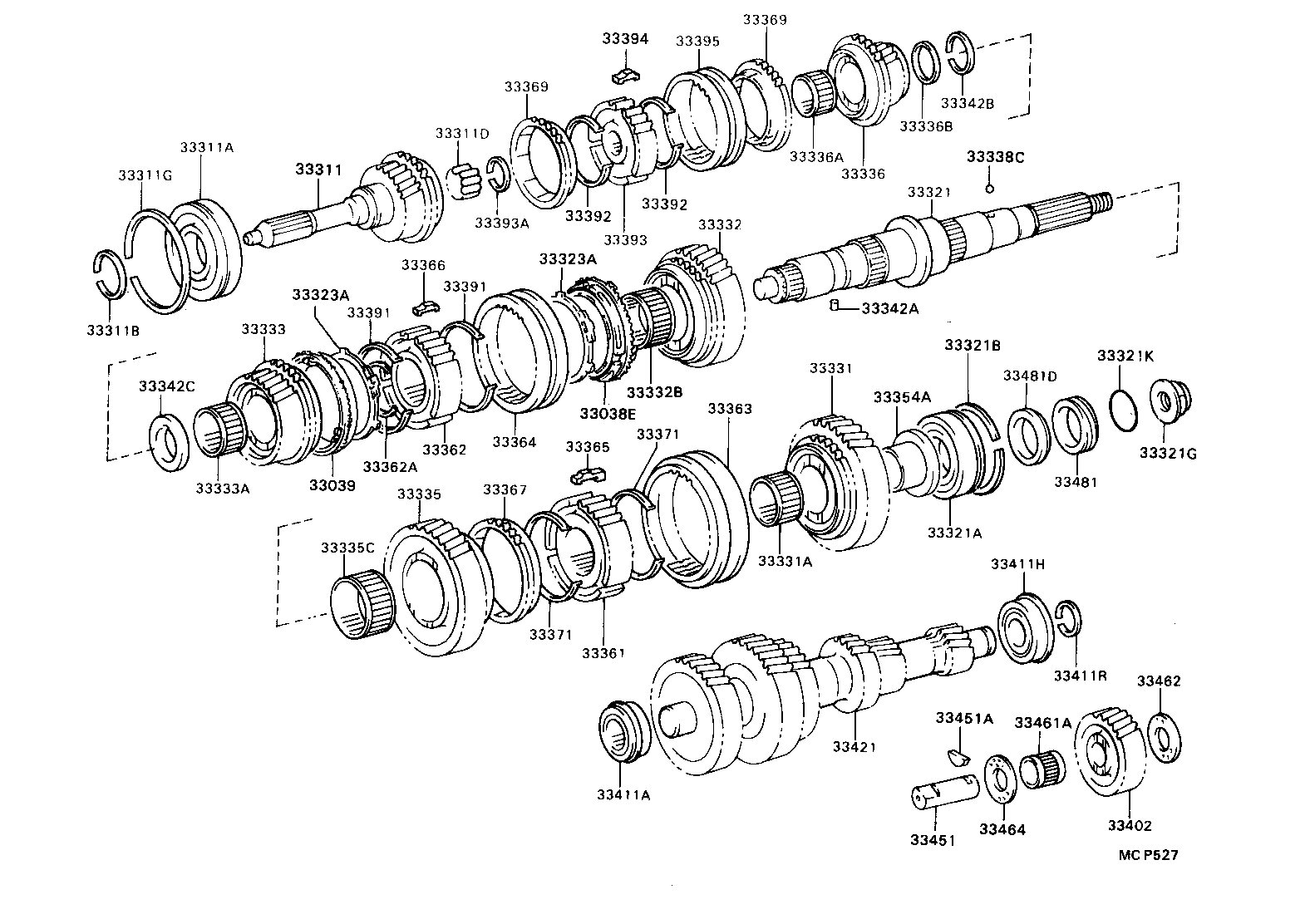

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33301-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33301-36110 |
BU60,61,65,70,83,84 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.50-2.55,MARK 2 |
1 | ||
| 90520-42005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.65-2.70,MARK 5 |
1 | ||
| 90520-42004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.60-2.65,MARK 4 |
1 | ||
| 90520-42006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.70-2.75,MARK 6 |
1 | ||
| 90520-42007 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.75-2.80,MARK 7 |
1 | ||
| 90520-42003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.55-2.60,MARK 3 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
10 | ||
| 90361-08004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-96001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36071 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321-36070 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321-36100 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33321-36090 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-40034 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.36-2.46 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90179-24008 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33031-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33031-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-47004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90364-54004 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33033-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33033-36060 |
BU60,61,65,70,83,84 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL |
1 | ||
| 90364-54001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36011 |
BU88,91,96..DSL..GEN;BU6#,70,83,84,87,94..5F |
1 | ||
| 33034-36010 |
BU88,91,96..GEN;BU6#,70,83,84,87,94..5F |
1 | ||
| 33034-36060 |
BU66..T3..TB;BU88,91,96..DSL..GEN;BU60,61,65,67,70,83,84,87,94 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90364-47004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33032-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33032-36050 |
BU60,61,65,70,83,84 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL |
1 | ||
| 90364-58001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-36020 |
BU60,61,65,70,83,84 |
1 | ||
| 33036-36021 |
BU60,61,65,70,83,84 |
1 | ||
| 33036-36040 |
BU60,61,65,70,83,84 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37008 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90364-37012 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90560-37001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-33013 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95 |
1 | ||
| 90520-33016 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10 |
1 | ||
| 90520-34010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.90-2.95,MARK A |
1 | ||
| 90520-34016 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.10-3.15,MARK F |
1 | ||
| 90520-33014 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00 |
1 | ||
| 90520-33017 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15 |
1 | ||
| 90520-34012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.00-3.05,MARK C |
1 | ||
| 90520-34011 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.95-3.00,MARK B |
1 | ||
| 90520-33015 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05 |
1 | ||
| 90520-34015 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.05-3.10,MARK D |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33342-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33342-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33351 - WASHER, REVERSE GEAR THRUST | ||||
| 33351-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33351-36010 |
BU6#,70,8#,9# |
1 | ||
| 33351-36011 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33361-36022 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33361-36020 |
BU6#,70,8#,9# |
1 | ||
| 33361-36021 |
BU6#,70,8#,9# |
1 | ||
| 33361-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-43004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK=4 |
1 | ||
| 90520-43003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK=3 |
1 | ||
| 90520-43007 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK=7 |
1 | ||
| 90520-43002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95,MARK=2 |
1 | ||
| 90520-43005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK=5 |
1 | ||
| 90520-43006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK=6 |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-43003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK=3 |
1 | ||
| 90520-43004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK=4 |
1 | ||
| 90520-43005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK=5 |
1 | ||
| 90520-43009 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.85,MARK=8 |
1 | ||
| 90520-43007 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK=7 |
1 | ||
| 90520-43002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95,MARK=2 |
1 | ||
| 90520-43006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK=6 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33363-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36061 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33364-36080 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
3 | ||
| 33365-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33366-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
3 | ||
| 33366-36031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33367-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36042 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33368-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-36042 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33368-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33369-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33369-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-20011 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33391-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33391-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391-22020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391-22020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33393-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33393-36060 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-28057 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK 7 |
1 | ||
| 90520-28054 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95,MARK 4 |
1 | ||
| 90520-28055 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK 5 |
1 | ||
| 90520-28056 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK 6 |
1 | ||
| 90520-28058 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK 8 |
1 | ||
| 90520-28059 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK 9 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33395-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36060 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33461-36090 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90365-37006 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90365-37005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-30048 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90363-30049 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK 1 |
1 | ||
| 90520-26034 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK 4 |
1 | ||
| 90520-26030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK 0 |
1 | ||
| 90520-26035 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.20-2.25,MARK 5 |
1 | ||
| 90520-26033 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK 3 |
1 | ||
| 90520-26032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK 2 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36131 |
BU60,61,65,70,83,84 |
1 | ||
| 33421-36130 |
BU60,61,65,70,83,84 |
1 | ||
| 33421-36180 |
BU60,61,65,70,83,84 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33451-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33462-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33462-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36160 |
BU65,87..IV3;BU91,96..DSL..GEN;BU60,61,66,67,83,84,88,94..5F..WT..(ARL,GEN,SA) N=6,MARK 6X23-25 |
1 | ||
| 33481-36170 |
BU60,61,83,84..WT..GEN N=5,MARK 5X22-24,HEAVY DUTY SPEC |
1 | ||
| 33481-36160 |
BU65,87..IV3;BU91,96..DSL..GEN;BU60,61,67,83,84,88,94..WT..(ARL,GEN,SA) N=6,MARK 6X23-25 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36070 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
(9210- )BU91..GEN,SA ; (9210- )BU6#,70,8#,94,96
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33038-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33039-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33301-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33301-36110 |
BU60,61,65,70,83,84 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-45010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-42002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.50-2.55,MARK 2 |
1 | ||
| 90520-42005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.65-2.70,MARK 5 |
1 | ||
| 90520-42004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.60-2.65,MARK 4 |
1 | ||
| 90520-42006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.70-2.75,MARK 6 |
1 | ||
| 90520-42007 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.75-2.80,MARK 7 |
1 | ||
| 90520-42003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.55-2.60,MARK 3 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
10 | ||
| 90361-08004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
12 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-96001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36071 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321-36070 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321-36100 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33321-36090 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-40034 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-88001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.36-2.46 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90179-24008 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33323A - SPACER, SYNCHRONIZER RING | ||||
| 33323-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33031-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33031-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-47004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90364-54004 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33033-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33033-36060 |
BU60,61,65,70,83,84 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-54003 |
BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL |
1 | ||
| 90364-54001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-36011 |
BU88,91,96..DSL..GEN;BU6#,70,83,84,87,94..5F |
1 | ||
| 33034-36010 |
BU88,91,96..GEN;BU6#,70,83,84,87,94..5F |
1 | ||
| 33034-36060 |
BU66..T3..TB;BU88,91,96..DSL..GEN;BU60,61,65,67,70,83,84,87,94 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-47007 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90364-47004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-36031 |
BU60,61,65,70,83,84 |
1 | ||
| 33032-36030 |
BU60,61,65,70,83,84 |
1 | ||
| 33032-36050 |
BU60,61,65,70,83,84 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-58005 |
BU91..DSL..(GEN,SA);BU6#,70,8#,94,96..DSL |
1 | ||
| 90364-58001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-36020 |
BU60,61,65,70,83,84 |
1 | ||
| 33036-36021 |
BU60,61,65,70,83,84 |
1 | ||
| 33036-36040 |
BU60,61,65,70,83,84 |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-37008 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90364-37012 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90560-37001 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33338C - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33342A - PIN, STRAIGHT (FOR GEAR THRUST WASHER) | ||||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90250-04056 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-33013 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95 |
1 | ||
| 90520-33016 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10 |
1 | ||
| 90520-34010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.90-2.95,MARK A |
1 | ||
| 90520-34016 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.10-3.15,MARK F |
1 | ||
| 90520-33014 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00 |
1 | ||
| 90520-33017 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15 |
1 | ||
| 90520-34012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.00-3.05,MARK C |
1 | ||
| 90520-34011 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.95-3.00,MARK B |
1 | ||
| 90520-33015 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05 |
1 | ||
| 90520-34015 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=3.05-3.10,MARK D |
1 | ||
| 33342C - WASHER, 3RD GEAR THRUST | ||||
| 33342-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33342-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33342-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36021 |
BU6#,70,8#,9# |
1 | ||
| 33361-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33361-36022 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33361-36020 |
BU6#,70,8#,9# |
1 | ||
| 33361-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33362-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-43003 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK=3 |
1 | ||
| 90520-43004 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK=4 |
1 | ||
| 90520-43005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK=5 |
1 | ||
| 90520-43009 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.85,MARK=8 |
1 | ||
| 90520-43007 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK=7 |
1 | ||
| 90520-43002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95,MARK=2 |
1 | ||
| 90520-43006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK=6 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33363-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36061 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33364-36080 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
3 | ||
| 33365-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33366-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
3 | ||
| 33366-36031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33367-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33369-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33369-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33391-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33391-36021 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33371-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391-22020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
2 | ||
| 33391-22020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33393-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33393-36060 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-28057 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK 7 |
1 | ||
| 90520-28054 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.90-1.95,MARK 4 |
1 | ||
| 90520-28055 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK 5 |
1 | ||
| 90520-28056 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK 6 |
1 | ||
| 90520-28058 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK 8 |
1 | ||
| 90520-28059 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK 9 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36020 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33395-36030 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36060 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33461-36090 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-37002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90365-37006 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 90365-37005 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-30048 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 90363-30049 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-26031 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.00-2.05,MARK 1 |
1 | ||
| 90520-26034 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.15-2.20,MARK 4 |
1 | ||
| 90520-26030 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=1.95-2.00,MARK 0 |
1 | ||
| 90520-26035 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.20-2.25,MARK 5 |
1 | ||
| 90520-26033 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.10-2.15,MARK 3 |
1 | ||
| 90520-26032 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F T=2.05-2.10,MARK 2 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36131 |
BU60,61,65,70,83,84 |
1 | ||
| 33421-36130 |
BU60,61,65,70,83,84 |
1 | ||
| 33421-36180 |
BU60,61,65,70,83,84 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36050 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33451-36040 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33461A - BEARING, REVERSE IDLER GEAR | ||||
| 90364-28018 |
BU6#,70,8#,94,96 |
1 | ||
| 90364-28019 |
BU6#,70,8#,94,96 |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33462-36010 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
2 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
BU91..GEN,SA;BU6#,70,8#,94,96 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36160 |
BU65,87..IV3;BU91,96..DSL..GEN;BU60,61,66,67,83,84,88,94..5F..WT..(ARL,GEN,SA) N=6,MARK 6X23-25 |
1 | ||
| 33481-36170 |
BU60,61,83,84..WT..GEN N=5,MARK 5X22-24,HEAVY DUTY SPEC |
1 | ||
| 33481-36160 |
BU65,87..IV3;BU91,96..DSL..GEN;BU60,61,67,83,84,88,94..WT..(ARL,GEN,SA) N=6,MARK 6X23-25 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36070 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
