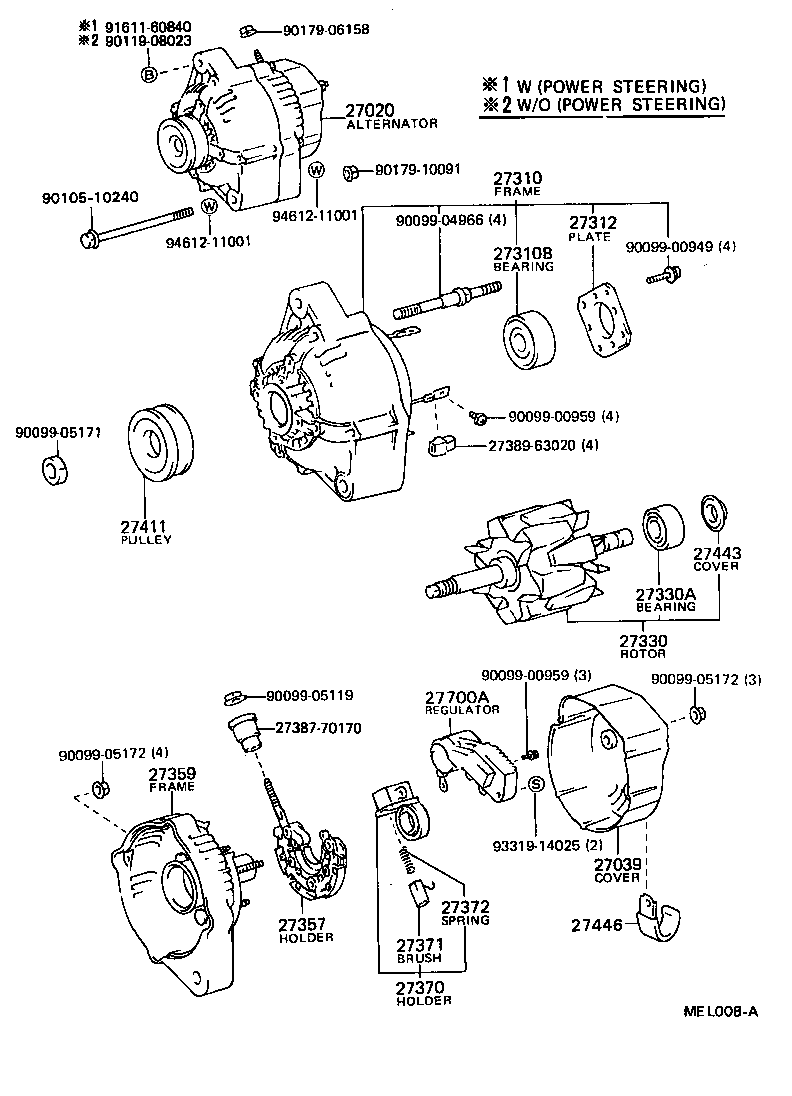

BU60R-MDBT (1988)
Toyota Dyna 200
(8808- )B,11B,14B
24V 30A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58010 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 45A |
1 | ||
| 27060-58180 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310-72151 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72120 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-70300 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27370-63021 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27370-35060 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58060 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58060 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10071 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10240 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94612-11001 | ||||

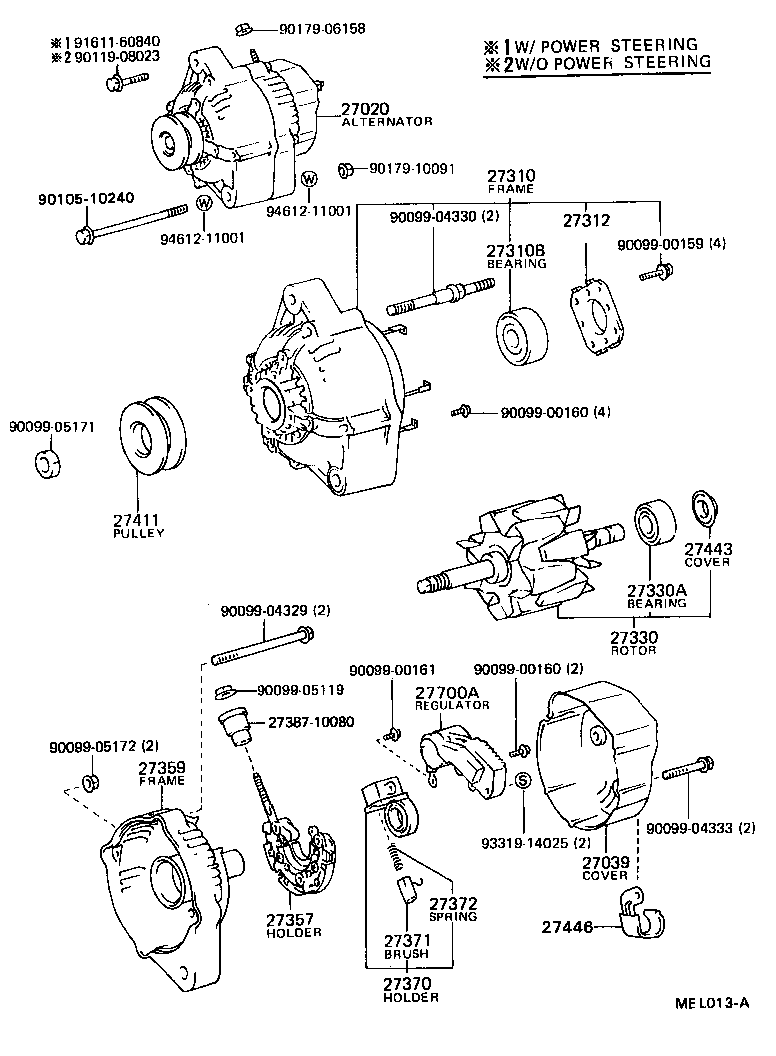

(8808- )
12V 45A,50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-58010 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 45A |
1 | ||
| 27060-58180 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# 12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310-72151 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10170 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72120 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10154 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72150 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-70300 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27370-63021 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27370-35060 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
B,11B,14B#..BU6#,70,8#,9# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-58060 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
B,11B,14B#..BU6#,70,8#,9# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58060 |
11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10071 |
11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9# |
1 | ||
| Common parts | ||||
| 27387-10080 | ||||
| 90099-00159 | ||||
| 90099-00160 | ||||
| 90099-00161 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10240 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 93319-14025 | ||||
| 94612-11001 | ||||
