BU60L-MDP (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

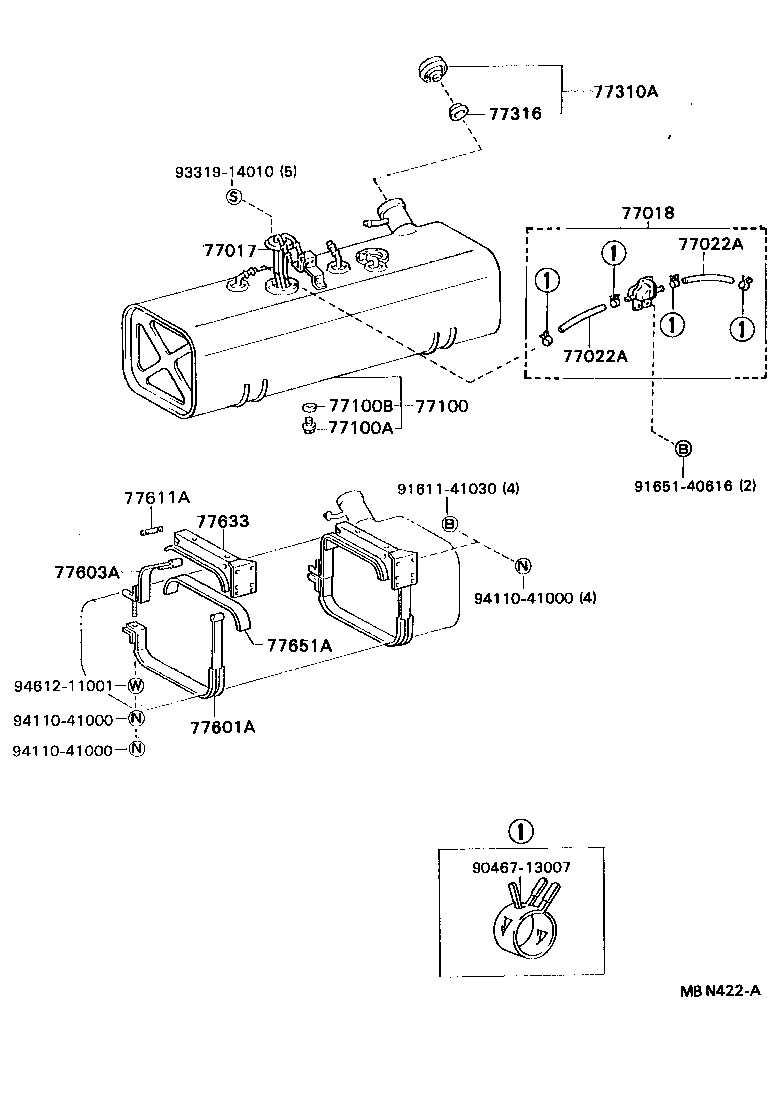

ILLUST NO. 1 OF 2(8708- )BU60..TW1

Click highlighted areas on diagram

diagram 77017 77018 77022A 77022A 77100 77100A 77100B 77310A 77316 77601A 77603A 77611A 77633 77651A 9046713007 9161141030 9165140616 9331914010 9411041000 9411041000 9411041000 9461211001
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-36141

BU60..TW1

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-25110

BU70;BU60..TW1

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU70;BU60..TW1

L=200,ID=8

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08020

BU70;BU60..TW1

L=200,ID=8

 2
77100 - TANK ASSY, FUEL
77001-3B020

BU60..TW1

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU85..GEN;BU6#,70,80,81,82,86

 1
90105-12116

BU85..GEN;BU6#,70,80,81,82,86,93

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU6#,70,8#,93

 1
90430-12245

BU6#,70,8#

 1
77310A - CAP ASSY, FUEL TANK
77310-55080

BU65..CBU;BU60,61,62,70,8#

 1
77310-55080

BU65..CBU;BU60,61,62,70,8#,93

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

BU65..CBU;BU60,61,62,70,8#

 1
77316-27010

BU65..CBU;BU60,61,62,70,8#,93

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-25090

BU70;BU60..TW1

 2
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-25010

BU70;BU60..TW1

 2
77611A - PIN (FOR FUEL TANK BAND)
77653-25010

BU70;BU60..TW1

 4
77633 - STAY, FUEL TANK
77501-25090

BU70;BU60..TW1

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-26040

BU70;BU60..TW1

 2
Common parts
90467-13007
91611-41030
91651-40616
93319-14010
94110-41000
94612-11001

ILLUST NO. 2 OF 2(8708- )BU60,70,80

Click highlighted areas on diagram

diagram 58266A 58266A 77251B 77251B 77251C 77251C 77251F 77251F 77252A 77252A 77252B 77252B 77252C 77253A 77253B 77253C 9017908001 9017908146 9017908146 9046713007 9094901161 9094901162 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
58266A - BRACKET, FUEL TUBE CLAMP
58266-36200

BU60,61,62,80,81,82

 2
58266A - BRACKET, FUEL TUBE CLAMP
58266-36200

BU60,61,62,80,81,82

 2
77251B - TUBE, FUEL MAIN
77207-36010

BU60,70,80

 1
77251B - TUBE, FUEL MAIN
77207-36010

BU60,70,80

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU6#,70,8#,93

*H,L=180

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
23271-56050

BU6#,70,8#,93

*H,L=180

 1
77251F - HOSE, FUEL
95333-08020

BU60,70,80

L=200,ID=8

 1
77251F - HOSE, FUEL
95333-08020

BU60,70,80

L=200,ID=8

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36190

BU60,80

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36190

BU60,80

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95333-08020

BU60,70,80

L=200,ID=8

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95333-08020

BU60,70,80

L=200,ID=8

 1
77253A - TUBE, FUEL MAIN, NO.3
77205-36260

BU60,80

 1
77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE)
95333-08020

BU60,80

 1
77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE)
95333-08020

BU60..TW1

 1
Common parts
90179-08001
90179-08146
90467-13007
90949-01161
90949-01162
91611-40820
94110-40800
