BU60L-MDBT (1988)
Toyota Dyna 200

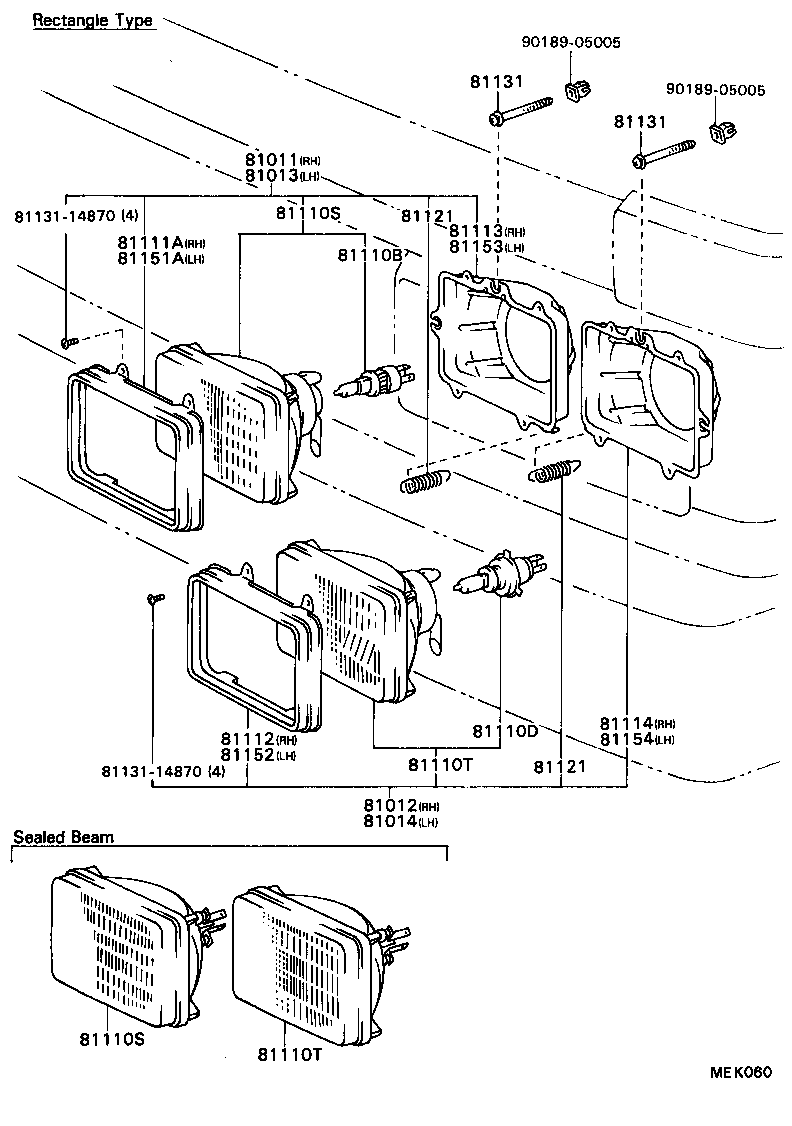

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81011 - HEADLAMP SUB-ASSY, NO.1 | ||||
| 81011-95404 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81011-95403 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81011-95402 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81011-95408 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81011-95426 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81011-95422 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81011-95407 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) |
1 | ||
| 81012 - HEADLAMP SUB-ASSY, NO.2 | ||||
| 81012-95404 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81012-95406 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81012-95411 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 81012-95405 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81012-95430 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81012-95425 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81012-95431 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81013 - HEADLAMP SUB-ASSY, TYPE 1, LH | ||||
| 81013-95405 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81013-95408 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81013-95406 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81013-95425 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81013-95420 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81013-95421 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81013-95401 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) |
1 | ||
| 81014 - HEADLAMP SUB-ASSY, TYPE 2, LH | ||||
| 81014-95406 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81014-95408 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81014-95405 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81014-95426 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81014-95421 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81014-95402 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 81014-95427 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13014 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17008 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,WHITE |
2 | ||
| 90981-13013 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,WHITE |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13014 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17008 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,WHITE |
2 | ||
| 90981-13013 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02018 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02020 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-02039 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) 12V 37.5W,*WB |
2 | ||
| 90981-08010 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02018 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02020 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-02039 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) 12V 37.5W,*WB |
2 | ||
| 90981-08010 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-08011 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 90981-02019 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02041 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 37.5/50W,*WB |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-08011 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 90981-02019 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02041 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 37.5/50W,*WB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14100 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-20210 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-95400 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) LH |
2 | ||
| 90506-16017 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) RH |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-95400 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) LH |
2 | ||
| 90506-16017 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) RH |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-22170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
8 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-22170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
8 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14100 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-20170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| Common parts | ||||
| 90189-05005 | ||||
| 93219-14008 | ||||

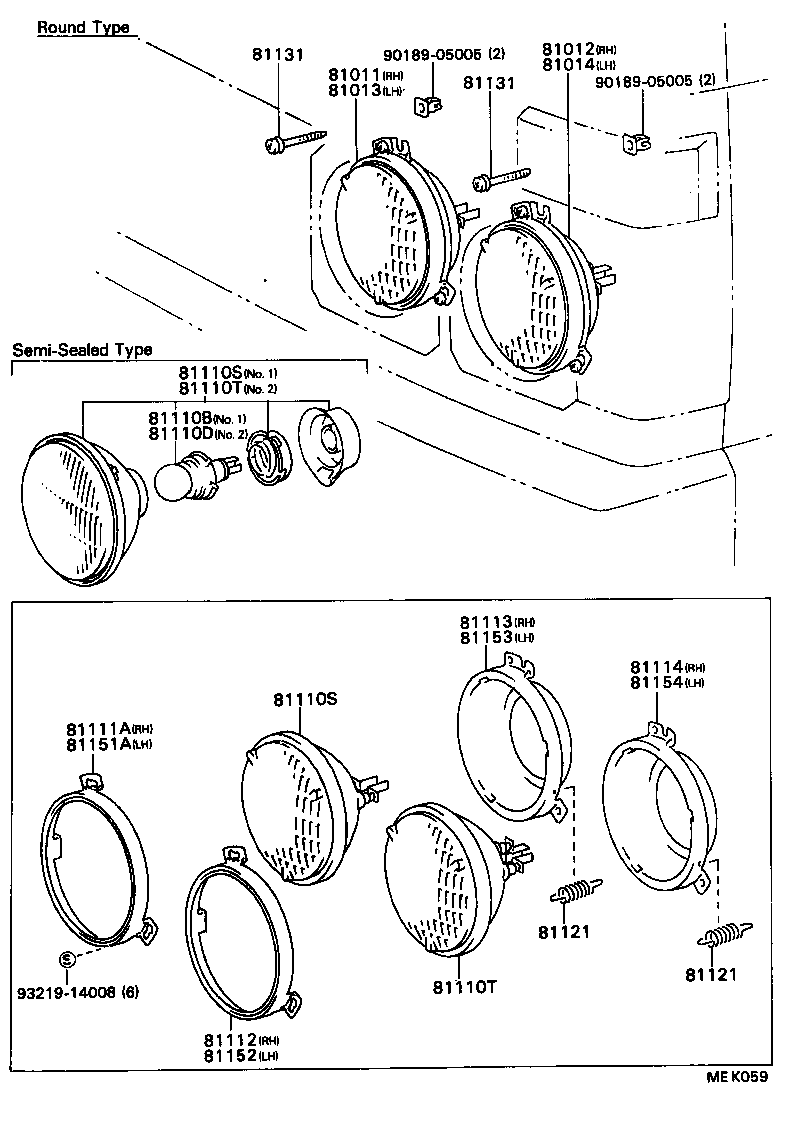

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81011 - HEADLAMP SUB-ASSY, NO.1 | ||||
| 81011-95404 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81011-95403 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81011-95402 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81011-95408 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81011-95426 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81011-95422 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81011-95407 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) |
1 | ||
| 81012 - HEADLAMP SUB-ASSY, NO.2 | ||||
| 81012-95404 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81012-95406 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81012-95411 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 81012-95405 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81012-95430 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81012-95425 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81012-95431 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81013 - HEADLAMP SUB-ASSY, TYPE 1, LH | ||||
| 81013-95405 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81013-95408 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81013-95406 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81013-95425 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81013-95420 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81013-95421 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81013-95401 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) |
1 | ||
| 81014 - HEADLAMP SUB-ASSY, TYPE 2, LH | ||||
| 81014-95406 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT CHINA SPEC,*SSB |
1 | ||
| 81014-95408 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB,YELLOW |
1 | ||
| 81014-95405 |
BU60,61,66,70,83,84,88,91,96..LHD *SSB |
1 | ||
| 81014-95426 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB |
1 | ||
| 81014-95421 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL CHINA SPEC,*SSB |
1 | ||
| 81014-95402 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL |
1 | ||
| 81014-95427 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL *SSB,YELLOW |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13014 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17008 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,WHITE |
2 | ||
| 90981-13013 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,WHITE |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13014 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,YELLOW |
2 | ||
| 90981-17008 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,WHITE |
2 | ||
| 90981-13013 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,WHITE |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02018 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02020 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-02039 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) 12V 37.5W,*WB |
2 | ||
| 90981-08010 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-02018 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02020 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-02039 |
BU65..GEN..CBU;BU66,88..T3..TB..GEN..(CBU,IV3);BU60,61,70,83,84,87,91,96..DSL..(GEN,GHD,SA) 12V 37.5W,*WB |
2 | ||
| 90981-08010 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-08011 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 90981-02019 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02041 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 37.5/50W,*WB |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-02021 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*YSB |
2 | ||
| 90981-08011 |
BU60..TW1..GEN;BU60,83,88,91..LHD..WT..DSL 24V 55/50W,*WSB |
2 | ||
| 90981-02019 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 45/40W,*WSB |
2 | ||
| 90981-02041 |
BU66..T3..TB..GEN;BU60,61,70,83,84,88,91,96..LHD..DSL 12V 37.5/50W,*WB |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-14100 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81114 - RING, SEALED BEAM MOUNTING, NO.2 RH | ||||
| 81114-20210 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-95400 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) LH |
2 | ||
| 90506-16017 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) RH |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-95400 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) LH |
2 | ||
| 90506-16017 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) RH |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-22170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
8 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-22170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
8 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-14261 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-14100 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| 81154 - RING, SEALED BEAM MOUNTING, NO.2 LH | ||||
| 81154-20170 |
BU66..T3..TB..GEN;BU60,61,65,70,8#,9#..DSL..(GEN,GHD,SA) |
1 | ||
| Common parts | ||||
| 81131-14870 | ||||
| 90189-05005 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
