BU60L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU6#,8#,94

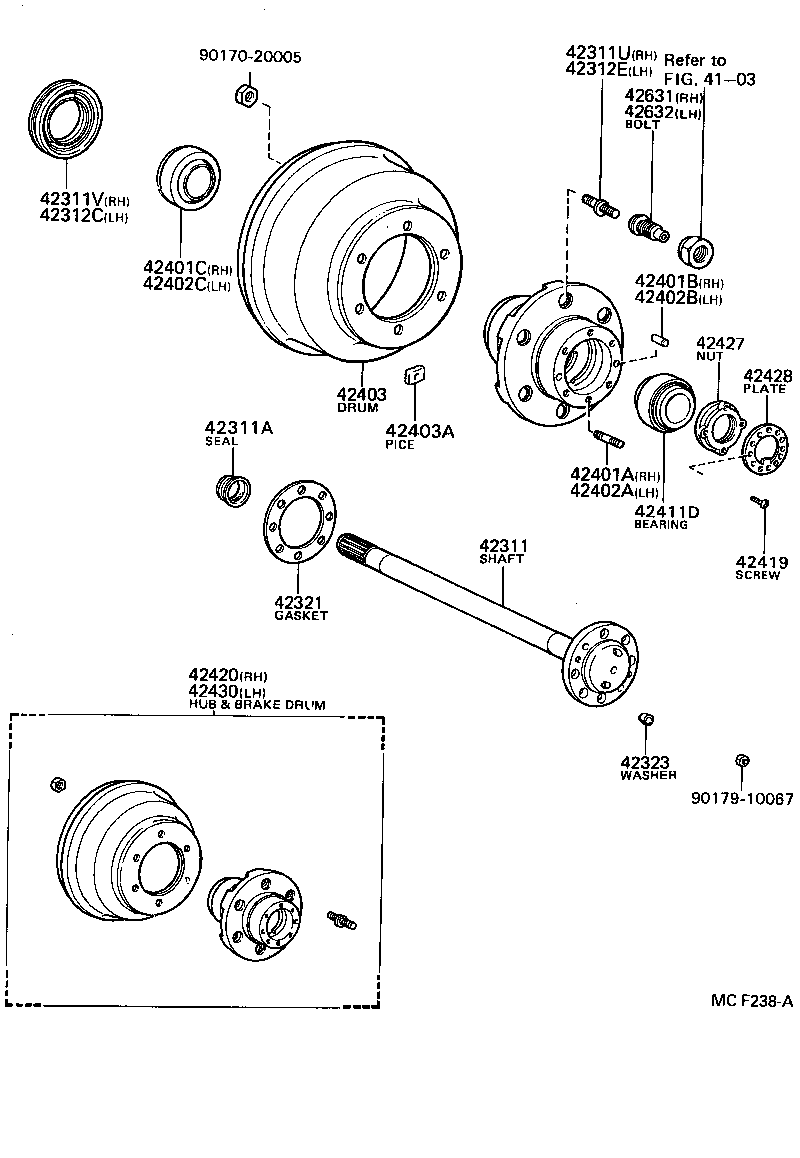

Click highlighted areas on diagram

diagram 4103 42311 42311A 42311U 42311V 42312C 42312E 42321 42323 42401A 42401B 42401C 42402A 42402B 42402C 42403 42403A 42411D 42419 42420 42427 42428 42430 42631 42632 9017020005 9017910067
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-36181

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 2
42311-36051

BU66..TS;BU66..ST;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA

 2
42311-36181

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 2
42311-36181

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-40001

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 2
90310-40001

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 2
90310-38033

BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA

 2
90310-40001

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 2
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02045

BU6#,8#,91,96..WT..DSL..(CBU,IV3)

 5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-75003

BU6#,70,8#,94

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-75003

BU6#,70,8#,94

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02046

BU66..T3..WT;BU60,61,65,67,8#,91,96..WT..(CBU,IV3)

 5
42321 - GASKET, REAR AXLE SHAFT
42321-36040

BU6#,70,8#,94

 2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36010

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 16
42323-36010

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 16
42323-36010

BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA

 12
42323-36010

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 16
42401A - BOLT, STUD (FOR REAR AXLE HUB RH)
90116-10191

BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA

 6
90116-10191

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 8
90116-10191

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 8
90116-10191

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 8
42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH)
90250-10055

BU6#,70,8#,94

 2
42401C - BEARING (FOR REAR AXLE HUB INNER RH)
90368-57010

BU6#,70,8#,94

 1
42402A - BOLT, STUD (FOR REAR AXLE HUB LH)
90116-10191

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 8
90116-10191

BU66..TS;BU66..ST;BU66..T2;BU66..4FC;BU60,61,70,83,84..ARL,GEN,SA

 6
90116-10191

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 8
90116-10191

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 8
42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH)
90250-10055

BU6#,70,8#,94

 2
42402C - BEARING (FOR REAR AXLE HUB INNER LH)
90368-57010

BU6#,70,8#,94

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-36120

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01122

BU66..T3..WT;BU60,61,65,67,8#,9#..WT

60G

 1
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-52043

BU6#,70,8#,94

 2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
93311-16012

BU6#,70,8#,94

 4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-36130

BU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)

 1
42420-36150

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 1
42420-36150

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 1
42427 - NUT, REAR AXLE BEARING LOCK
42427-36030

BU6#,70,8#,94

 2
42428 - PLATE, REAR AXLE LOCK NUT
42428-36020

BU6#,70,8#,94

 2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-36150

BU84..RHD..GEN;BU60,61,83..WT..GEN

HEAVY DUTY SPEC

 1
42430-36150

BU60,61,83,84..WT..GEN

HEAVY DUTY SPEC

 1
42430-36130

BU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)

 1
42631 - BOLT, DOUBLE WHEEL STOP, RH
42631-55031

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 5
42632 - BOLT, DOUBLE WHEEL STOP, LH
42632-55031

BU66..T3..WT;BU60,61,65,67,8#,94..WT

 5
Common parts
90170-20005
90179-10067
Linked diagrams
4103
