Toyota Dyna 200 BU60 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Manufacturers Home
Toyota
GR
DYNA 200
BU60L-MDBT (1988)
3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

BU60L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

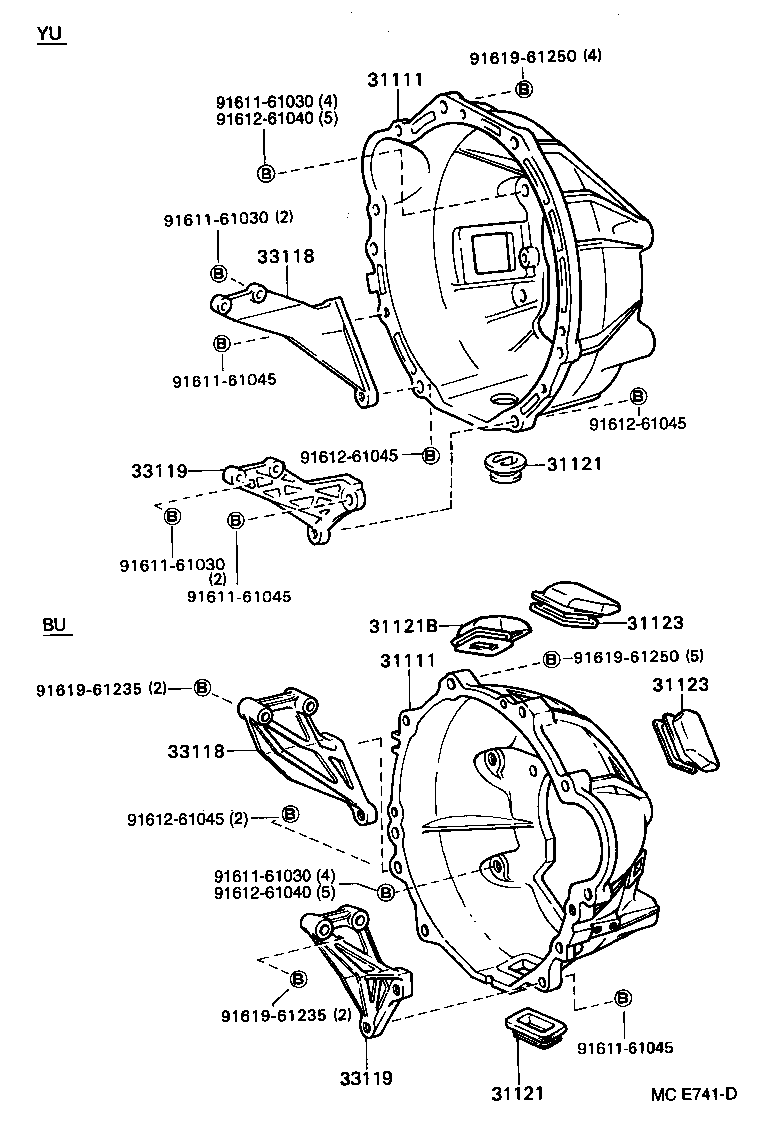

(8808- )BU91..GEN,SA ; (8808- )BU6#,70,8#,94,96

Click highlighted areas on diagram

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-36221	BU88..IV1;BU6#,70,83,84,87,94..5F	10/1989 - 04/1990	1
31111-36221	BU88..IV1;BU6#,70,83,84,87,94..5F	10/1989 - 04/1990	1
31111-36222	BU88..IV1;BU6#,70,83,84,87,94..5F	04/1990 - 01/1993	1
31111-36222	BU88..IV1;BU6#,70,83,84,87,94..5F	04/1990 - 01/1993	1
31111-36221	BU91,96..GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31111-36221	BU91,96..GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31111-36310	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31111-36310	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31111 - HOUSING, CLUTCH
31111-36221	BU88..IV1;BU6#,70,83,84,87,94..5F	10/1989 - 04/1990	1
31111-36221	BU88..IV1;BU6#,70,83,84,87,94..5F	10/1989 - 04/1990	1
31111-36222	BU88..IV1;BU6#,70,83,84,87,94..5F	04/1990 - 01/1993	1
31111-36222	BU88..IV1;BU6#,70,83,84,87,94..5F	04/1990 - 01/1993	1
31111-36221	BU91,96..GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31111-36221	BU91,96..GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31111-36310	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31111-36310	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31121-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31121-36040	BU88..IV1;BU91..ARL;BU6#,70,83,84,87,94..5F	10/1989 - 05/1995	1
31121-36040	BU88..IV1;BU91..ARL;BU6#,70,83,84,87,94..5F	10/1989 - 05/1995	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31121-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
31121-36040	BU88..IV1;BU91..ARL;BU6#,70,83,84,87,94..5F	10/1989 - 05/1995	1
31121-36040	BU88..IV1;BU91..ARL;BU6#,70,83,84,87,94..5F	10/1989 - 05/1995	1
31121B - COVER, CLUTCH HOUSING, NO.3
31121-28030	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31121-28030	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	1
31123 - COVER, CLUTCH HOUSING, NO.2
31121-28040	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	2
31121-28040	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	2
31123 - COVER, CLUTCH HOUSING, NO.2
31121-28040	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	2
31121-28040	BU88..IV1;BU6#,70,83,84,87,94	01/1993 - 05/1995	2
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 02/1993	1
33118-36021	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 02/1993	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 02/1993	1
33118-36021	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 02/1993	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
33119-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
33119-36041	BU6#,70,8#,94;BU91,96..DSL..(ARL,GEN)	02/1993 - 05/1995	1
33119-36041	BU6#,70,8#,94;BU91,96..DSL..(ARL,GEN)	02/1993 - 05/1995	1
33119-36041	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	10/1989 - 02/1993	1
33119-36041	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	10/1989 - 02/1993	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
33119-36040	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	08/1988 - 10/1989	1
33119-36041	BU6#,70,8#,94;BU91,96..DSL..(ARL,GEN)	02/1993 - 05/1995	1
33119-36041	BU6#,70,8#,94;BU91,96..DSL..(ARL,GEN)	02/1993 - 05/1995	1
33119-36041	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	10/1989 - 02/1993	1
33119-36041	BU91,96..ARL,GEN;BU6#,70,8#,94..5F	10/1989 - 02/1993	1
Common parts
91611-61030
91611-61045
91612-61040
91612-61045
91619-61235
91619-61250

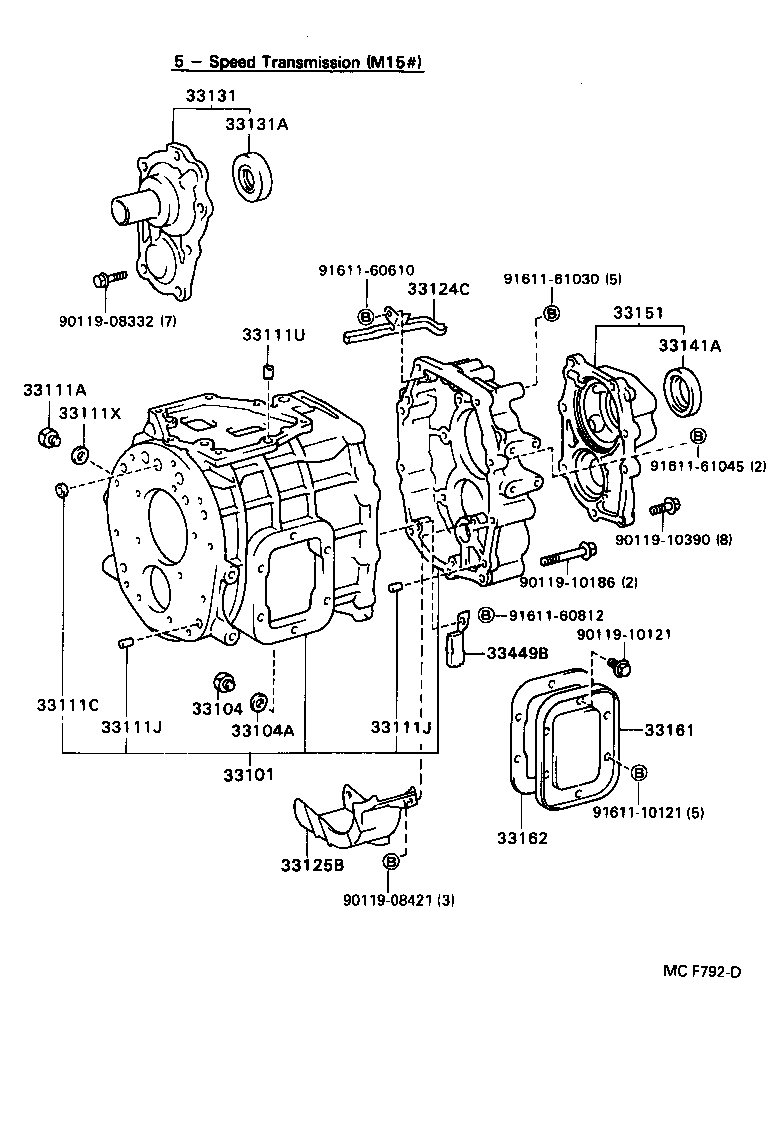

(8808- )BU91..GEN,SA ; (8808- )BU6#,70,8#,94,96

Click highlighted areas on diagram

Part #	Description	Period	Qty
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36080	BU91..GEN,SA;BU6#,70,8#,94,96	10/1992 - 08/1994	1
33101-36051	BU91..GEN,SA;BU6#,70,8#,94,96..5F	11/1990 - 10/1992	1
33101-36050	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 11/1990	1
33101-36081	BU91..GEN,SA;BU6#,70,8#,94,96	08/1994 - 01/1995	1
33101-36082	BU91..GEN,SA;BU6#,70,8#,94,96	01/1995 - 05/1995	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	BU6#,70,8#,9#..5F	08/1988 - 05/1995	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	BU6#,70,8#,9#..5F	08/1988 - 05/1995	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU91,96..GEN;BU6#,70,8#,94 L=16,OD=12	10/1992 - 12/1992	4
90250-12146	BU6#,70,8#,9#..5F L=17,OD=12	08/1988 - 05/1995	2
90250-12216	BU6#,70,8#,94;BU91,96..ARL,GEN L=14,OD=12	10/1992 - 05/1995	2
90250-12002	BU91..GEN,SA;BU6#,70,8#,94,96 L=16,OD=12	12/1992 - 05/1995	4
90250-12216	BU6#,70,8#,9#..5F L=14,OD=12	08/1988 - 10/1992	2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002	BU91,96..GEN;BU6#,70,8#,94 L=16,OD=12	10/1992 - 12/1992	4
90250-12146	BU6#,70,8#,9#..5F L=17,OD=12	08/1988 - 05/1995	2
90250-12216	BU6#,70,8#,94;BU91,96..ARL,GEN L=14,OD=12	10/1992 - 05/1995	2
90250-12002	BU91..GEN,SA;BU6#,70,8#,94,96 L=16,OD=12	12/1992 - 05/1995	4
90250-12216	BU6#,70,8#,9#..5F L=14,OD=12	08/1988 - 10/1992	2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	BU91..GEN,SA;BU6#,70,8#,94,96..5F L=11,OD=11	08/1988 - 05/1995	1
90253-13017	BU91..GEN,SA;BU6#,70,8#,94,96..5F L=12,OD=13	08/1988 - 05/1995	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	BU6#,70,8#,9#..5F	08/1988 - 05/1995	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36010	BU91..GEN,SA;BU6#,70,8#,94,96..5F	05/1990 - 10/1992	1
33125-36020	BU91..GEN,SA;BU6#,70,8#,94,96	10/1992 - 05/1995	1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36050	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 10/1989	1
33018-36060	BU91,96..GEN;BU6#,70,8#,94..5F	10/1989 - 10/1992	1
33018-36060	BU91..GEN,SA;BU6#,70,8#,94,96	10/1992 - 05/1995	1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36010	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 08/1992	1
33017-36030	BU91..GEN,SA;BU6#,70,8#,94,96	08/1992 - 05/1994	1
33017-36031	BU91..GEN,SA;BU6#,70,8#,94,96	05/1994 - 05/1995	1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010	BU6#,70,8#,9#..5F	08/1988 - 05/1995	1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020	BU6#,70,8#,9#..5F	08/1988 - 05/1995	1
33449B - MAGNET, TRANSMISSION
33449-36010	BU91..GEN,SA;BU6#,70,8#,94,96..5F	08/1988 - 05/1995	1
Common parts
90119-08332
90119-08421
90119-10121
90119-10186
90119-10390
91611-10121
91611-60610
91611-60812
91611-61030
91611-61045

BU60L-MDBT (1988)

(8808- )BU91..GEN,SA ; (8808- )BU6#,70,8#,94,96

(8808- )BU91..GEN,SA ; (8808- )BU6#,70,8#,94,96
