BU60L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995

Engine B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

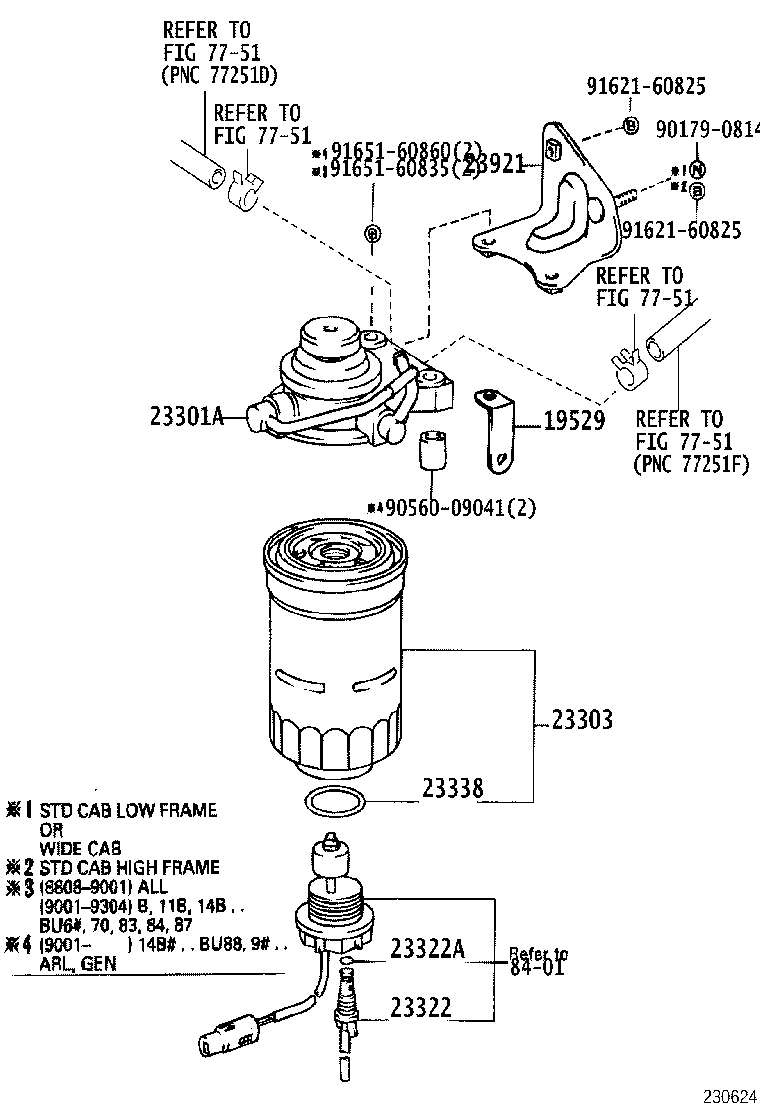

ILLUST NO. 1 OF 4(8808- )

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
19529 - CLAMP
19529-56010	14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94	08/1988 - 01/1990	1
19529-56010	B,11B,14B..BU6#,70,83,84,87	01/1990 - 04/1993	1
19529-56010	B,11B,14B..BU6#,70,83,84..CBU,IV3	04/1993 - 05/1995	1
23301A - CAP ASSY, FUEL FILTER
23301-56260	B,11B,14B..BU60,61,66,70,83,84	09/1993 - 05/1995	1
23301-56050	B,11B,14B..BU60,61,66,70,83,84,87	08/1988 - 04/1993	1
23301-56050	B,11B,14B..BU60,61,66,70,83,84..CBU,IV3	04/1993 - 09/1993	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	B..BU60,70,83;11B..BU65..IV3	10/1990 - 05/1995	1
23303-64010	B..BU60,70,83	08/1988 - 10/1990	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	B..BU60,70,83;11B..BU65..IV3	10/1990 - 05/1995	1
23322-64010	14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94	08/1988 - 01/1990	1
23322-64010	B..BU60,70,83	01/1990 - 10/1990	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94	08/1988 - 03/1997	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94	08/1988 - 03/1997	1
23921 - SUPPORT, FUEL FILTER
23921-56011	B,11B,14B..BU60,61,66,70,83,84,87	08/1988 - 04/1993	1
23921-56011	B,11B,14B..BU60,61,66,70,83,84..CBU,IV3	04/1993 - 05/1995	1
Common parts
90179-08141
90560-09041
91621-60825
91651-60835
91651-60860
Linked diagrams
7751
8401
