BU60L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

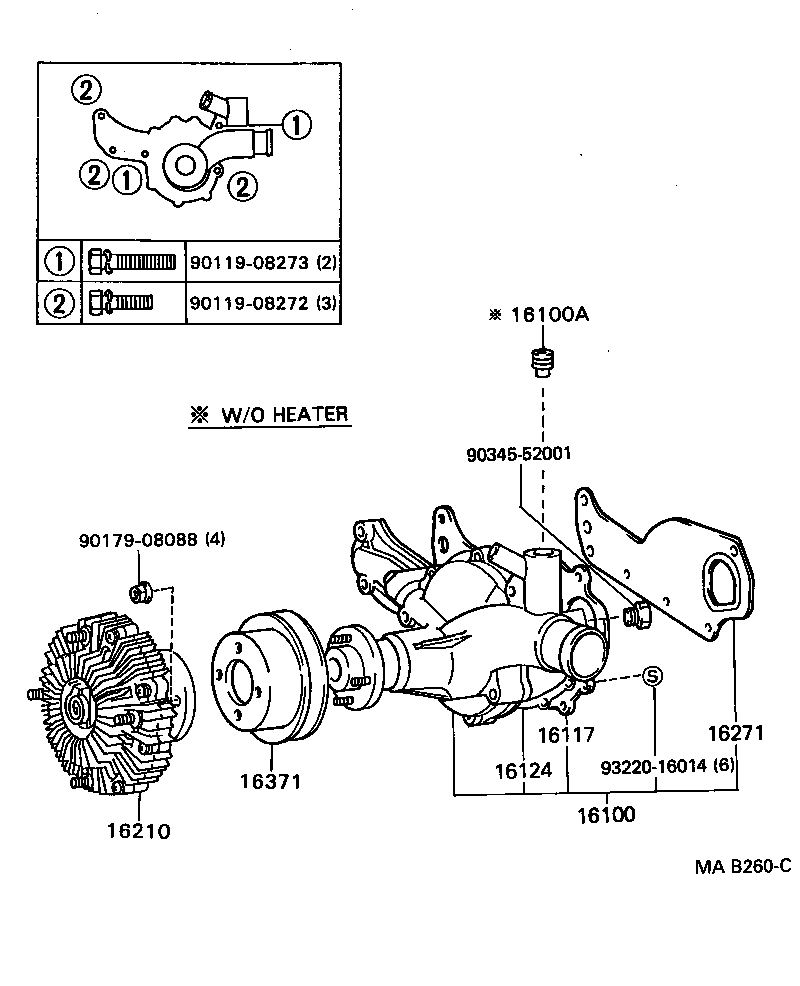

Click highlighted areas on diagram

diagram 16100 16100A 16117 16124 16210 16271 16371 9011908272 9011908273 9017908088 9034552001 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59175

14B..BU66..T3..TB..GEN;11B..BU61..GEN..(CBU,IV3);B,11B,14B..BU60,65,70,83,84,88,9#..GEN,GHD,SA

 1
16100-59175

11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,66,70,83,84,94,96..5F

 1
16100A - PLUG, WATER PUMP
90345-54005

11B..BU65..GEN..CBU;14B..BU66..T3..TB..GEN;B,11B,14B..BU60,61,67,70,8#,9#..GEN,GHD

 1
16117 - PLATE, WATER PUMP
16117-58010

B,11B,14B#..BU60,61,65,66,70,8#,9#

 1
16124 - GASKET, WATER PUMP COVER
16124-58010

B,11B,14B#..BU60,61,65,66,70,8#,9#

 1
16271 - GASKET, WATER PUMP
16271-56030

B,11B,14B#..BU6#,70,8#,9#

 1
16371 - PULLEY, FAN
16371-56070

11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,66,70,83,84,94,96..5F

 1
16371-56070

14B..BU66..T3..TB..GEN;11B..BU61..GEN..(CBU,IV3);B,11B,14B..BU60,65,70,83,84,88,9#..GEN,GHD,SA

 1
Common parts
90119-08272
90119-08273
90179-08088
90345-52001
93220-16014
