BU60L-MDBT (1988)

Toyota Dyna 200

Production Aug 1988 - May 1995
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

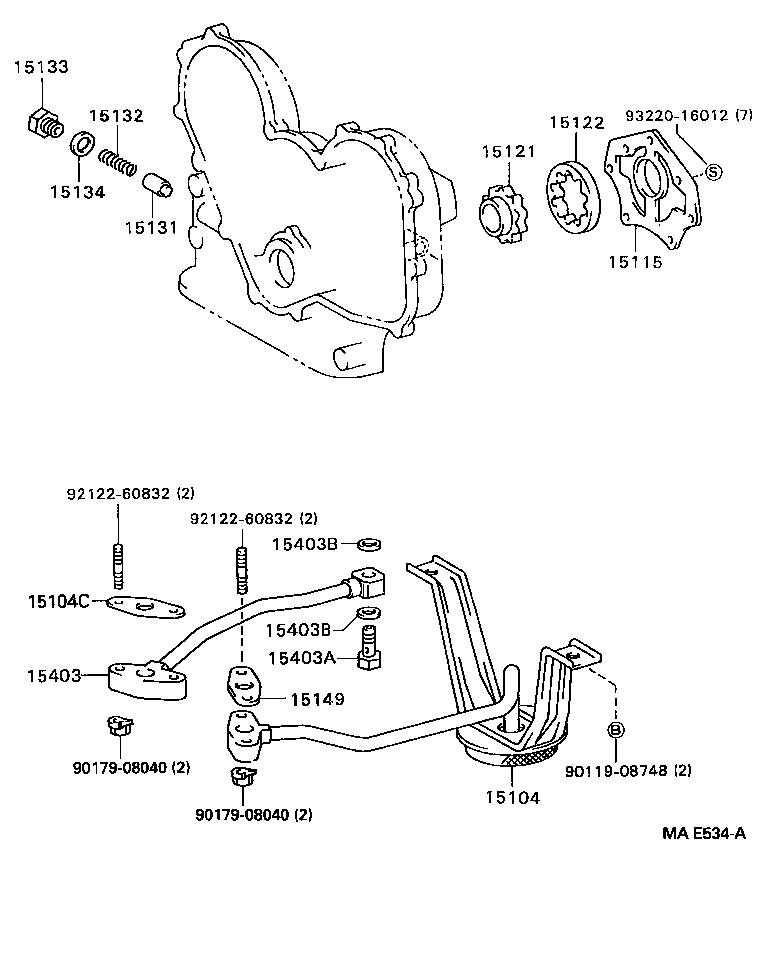

Click highlighted areas on diagram

diagram 15104 15104C 15115 15121 15122 15131 15132 15133 15134 15149 15403 15403A 15403B 15403B 9011908748 9017908040 9017908040 9212260832 9212260832 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-56060

B,11B,14B..BU6#,70,8#,9#

 1
15104C - GASKET(FOR OIL STRAINER)
15149-56020

B,11B,14B#..BU6#,70,8#,9#

 1
15115 - COVER, OIL PUMP
15115-56040

B,11B,14B..BU6#,70,8#,9#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-56040

B,11B,14B..BU6#,70,8#,9#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-56040

B,11B,14B..BU6#,70,8#,9#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

B,11B,14B#..BU6#,70,8#,9#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-56080

B,11B,14B#..BU6#,70,8#,9#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

B,11B,14B#..BU6#,70,8#,9#

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

B,11B,14B#..BU6#,70,8#,9#

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-56020

B,11B,14B#..BU6#,70,8#,9#

 1
15403 - PIPE SUB-ASSY, OIL PUMP OUTLET
15403-56050

B,11B,14B#..BU6#,70,8#,9#

 1
15403A - UNION(FOR OIL PUMP OUTLET PIPE)
90401-20009

B,11B,14B#..BU6#,70,8#,9#

 1
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-20018

B,11B,14B#..BU6#,70,8#,9#

 2
15403B - GASKET(FOR OIL PUMP OUTLET PIPE)
90430-20018

B,11B,14B#..BU6#,70,8#,9#

 2
Common parts
90119-08748
90179-08040
92122-60832
93220-16012
