BU60L-MDB3 (1988)
Toyota Dyna 200
(8808- )BU6#,8#,9#

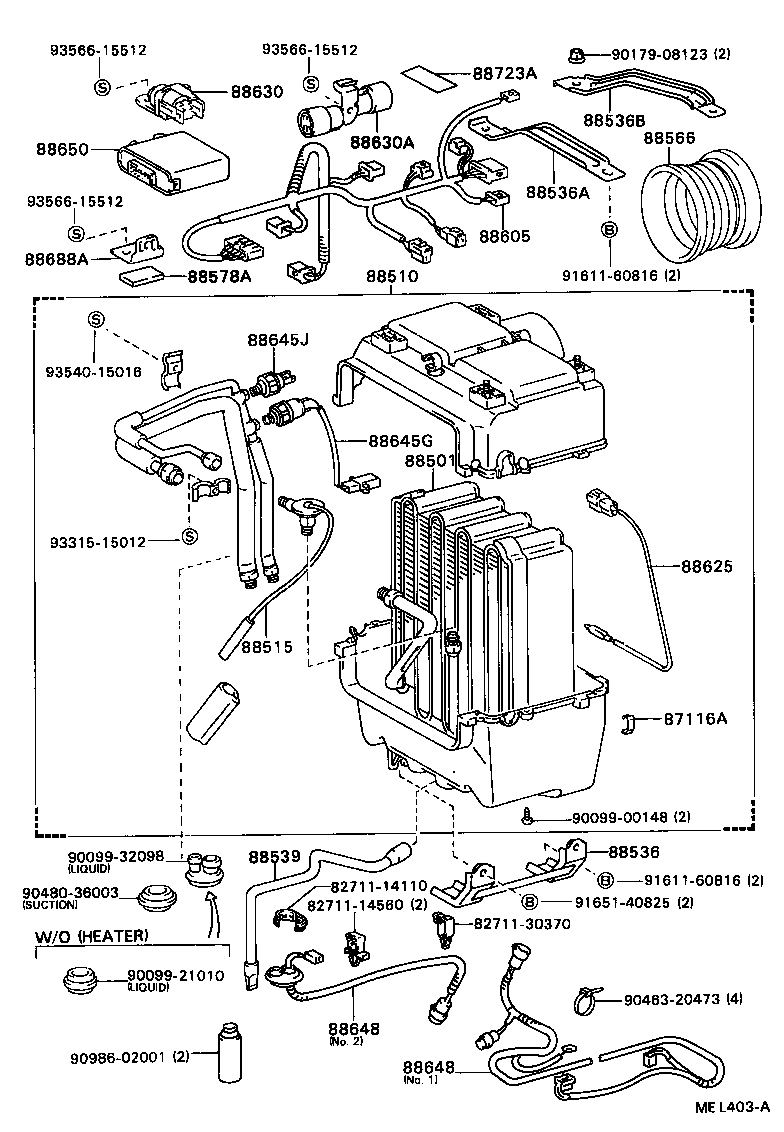

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-37030 |
BU60..T3..ST;BU61,67,70,84..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95406 |
BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN |
1 | ||
| 88510-25030 |
BU60..T3..ST;BU61,67,70,84..LHD |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95403 |
BU66,84;BU88..IV1;BU96..GEN;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88536-95403 |
BU88..IV1;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..DSL..GEN;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88536-95403 |
BU88..IV1;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU60,83..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88536-95403 |
BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU60,83,87..RHD;BU66,84..T3..TB;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95404 |
BU66,84;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88536-95404 |
BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88536-95404 |
BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU66,84..T3..TB;BU60,83,87..RHD;BU61,65,70..CBU,IV1 |
1 | ||
| 88536-95404 |
BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95406 |
BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN |
1 | ||
| 88536-95406 |
BU60..T3..ST;BU61,67,70,84..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95410 |
BU61..IV1;BU60..T3..ST;BU61,70,84..LHD;BU66..T3..TB..GEN |
1 | ||
| 88539-95410 |
BU60..T3..ST;BU61,67,70,84..LHD |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-95407 |
BU66,84;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88566-95407 |
BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88566-95407 |
BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU66,84..T3..TB;BU60,83,87..RHD;BU61,65,70..CBU,IV1 |
1 | ||
| 88566-95407 |
BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD |
1 | ||
| 88578A - PACKING, COOLER STABILIZER AMPLIFIER | ||||
| 88578-95400 |
BU96..GEN;BU60..T3..ST;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,70,84,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
2 | ||
| 88578-95400 |
BU60..T3..ST;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..DSL..GEN;BU66,70,84,87,94..5F;BU60,65,83,88..RHD..(GEN,GHD) |
2 | ||
| 88578-95400 |
BU60..T3..ST;BU70,84,87,94;BU61..CBU,IV1;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU66,96..LHD..T3..TB..DSL;BU60,65,83,88..RHD..(GEN,GHD) |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95405 |
BU66,84;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88605-95405 |
BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU60,83..RHD..WT;BU61,65,70..CBU,IV1 |
1 | ||
| 88605-95405 |
BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU66,84..T3..TB;BU60,83,87..RHD;BU61,65,70..CBU,IV1 |
1 | ||
| 88605-26600 |
BU67,70,84;BU60..T3..ST;BU61..WT..CBU;BU61..LHD..IV3;BU60,65,66,83,87..RHD |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-60020 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..GEN;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU65,70,94..CBU,IV1;BU60,83,88..RHD..WT |
1 | ||
| 88630-60020 |
BU66,84;BU96..GEN;BU61..CBU;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83,88..RHD..WT;BU65,70,94..CBU,IV1 |
1 | ||
| 88630-60020 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD;BU65,70,94..CBU,IV1 |
1 | ||
| 88630-60020 |
BU61..CBU;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU66,84..T3..TB;BU60,83,87,88..RHD;BU65,70,94..CBU,IV1 |
1 | ||
| 88630-60020 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU65,70,94..CBU,IV1;BU60,83,88..RHD..WT |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95403 |
BU91..TD;BU60..T3..ST;BU61,66,70,84,96..LHD |
1 | ||
| 88630-95403 |
BU60..T3..ST;BU66..T3..TB;BU61,70,84,96..LHD..DSL |
1 | ||
| 88630-95403 |
BU96..CBU;BU60..T3..ST;BU61,67,70,84..LHD |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95420 |
BU60..ST..IV3;BU61..LHD..IV3;BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3 |
1 | ||
| 88648-95420 |
BU83..GHD;BU83..LHD;BU61..ST..IV3;BU83..RHD..GEN..CBU;BU60,61,66,84..LHD..IV3;BU60,61,65,84..GEN..CBU |
1 | ||
| 88648-95410 |
BU83..GHD;BU61,84..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,66,84..LHD..IV3;BU60,83..RHD..GEN..CBU |
1 | ||
| 88648-95410 |
BU83..GHD;BU61,84..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,84..LHD..IV3;BU66,87..T3..TB..5F;BU60,83..RHD..GEN..CBU |
1 | ||
| 88648-95420 |
BU83..GHD;BU61..ST..IV3;BU83..RHD..GEN..CBU;BU66,83..LHD..T3..TB;BU60,61,84..LHD..IV3;BU60,61,84..GEN..CBU;BU65,87..RHD..(GEN,GHD) |
1 | ||
| 88648-95410 |
BU60..ST..IV3;BU61..LHD..IV3;BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3 |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95420 |
BU60..ST..IV3;BU61..LHD..IV3;BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3 |
1 | ||
| 88648-95420 |
BU83..GHD;BU83..LHD;BU61..ST..IV3;BU83..RHD..GEN..CBU;BU60,61,66,84..LHD..IV3;BU60,61,65,84..GEN..CBU |
1 | ||
| 88648-95410 |
BU83..GHD;BU61,84..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,66,84..LHD..IV3;BU60,83..RHD..GEN..CBU |
1 | ||
| 88648-95410 |
BU83..GHD;BU61,84..CBU;BU60..T3..ST;BU61..ST..IV3;BU61,84..LHD..IV3;BU66,87..T3..TB..5F;BU60,83..RHD..GEN..CBU |
1 | ||
| 88648-95420 |
BU83..GHD;BU61..ST..IV3;BU83..RHD..GEN..CBU;BU66,83..LHD..T3..TB;BU60,61,84..LHD..IV3;BU60,61,84..GEN..CBU;BU65,87..RHD..(GEN,GHD) |
1 | ||
| 88648-95410 |
BU60..ST..IV3;BU61..LHD..IV3;BU65..GEN..CBU;BU60,83,84..RHD..GEN..IV3 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-14030 |
BU66,84;BU96..GEN;BU61..CBU;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83,88..RHD..WT;BU65,70,94..CBU,IV1 |
1 | ||
| 88650-14030 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU65,70,94..CBU,IV1;BU60,83,88..RHD..WT |
1 | ||
| 88650-14030 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..GEN;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU65,70,94..CBU,IV1;BU60,83,88..RHD..WT |
1 | ||
| 88650-14030 |
BU61..CBU;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU66,84..T3..TB;BU60,83,87,88..RHD;BU65,70,94..CBU,IV1 |
1 | ||
| 88650-14030 |
BU91..TD;BU61..CBU;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD;BU65,70,94..CBU,IV1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-95425 |
BU91..TD;BU91..ARL;BU96..GEN;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU66,70,84,87,94;BU60,83,88..RHD..WT;BU61,65..GEN..(CBU,IV1) |
1 | ||
| 88688-95425 |
BU91..TD;BU91..ARL;BU96..LHD;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU66,70,84,87,94;BU60,83,88..RHD..WT;BU61,65..GEN..(CBU,IV1) |
1 | ||
| 88688-95425 |
BU96..GEN;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU66,70,84,94;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83,88..RHD..WT;BU61,65..GEN..(CBU,IV1) |
1 | ||
| 88688-95425 |
BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU70,84,87,94;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83,88..RHD;BU61,65..GEN..(CBU,IV1);BU66,96..LHD..T3..TB..DSL |
1 | ||
| 88688-95425 |
BU91..TD;BU91..ARL;BU96..LHD;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD;BU66,70,84,87,94;BU61,65..GEN..(CBU,IV1) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-14560 | ||||
| 82711-30370 | ||||
| 90099-00148 | ||||
| 90099-21010 | ||||
| 90099-32098 | ||||
| 90179-08123 | ||||
| 90463-20473 | ||||
| 90480-36003 | ||||
| 90986-02001 | ||||
| 91611-60816 | ||||
| 91651-40825 | ||||
| 93315-15012 | ||||
| 93540-15016 | ||||
| 93566-15512 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88568B - FILTER, AIR | ||||
| 88568-95400 |
BU66,84;BU96..GEN;BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU60,83,88..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88568-95400 |
BU91..TD;BU91..ARL;BU96..GEN;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88568-95400 |
BU91..TD;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD..WT;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88568-95400 |
BU91..TD;BU91..ARL;BU96..LHD;BU66,84,87;BU60..T3..ST;BU61..ST..IV3;BU91..RHD..CBU;BU61..LHD..IV3;BU60,83,88..RHD;BU61,65,70,94..CBU,IV1 |
1 | ||
| 88568-95400 |
BU91..ARL;BU60..T3..ST;BU61..ST..IV3;BU61..LHD..IV3;BU91..RHD..CBU;BU96..LHD..DSL;BU66,84..T3..TB;BU60,83,87,88..RHD;BU61,65,70,94..CBU,IV1 |
1 | ||
