BU60L-MDB (1987)

Toyota Dyna 200

Production Aug 1987 - Aug 1988
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

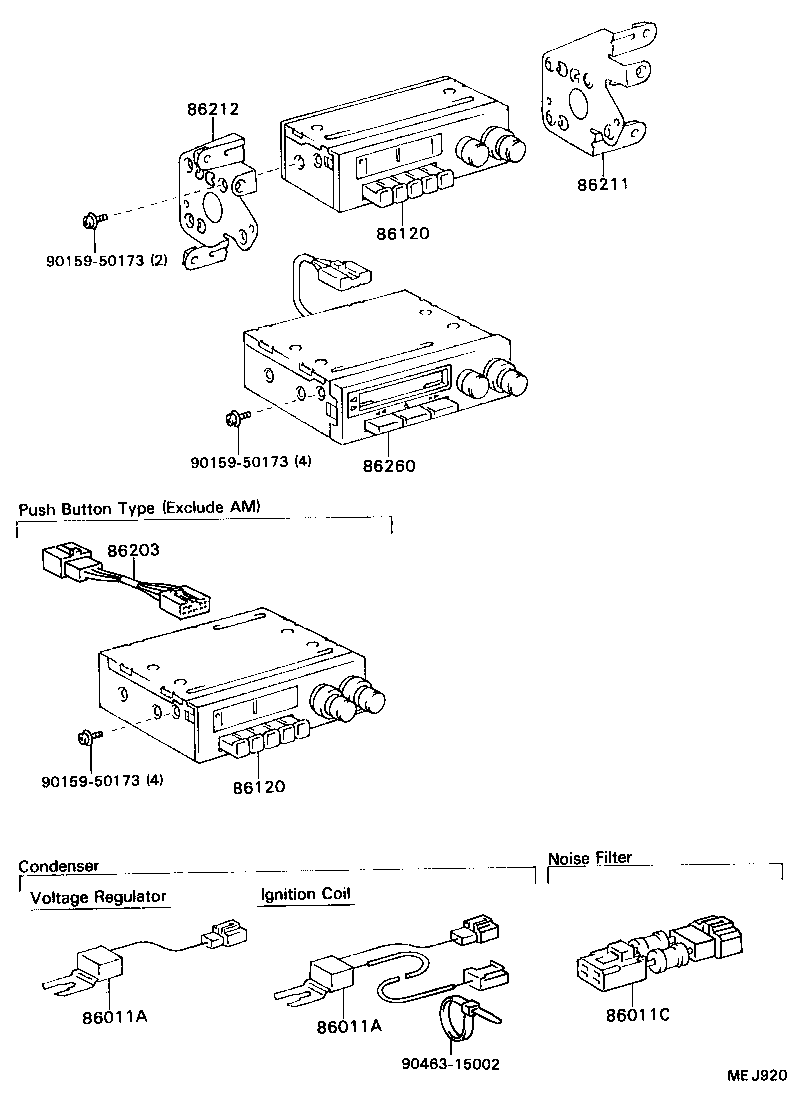

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86120 86120 86203 86211 86212 86260 9015950173 9015950173 9015950173 9046315002
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

BU65,80..RHD;BU80..LHD..CBU;BU60,61,62,70,81,82,85,86

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

BU65,80..RHD;BU80..LHD..CBU;BU60,61,62,70,81,82,85,86

 1
86011C - FILTER, NOISE
90980-05049

BU65,80..RHD;BU80..LHD..CBU;BU60,61,62,70,81,82,85,86..ARL,GEN,GHD

 1
86120 - RECEIVER ASSY, RADIO
86120-32280

BU65..CBU;BU60,61,62,70,8#..ARL,GEN,GHD

MATSUSHITA,AM/FM MPX

 1
86120-16460

BU65..GEN..CBU;BU60,61,62,70,8#..GEN,GHD

MATSUSHITA,ID=5108,MW/SW

 1
86120-16530

BU65..CBU;BU60,61,62,70,8#

MATSUSHITA,ID=5010,AM

 1
86120 - RECEIVER ASSY, RADIO
86120-32280

BU65..CBU;BU60,61,62,70,8#..ARL,GEN,GHD

MATSUSHITA,AM/FM MPX

 1
86120-16460

BU65..GEN..CBU;BU60,61,62,70,8#..GEN,GHD

MATSUSHITA,ID=5108,MW/SW

 1
86120-16530

BU65..CBU;BU60,61,62,70,8#

MATSUSHITA,ID=5010,AM

 1
86211 - BRACKET, RADIO, NO.1
86211-95406

BU85..RHD;BU6#,70,80,81,82,86

 1
86212 - BRACKET, RADIO, NO.2
86212-95406

BU85..LHD;BU6#,70,80,81,82

 1
86260 - TAPE PLAYER ASSY
86260-17011

BU65..CBU;BU60,61,62,70,8#..ARL,GEN,GHD

W(STEREO=AUTO-REVERSE)

 1
Common parts
90159-50173
90463-15002
