BU60L-MDB (1988)
Toyota Dyna 200
(8808- )

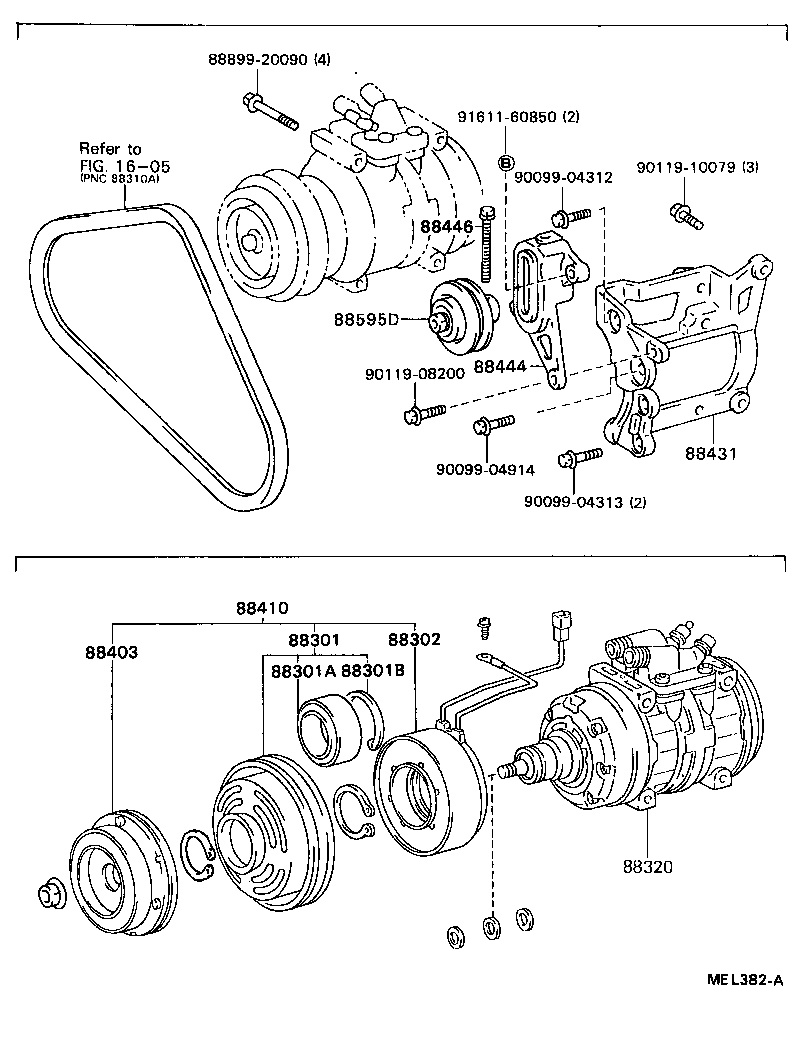

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-26030 |
BU91,96..GEN;BU60..T3..ST;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,88,94..GEN,GHD,SA |
1 | ||
| 88412-26030 |
BU88..RHD;BU60..T3..ST;BU88..LHD..CBU;BU91,96..ARL,GEN;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88412-26030 |
BU60..T3..ST;BU88,91,96..ARL,GEN;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88412-26030 |
BU60..T3..ST;BU65..GEN..CBU;BU88..LHD..CBU;BU60,83,88..RHD;BU61,70,84,87,94..GEN,GHD,SA;BU66,91,96..T3..TB..DSL..(ARL,GEN) |
1 | ||
| 88412-26030 |
BU60..T3..ST;BU65..GEN..CBU;BU88..LHD..CBU;BU60,83,88..RHD;BU91,96..ARL,GEN;BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60020 |
BU91,96..GEN;BU60..T3..ST;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,88,94..GEN,GHD,SA |
1 | ||
| 88411-36270 |
BU61,84..LHD;BU60..T3..ST;BU66..T3..TB..GEN |
1 | ||
| 88411-60020 |
BU66..T3..TB..GEN;BU60,61,70,83,84..LHD |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-36280 |
BU66;BU60..T3..ST;BU60,65,83..RHD..WT;BU61,70,84,87..GEN,GHD,SA |
1 | ||
| 88320-36280 |
BU60..T3..ST;BU66..T3..TB;BU60,65,83..RHD;BU61,70,84,87..GEN,GHD,SA |
1 | ||
| 88320-36380 |
BU70,87;BU83..GHD;BU61,84..CBU;BU61..ST..IV3;BU84..LHD..IV3;BU60..T3..ST..CBU;BU60,83..RHD..GEN..CBU |
1 | ||
| 88320-36280 |
BU60..T3..ST;BU66..T3..TB..GEN;BU61,70,84,87..GEN,GHD;BU60,65,83..RHD..(GEN,GHD) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
BU91,96..GEN;BU60..T3..ST;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,88,94..GEN,GHD,SA |
1 | ||
| 88403-16011 |
BU60..T3..ST;BU88,91,96..ARL,GEN;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88403-16011 |
BU60..T3..ST;BU65..GEN..CBU;BU88..LHD..CBU;BU60,83,88..RHD;BU91,96..ARL,GEN;BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88403-16011 |
BU88..RHD;BU60..T3..ST;BU88..LHD..CBU;BU91,96..ARL,GEN;BU60,65,83..RHD..(GEN,GHD);BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88403-16011 |
BU60..T3..ST;BU65..GEN..CBU;BU88..LHD..CBU;BU60,83,88..RHD;BU61,70,84,87,94..GEN,GHD,SA;BU66,91,96..T3..TB..DSL..(ARL,GEN) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-36220 |
BU66;BU91,96..TD;BU88,91..ARL;BU60..T3..ST;BU60,65,83..RHD..WT;BU61,70,84,87..GEN,GHD,SA |
1 | ||
| 88410-36270 |
BU65,96..RHD..GEN;BU66..T3..TB..GEN;BU60,61,70,83,84,87..GEN,GHD |
1 | ||
| 88410-36220 |
BU70,87;BU83..GHD;BU61..ST..IV3;BU83..RHD..GEN..CBU;BU60,61,84..LHD..IV3;BU66,83..LHD..T3..TB;BU60,61,84..GEN..(CBU,IV1) |
1 | ||
| 88410-36270 |
BU65..GEN..CBU;BU60,61,66,70,83,84,87..GEN,GHD |
1 | ||
| 88410-36220 |
BU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,83,84,87..GEN,GHD |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-36400 |
BU60..T3..ST;BU66,96..ARL,GEN;BU61,70,84,87,94..GEN,GHD,SA;BU60,65,83,88,91..RHD..WT..(ARL,GEN,GHD) |
1 | ||
| 88431-36402 |
BU91..TD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU66,70,87,94,96..GEN,GHD;BU60,83,91..RHD..GEN..CBU |
1 | ||
| 88431-36402 |
BU88..IV1;BU70,87,94;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU66,96..LHD..T3..TB..DSL;BU60,83,91..RHD..(ARL,GEN)..CBU |
1 | ||
| 88431-36401 |
BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU60,83,91..RHD..GEN..CBU;BU66,70,87,94,96..GEN,GHD |
1 | ||
| 88431-36402 |
BU91..TD;BU96..LHD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU66,70,87,94..5F;BU61,84..LHD..IV3;BU60,83,91..RHD..GEN..CBU |
1 | ||
| 88431-36402 |
BU91..TD;BU96..LHD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU66,70,87,94;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU60,83,91..RHD..(ARL,GEN)..CBU |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-36110 |
BU60..T3..ST;BU66,96..ARL,GEN;BU61,70,84,87,94..GEN,GHD,SA;BU60,65,83,88,91..RHD..WT..(ARL,GEN,GHD) |
1 | ||
| 88444-36160 |
BU91..TD;BU96..LHD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU66,70,87,94..5F;BU61,84..LHD..IV3;BU60,83,91..RHD..GEN..CBU |
1 | ||
| 88444-36160 |
BU91..TD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU66,70,87,94,96..GEN,GHD;BU60,83,91..RHD..GEN..CBU |
1 | ||
| 88444-36160 |
BU88..IV1;BU70,87,94;BU60..T3..ST;BU61..ST..IV3;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU66,96..LHD..T3..TB..DSL;BU60,83,91..RHD..(ARL,GEN)..CBU |
1 | ||
| 88444-36160 |
BU91..TD;BU96..LHD;BU88..IV1;BU60..T3..ST;BU61..ST..IV3;BU66,70,87,94;BU83,84..GHD,SA;BU61,84..CBU,IV1;BU61,84..LHD..IV3;BU60,83,91..RHD..(ARL,GEN)..CBU |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-12160 |
BU91..TD;BU91..ARL;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU60,65,83,88..RHD;BU61,66,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88440-12160 |
BU91..TD;BU60..T3..ST;BU66,96..ARL,GEN;BU61,70,84,87,94..GEN,GHD,SA;BU60,65,83,88,91..RHD..WT..(ARL,GEN,GHD) |
1 | ||
| 88440-12160 |
BU66;BU91..TD;BU91..ARL;BU96..LHD;BU60..T3..ST;BU91..RHD..CBU;BU60,65,83,88..RHD..WT;BU61,70,84,87,94..GEN,GHD,SA |
1 | ||
| 88440-12160 |
BU91..ARL;BU60..T3..ST;BU91..RHD..CBU;BU60,65,83,88..RHD;BU66,96..LHD..T3..TB..DSL;BU61,70,84,87,94..GEN,GHD,SA |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04312 | ||||
| 90099-04313 | ||||
| 90099-04914 | ||||
| 90119-08200 | ||||
| 90119-10079 | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 1605 | ||||
