BU60L-MDB (1988)
Toyota Dyna 200

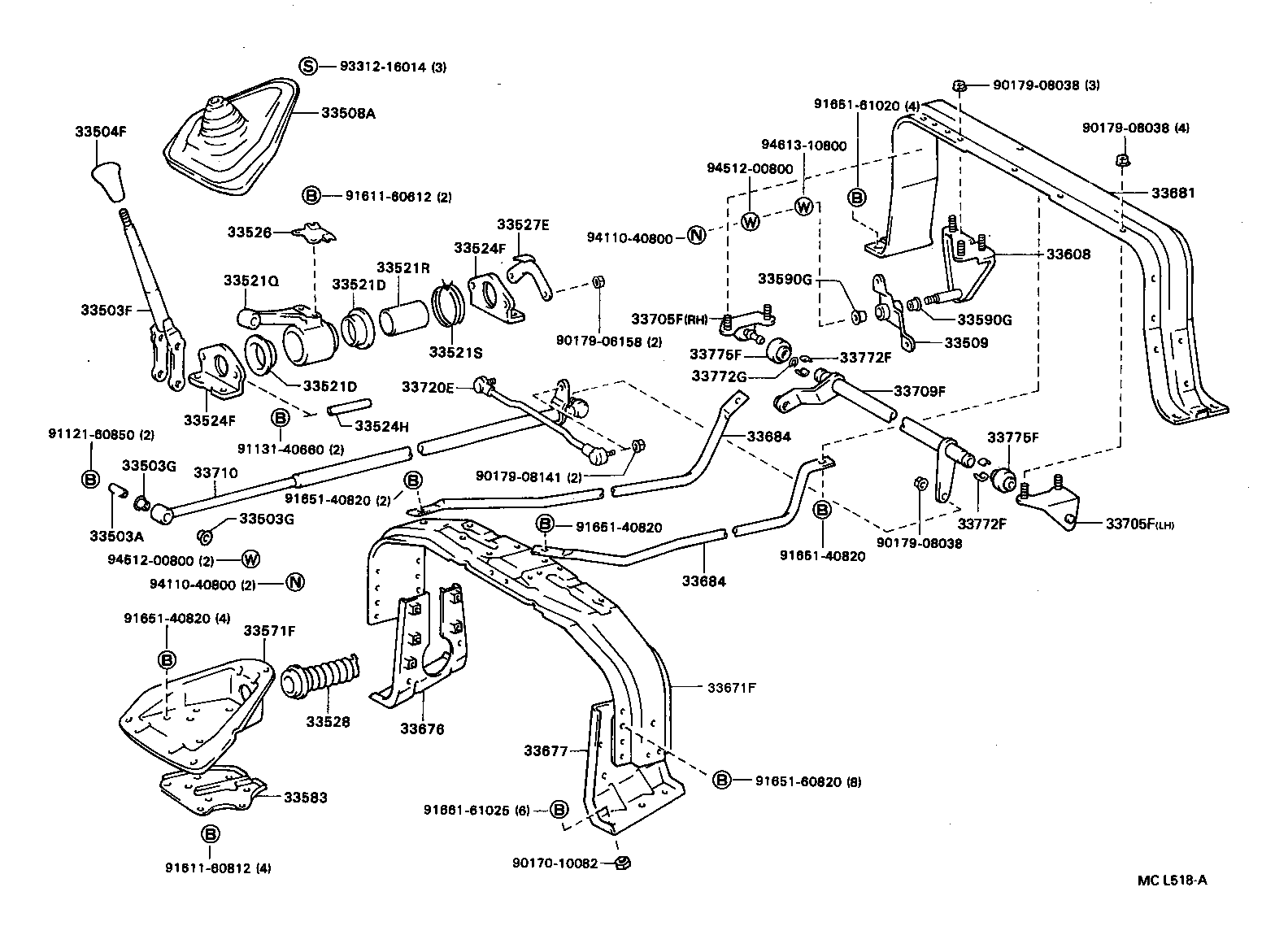

ILLUST NO. 1 OF 2(8808- )BU60,61,65,66,70,83,84..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08009 |
BU6#,70,8#,9#..5F |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36060 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F |
1 | ||
| 33503-36060 |
BU91..GEN,SA;BU66..T3..TB;BU60,61,65,70,8#,94,96 |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU6#,70,8#,9#..5F |
4 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU6#,70,8#,9#..5F |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605006 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F BROWN,TRIM4# |
1 | ||
| 33504-36050B0 |
BU91..GEN,SA;BU6#,70,8#,94,96..5F GRAY,TRIM1# |
1 | ||
| 33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT) | ||||
| 33508-36020 |
BU6#,70,83,84,88,91,96..LHD |
1 | ||
| 33508-36020 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84,88,91,96..LHD |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-36030 |
BU6#,70,83,84..LHD |
1 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU6#,70,8#,9#..5F |
2 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU6#,70,8#,9#..5F |
2 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-36050 |
BU6#,70,8#,9#..5F |
1 | ||
| 33521R - COLLAR (FOR SHIFT LEVER HOUSING) | ||||
| 90387-34001 |
BU6#,70,8#,9#..5F |
1 | ||
| 33521S - SPRING (FOR SHIFT LEVER HOUSING) | ||||
| 90508-26063 |
BU6#,70,83,84,87..5F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU6#,70,8#,9#..5F |
2 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU6#,70,8#,9#..5F |
2 | ||
| 33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) | ||||
| 90387-06026 |
BU6#,70,8#,9#..5F |
2 | ||
| 33526 - PLATE, SHIFT LEVER SUPPORT, NO.1 | ||||
| 33526-36010 |
BU6#,70,83,84,87..5F |
1 | ||
| 33527E - PLATE, SHIFT LEVER SUPPORT, NO.2 | ||||
| 33527-36130 |
BU6#,70,8#,9#..5F |
1 | ||
| 33528 - COVER, CONTROL SHAFT | ||||
| 33528-36020 |
BU6#,70,8#,9#..5F |
1 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-36100 |
BU6#,70,83,84..LHD |
1 | ||
| 33583 - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33583-36030 |
BU6#,70,83,84..LHD |
1 | ||
| 33583-36030 |
BU66..T3..TB..GEN;BU60,61,65,70,83,84..LHD |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU6#,70,8#,9#..5F |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU6#,70,8#,9#..5F |
2 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-36030 |
BU6#,70,83,84..LHD |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33671-36080 |
BU6#,70,83,84,87 |
1 | ||
| 33671-36081 |
BU6#,70,83,84,87 |
1 | ||
| 33676 - SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT) | ||||
| 33676-36011 |
BU6#,70,83,84,87 |
1 | ||
| 33677 - SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT) | ||||
| 33677-36010 |
BU6#,70,83,84,87 |
1 | ||
| 33681 - MEMBER, CONTROL ROD, REAR | ||||
| 33681-36011 |
BU60,61,66,70,8#,9# |
1 | ||
| 33684 - ROD, CONTROL MEMBER BRACE | ||||
| 33684-36020 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33684-36021 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33684-36010 |
BU6#,70,83,84..LHD RH |
1 | ||
| 33684 - ROD, CONTROL MEMBER BRACE | ||||
| 33684-36020 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33684-36021 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33684-36010 |
BU6#,70,83,84..LHD RH |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-36320 |
BU6#,70,83,84..LHD RH |
1 | ||
| 33705-36330 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33705-36280 |
BU60,61,66,70,83,84,87..5F |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-36320 |
BU6#,70,83,84..LHD RH |
1 | ||
| 33705-36330 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33705-36280 |
BU60,61,66,70,83,84,87..5F |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-36330 |
BU6#,70,83,84..LHD |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-36230 |
BU6#,70,83,84..LHD |
1 | ||
| 33710-36231 |
BU6#,70,83,84..LHD |
1 | ||
| 33720E - ROD ASSY, GEAR SELECTING | ||||
| 33720-36210 |
BU6#,70,83,84..LHD |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
BU6#,70,83,84,88,91,96..LHD |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
BU6#,70,83,84,88,91,96..LHD |
4 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
BU6#,70,8#,9#..5F |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU6#,70,83,84,88,91,96..LHD |
2 | ||
| 33775-20020 |
BU6#,70,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU6#,70,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU6#,70,83,84,88,91,96..LHD |
2 | ||
| 33775-20020 |
BU6#,70,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU6#,70,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 91121-60850 | ||||
| 91131-40660 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 91651-61020 | ||||
| 91661-61025 | ||||
| 93312-16014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||

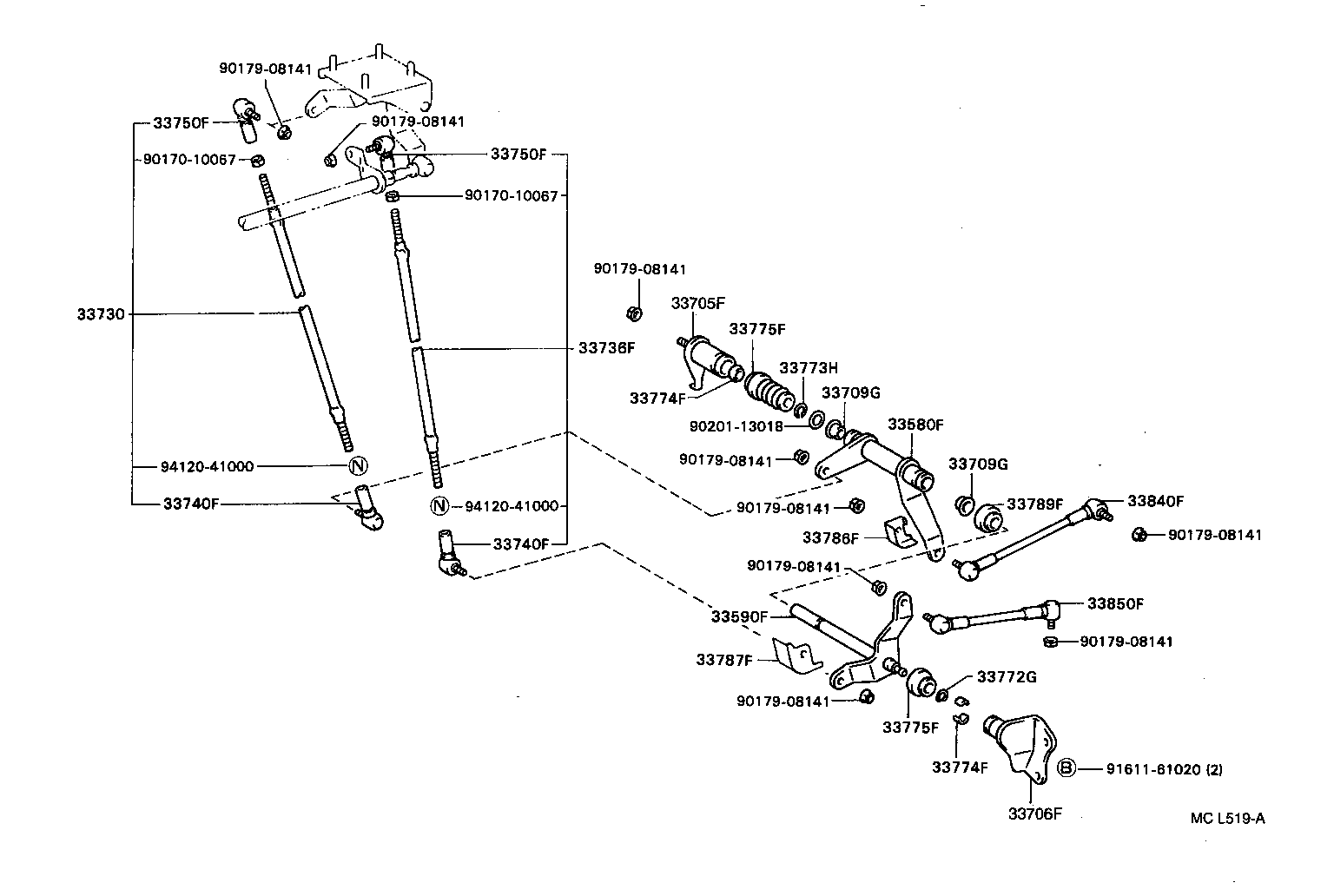

ILLUST NO. 2 OF 2(8808- )BU60,61,65,66,70,83,84,87..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36030 |
BU6#,70,83,84..LHD |
1 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-36040 |
BU6#,70,83,84,87..5F |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-36320 |
BU6#,70,83,84..LHD RH |
1 | ||
| 33705-36330 |
BU6#,70,83,84..LHD LH |
1 | ||
| 33705-36280 |
BU60,61,66,70,83,84,87..5F |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36060 |
BU6#,70,83,84,87..5F |
1 | ||
| 33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33730-36260 |
BU6#,70,83,84,87..5F |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36500 |
BU6#,70,83,84..LHD |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU6#,70,8#,9#..5F GEAR SELECTING SIDE |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU6#,70,8#,9#..5F GEAR SELECTING SIDE |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
BU6#,70,8#,9#..5F |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
BU6#,70,8#,9#..5F |
1 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
BU6#,70,8#,9#..5F |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 90520-12256 |
BU6#,70,83,84,87..5F |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
BU6#,70,8#,9#..5F LH |
2 | ||
| 33772-36010 |
BU6#,70,83,84,87..5F RH |
1 | ||
| 33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
BU6#,70,8#,9#..5F LH |
2 | ||
| 33772-36010 |
BU6#,70,83,84,87..5F RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU6#,70,83,84,88,91,96..LHD |
2 | ||
| 33775-20020 |
BU6#,70,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU6#,70,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU6#,70,83,84,88,91,96..LHD |
2 | ||
| 33775-20020 |
BU6#,70,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU6#,70,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3 | ||||
| 33787-36010 |
BU6#,70,83,84,87..5F |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36020 |
BU6#,70,83,84,87..5F |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36320 |
BU6#,70,83,84,87..5F |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36180 |
BU6#,70,83,84,87..5F |
1 | ||
| Common parts | ||||
| 90170-10067 | ||||
| 90179-08141 | ||||
| 90201-13018 | ||||
| 91611-61020 | ||||
| 94120-41000 | ||||
