YY211R-TLMGS (1995)

Toyota Dyna 150

Production May 1995 - Feb 2000
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

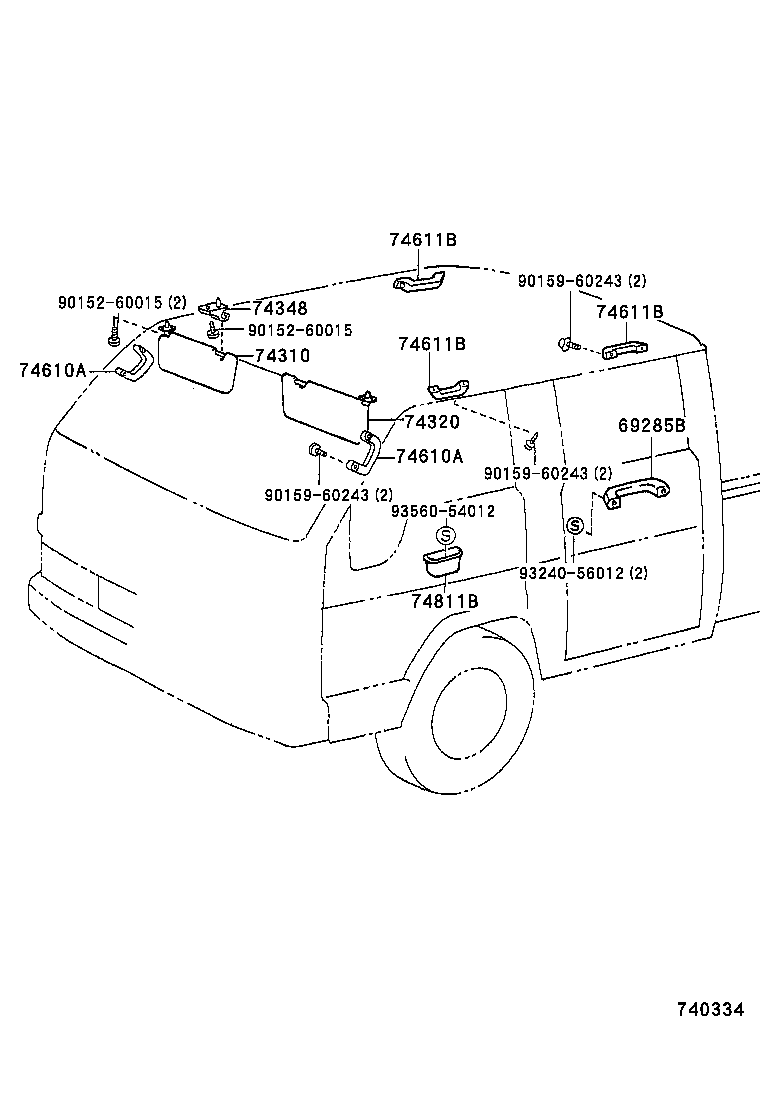

Click highlighted areas on diagram

diagram 69285B 74310 74320 74348 74610A 74610A 74611B 74611B 74611B 74811B 9015260015 9015260015 9015960243 9015960243 9015960243 9324056012 9356054012
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-25010B0

LY21#,YY211..EUR,GEN,SA

LT. GRAY,TRIM1#

 1
74310-95430B0

LY21#,YY211..EUR,GEN

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-95418B1

LY21#,YY211..EUR,GEN

W(ROOF VENTILATOR),LT. GRAY,TRIM1#

 1
74320-25010B0

LY21#,YY211..EUR,GEN,SA

LT. GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-25010B0

LY21#,YY211

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74620-87001B0

LY21#,YY211

GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74620-87001B0

LY21#,YY211

GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-92601B0

LY21#,YY211..15T

GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-92601B0

LY21#,YY211..15T

GRAY,TRIM1#

 1
74611B - GRIP, ASSIST
74611-92601B0

LY21#,YY211..15T

GRAY,TRIM1#

 1
74811B - HANDLE, DOOR PULL
74811-87001B0

LY21#,YY211

GRAY,TRIM1#

 2
Common parts
90152-60015
90159-60243
93240-56012
93560-54012
