YY211R-TLMGS (1995)

Toyota Dyna 150

Production May 1995 - Feb 2000
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

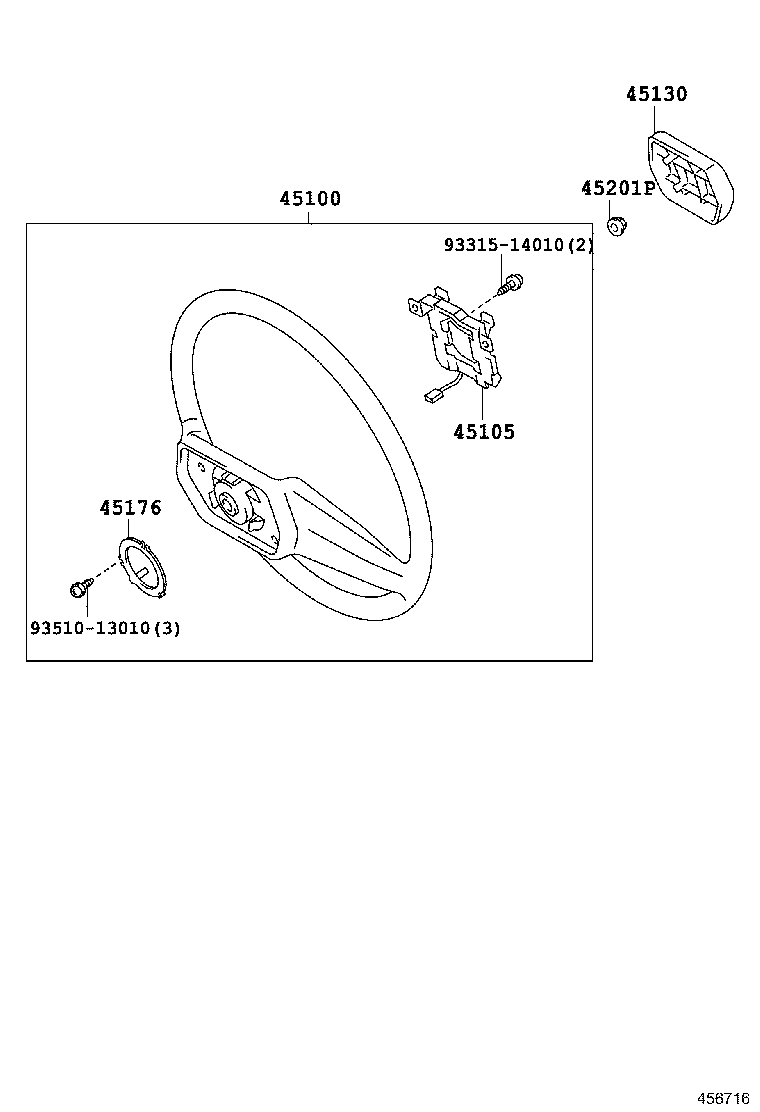

Click highlighted areas on diagram

diagram 45100 45105 45130 45176 45201P 9331514010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110B0

LY21#,YY211

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36010

LY21#,YY211

 1
45130 - BUTTON ASSY, HORN
45130-36090B0

LY21#,YY211

BLUISH GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36010

LY21#,YY211

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

LY21#,YY211

 1
Common parts
93315-14010
93510-13010
