YY211R-TLMGS (1995)
Toyota Dyna 150
Production
May 1995
-
Feb 2000
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )3Y

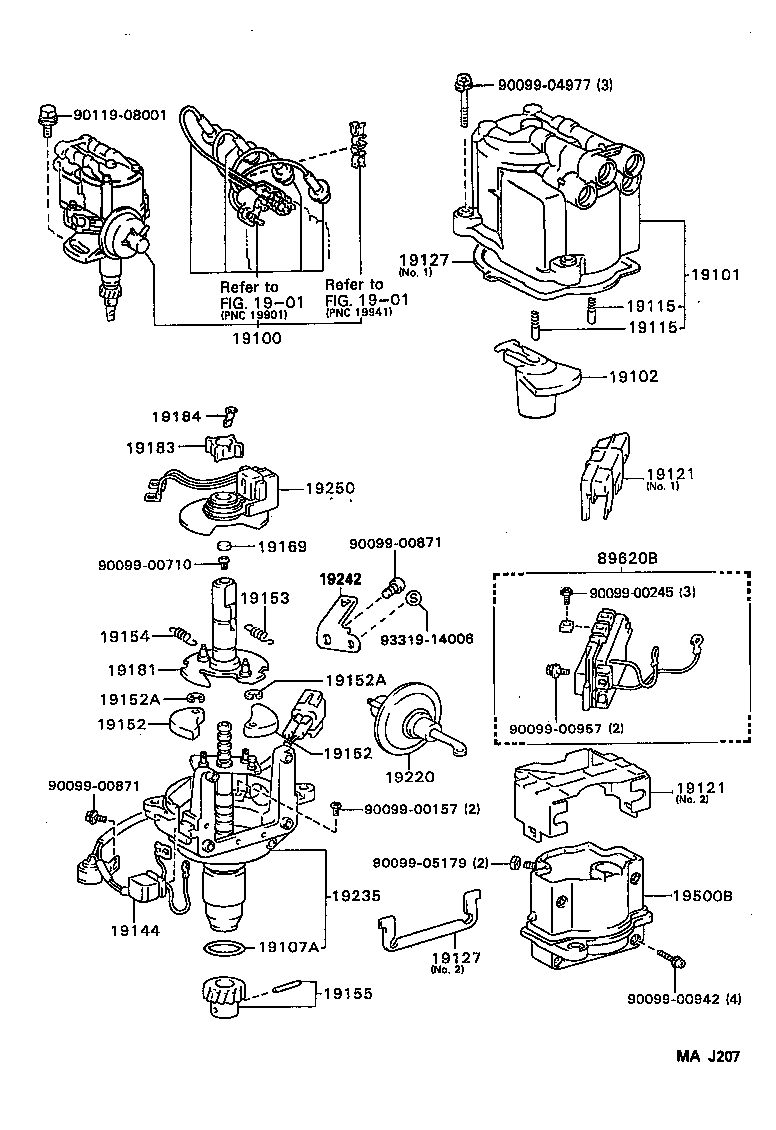

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-73131 |
3Y..YY211..WT |
1 | ||
| 19030-72080 |
3Y..YY211 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71010 |
3Y..YY211 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16060 |
3Y..YY211..WT |
1 | ||
| 19102-16040 |
3Y..YY211 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14090 |
3Y..YY211 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
3Y..YY211 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
3Y..YY211 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
3Y..YY211 NO.2 |
1 | ||
| 19121-63010 |
3Y..YY211 NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
3Y..YY211 NO.2 |
1 | ||
| 19121-63010 |
3Y..YY211 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
3Y..YY211 NO.1 |
1 | ||
| 19127-63020 |
3Y..YY211 NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
3Y..YY211 NO.1 |
1 | ||
| 19127-63020 |
3Y..YY211 NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-73060 |
3Y..YY211..WT |
1 | ||
| 19144-73070 |
3Y..YY211 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
3Y..YY211 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
3Y..YY211 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
3Y..YY211 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
3Y..YY211 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-72060 |
3Y..YY211 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19153-72060 |
3Y..YY211 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71010 |
3Y..YY211 |
1 | ||
| 19195-72090 |
3Y..YY211 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
3Y..YY211 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-72011 |
3Y..YY211 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63030 |
3Y..YY211 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
3Y..YY211 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-73130 |
3Y..YY211..WT |
1 | ||
| 19220-72070 |
3Y..YY211 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-72011 |
3Y..YY211 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-72030 |
3Y..YY211 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-63011 |
3Y..YY211 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02139 |
3Y..YY211 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-32020 |
YY211 |
1 | ||
| Common parts | ||||
| 90099-00157 | ||||
| 90099-00245 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
