YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

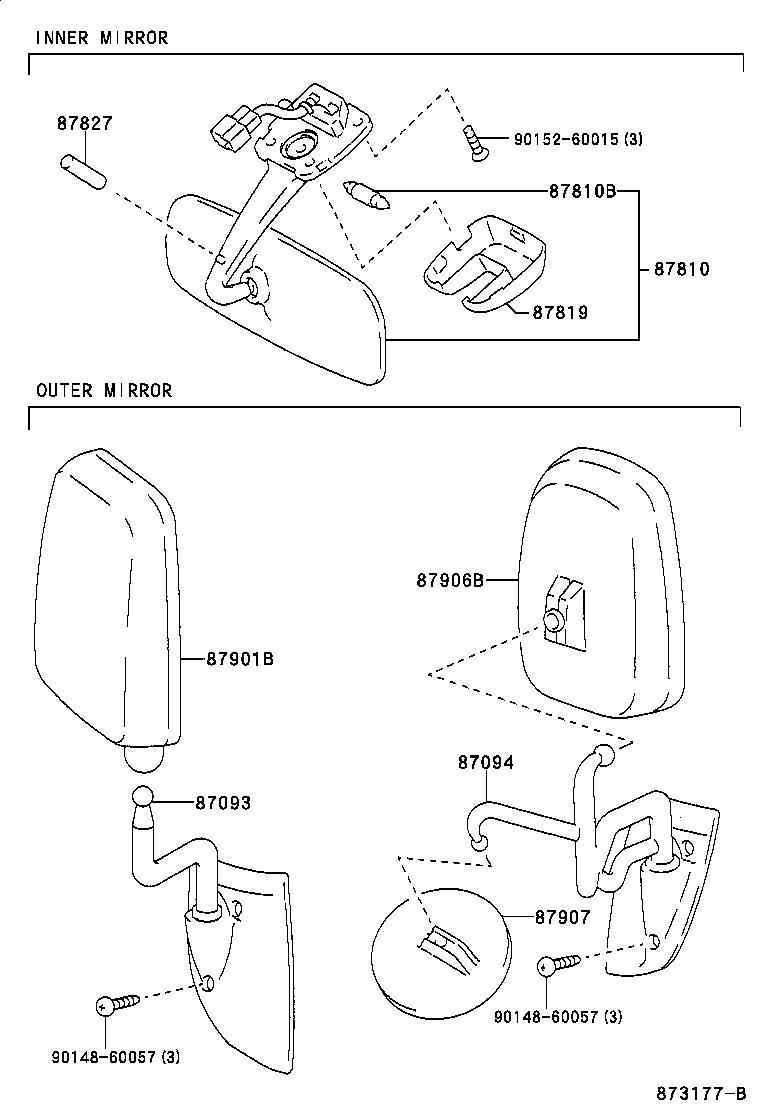

Click highlighted areas on diagram

diagram 87093 87094 87810 87810B 87819 87827 87901B 87906B 87907 9014860057 9014860057 9015260015
Part # Description Qty Price
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-25010

LY211,YY211..RHD..GEN

W(FR UNDER MIRROR)

 1
87094-25020

LY211,YY211..RHD..GEN

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-25020C0

LY21#,YY211..ARL,GEN

BLACK,TRIM1#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

LY21#,YY211

12V 10W

 1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-25010

LY21#,YY211

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-23010

LY21#,YY211

L=40.5

 1
87828-30010

LY21#,YY211

L=44.0

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95A00

LY211,YY211..RHD..GEN

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-37050

LY211,YY211..GEN

 1
Common parts
90148-60057
90152-60015

(9505- )

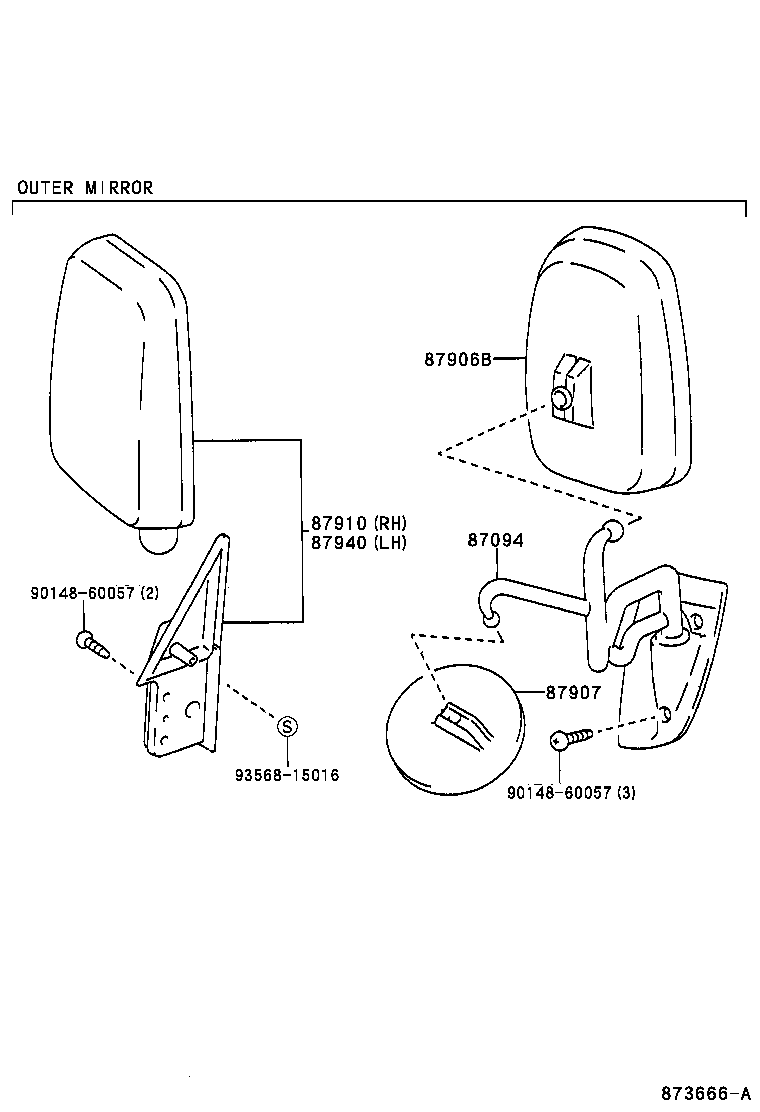

Click highlighted areas on diagram

diagram 87094 87906B 87907 87910 87940 9014860057 9014860057 9356815016
Part # Description Qty Price
87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87094-25010

LY211,YY211..RHD..GEN

W(FR UNDER MIRROR)

 1
87094-25020

LY211,YY211..RHD..GEN

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-95A00

LY211,YY211..RHD..GEN

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-37050

LY211,YY211..GEN

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95A15

LY211,YY211..RHD..GEN

 1
Common parts
90148-60057
93568-15016
