YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

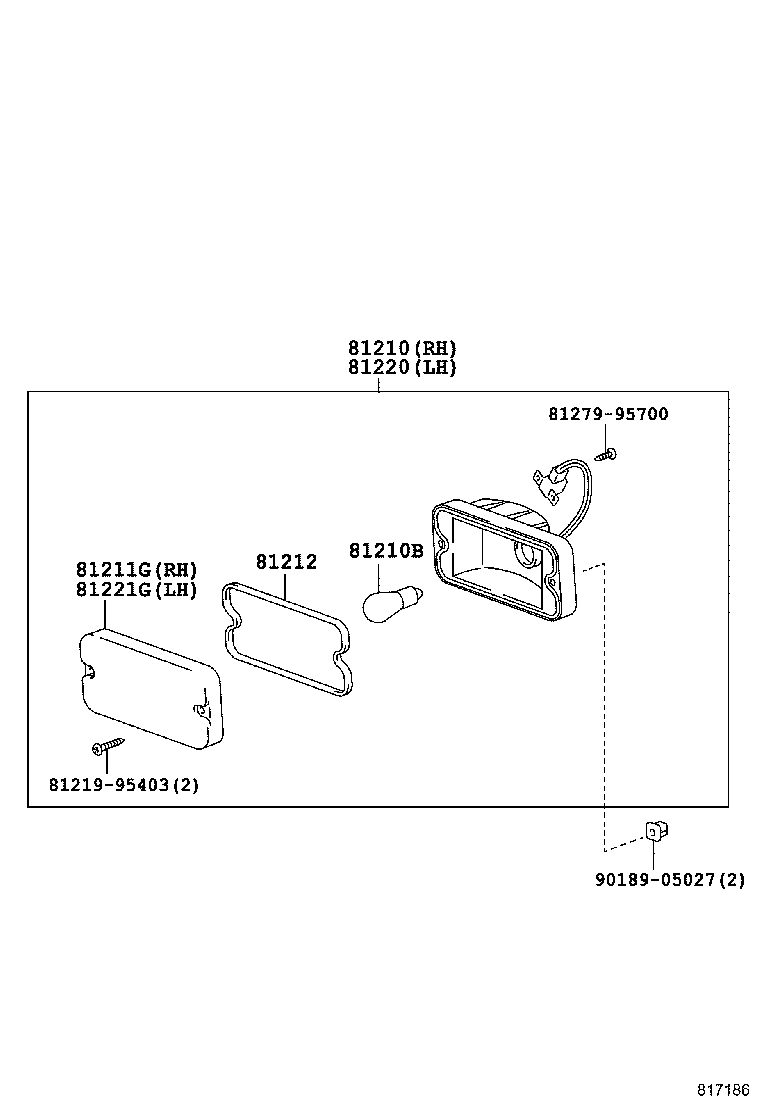

Click highlighted areas on diagram

diagram 81210 81210B 81211G 81212 8121995403 81220 81221G 8127995700 9018905027
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-39155

LY21#,YY211..GEN

 1
81210B - BULB, FOG LAMP
90981-13029

LY21#,YY211..GEN

12V 35W

 2
81211G - LENS, FOG LAMP, RH
81211-95403

LY21#,YY211..GEN

 1
81212 - GASKET, FOG LAMP LENS
81212-95403

LY21#,YY211..GEN

 2
81220 - LAMP ASSY, FOG, LH
81220-39095

LY21#,YY211..GEN

 1
81221G - LENS, FOG LAMP, LH
81221-95403

LY21#,YY211..GEN

 1
Common parts
81219-95403
81279-95700
90189-05027
