YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15T

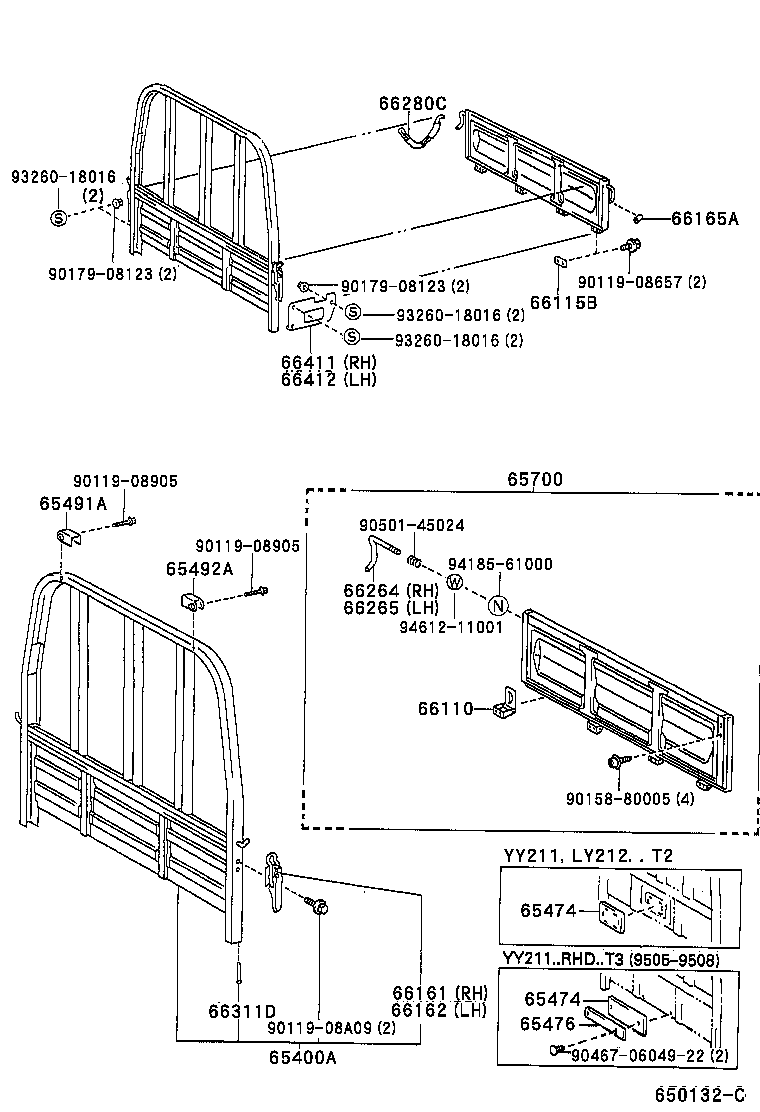

Click highlighted areas on diagram

diagram 65400A 65474 65474 65476 65491A 65492A 65700 66110 66115B 66161 66162 66165A 66264 66265 66280C 66311D 66411 66412 9011908657 9011908905 9011908905 9011908A09 9015880005 9017908123 9017908123 904670604922 9050145024 9326018016 9326018016 9326018016 9418561000 9461211001
Part # Description Qty Price
65400A - GUARD ASSY, REAR BODY
65400-25010

LY211,YY211..ST..15T..CBU

 1
65474 - INSULATOR, HEADER
65474-25020

YY211..RHD..ST

SINGAPORE SPEC

 1
65474 - INSULATOR, HEADER
65474-25020

YY211..RHD..ST

SINGAPORE SPEC

 1
65476 - INSULATOR, HEADER BOARD, NO.2
65476-25010

YY211..RHD..ST

SINGAPORE SPEC

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-25010

LY21#,YY211..15T..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-25010

LY21#,YY211..15T..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-26010

LY21#,YY211..15T..CBU

 1
66110 - HINGE ASSY, TAIL GATE
66110-26010

LY21#,YY211..15T..CBU

 4
66115B - RETAINER, GATE HINGE
66115-95013

LY21#,YY211..15T..CBU

 4
66161 - HANDLE, SIDE GATE LATCH, RH
65480-95011

LY21#,YY211..15T..CBU

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65480-95011

LY21#,YY211..15T..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-87402

LY21#,YY211..15T..CBU

 2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-26010

LY21#,YY211..15T..CBU

 1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-26010

LY21#,YY211..15T..CBU

 1
66280C - CHAIN ASSY, TAIL GATE
66280-25010

LY21#,YY211..15T..CBU

 2
66311D - HOOK, ROPE
66312-95A01

LY21#,YY211..15T..CBU

 2
66411 - BRACKET, GUARD FRAME, RH
66411-95022

LY21#,YY211..15T..CBU

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95022

LY21#,YY211..15T..CBU

 1
Common parts
90119-08657
90119-08905
90119-08A09
90158-80005
90179-08123
90467-0604922
90501-45024
93260-18016
94185-61000
94612-11001
