YY211R-TBMFS (1995)
Toyota Dyna 150
Production
May 1995
-
May 1999
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )YY211

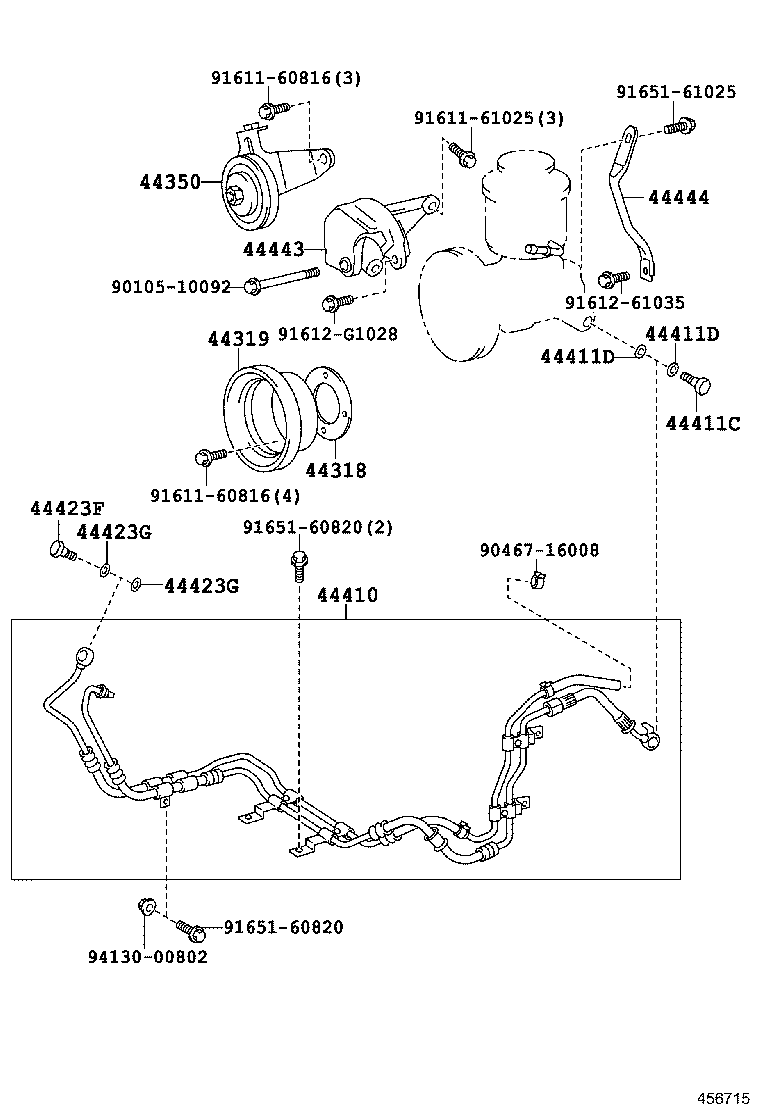

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
YY211..RHD |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
YY211..RHD |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
YY211..RHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25050 |
YY211..RHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
LY211,YY211..RHD..GEN |
1 | ||
| 90401-16027 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
2 | ||
| 90430-16168 |
LY211,YY211..RHD..GEN |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
2 | ||
| 90430-16168 |
LY211,YY211..RHD..GEN |
2 | ||
| 44423F - BOLT, UNION | ||||
| 90401-17002 |
LY211,YY211..RHD..GEN |
1 | ||
| 96341-11703 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 90401-17002 |
LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
2 | ||
| 90430-17002 |
LY211,YY211..RHD..GEN |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
2 | ||
| 90430-17002 |
LY211,YY211..RHD..GEN |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
YY211..RHD |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
YY211..RHD |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90467-16008 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91612-61035 | ||||
| 91612-G1028 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 94130-00802 | ||||
