Toyota Dyna 150 YY211 AIR CLEANER

YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

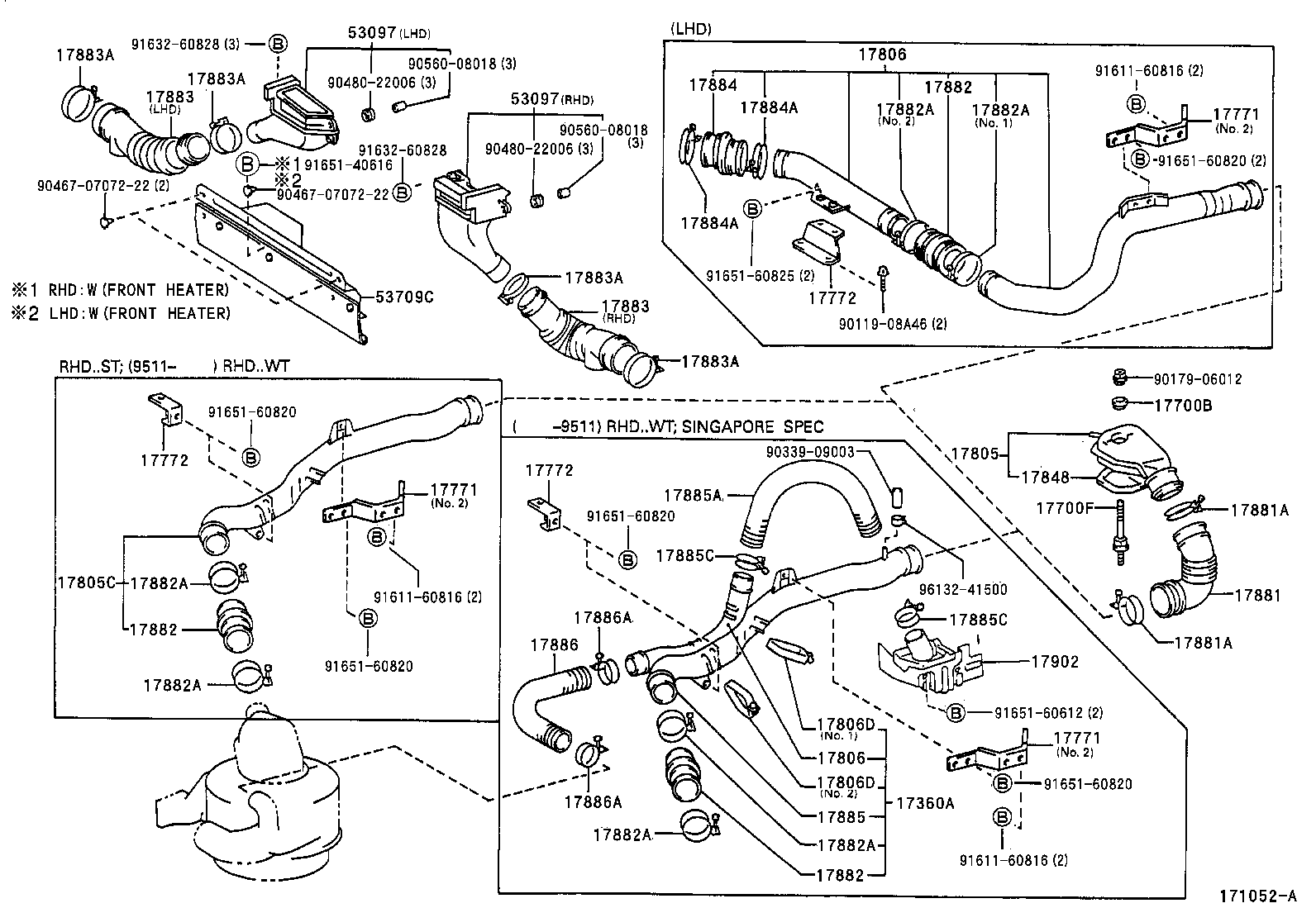

ILLUST NO. 2 OF 3(9505- )3Y

Click highlighted areas on diagram

Part #	Description	Period	Qty
17360A - TUBE ASSY, AIR
17360-73010	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09026	3Y..YY211	05/1995 - 12/2999	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06093	3Y..YY211	05/1995 - 12/2999	1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-71010	3Y..YY211 NO.1	05/1995 - 12/2999	1
17771-54010	3Y..YY211 NO.2	05/1995 - 12/2999	1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-71010	3Y..YY211 NO.1	05/1995 - 12/2999	1
17771-54010	3Y..YY211 NO.2	05/1995 - 12/2999	1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-71010	3Y..YY211 NO.1	05/1995 - 12/2999	1
17771-54010	3Y..YY211 NO.2	05/1995 - 12/2999	1
17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17772-54031	3Y..YY211..RHD	05/1995 - 02/2000	1
17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17772-54031	3Y..YY211..RHD	05/1995 - 02/2000	1
17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2
17772-54031	3Y..YY211..RHD	05/1995 - 02/2000	1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-71020	3Y..YY211..ST	05/1995 - 12/2999	1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-73220	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17886-73030	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
17886-73030	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17806D - CLAMP(FOR AIR CLEANER PIPE)
90460-01039	3Y..YY211..RHD..ST SINGAPORE SPEC,NO.2	05/1995 - 08/1995	1
90460-01038	3Y..YY211..RHD..ST SINGAPORE SPEC,NO.1	05/1995 - 08/1995	1
17806D - CLAMP(FOR AIR CLEANER PIPE)
90460-01039	3Y..YY211..RHD..ST SINGAPORE SPEC,NO.2	05/1995 - 08/1995	1
90460-01038	3Y..YY211..RHD..ST SINGAPORE SPEC,NO.1	05/1995 - 08/1995	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010	3Y..YY211	05/1995 - 12/2999	1
17881 - HOSE, AIR CLEANER, NO.1
17881-71080	3Y..YY211	05/1995 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y..YY211 CONNECTOR SIDE	05/1995 - 12/2999	1
96111-10750	3Y..YY211 CARBURETOR SIDE	05/1995 - 12/2999	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690	3Y..YY211 CONNECTOR SIDE	05/1995 - 12/2999	1
96111-10750	3Y..YY211 CARBURETOR SIDE	05/1995 - 12/2999	1
17882 - HOSE, AIR CLEANER, NO.2
17882-54220	3Y..YY211..RHD	05/1995 - 02/2000	1
17882 - HOSE, AIR CLEANER, NO.2
17882-54220	3Y..YY211..RHD	05/1995 - 02/2000	1
17882 - HOSE, AIR CLEANER, NO.2
17882-54220	3Y..YY211..RHD	05/1995 - 02/2000	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
96111-10750	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17883 - HOSE, AIR CLEANER, NO.3
17883-73030	3Y..YY211..RHD	05/1995 - 02/2000	1
17883 - HOSE, AIR CLEANER, NO.3
17883-73030	3Y..YY211..RHD	05/1995 - 02/2000	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y..YY211 AIR CLEANER SIDE	05/1995 - 12/2999	1
96111-10690	3Y..YY211..RHD INLET SIDE	05/1995 - 02/2000	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y..YY211 AIR CLEANER SIDE	05/1995 - 12/2999	1
96111-10690	3Y..YY211..RHD INLET SIDE	05/1995 - 02/2000	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y..YY211 AIR CLEANER SIDE	05/1995 - 12/2999	1
96111-10690	3Y..YY211..RHD INLET SIDE	05/1995 - 02/2000	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10750	3Y..YY211 AIR CLEANER SIDE	05/1995 - 12/2999	1
96111-10690	3Y..YY211..RHD INLET SIDE	05/1995 - 02/2000	1
17885 - PIPE, AIR CLEANER
17885-73100	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17885A - HOSE, AIR CLEANER, NO.5
17881-13121	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5)
90460-47036	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5)
90460-47036	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
17886 - HOSE, AIR CLEANER, NO.6
17882-73030	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6)
90460-47036	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6)
90460-47036	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	2
53097 - INLET SUB-ASSY
53097-25080	YY211..RHD	05/1995 - 02/2000	1
53097 - INLET SUB-ASSY
53097-25080	YY211..RHD	05/1995 - 02/2000	1
53709C - COVER SUB-ASSY, AIR CLEANER INLET
53709-37010	YY211..RHD W(FRONT HEATER)	05/1995 - 02/2000	1
53709-37040	YY211..RHD	05/1995 - 02/2000	1
Common parts
90119-08A46
90179-06012
90339-09003
90467-0707222
90480-22006
90560-08018
91611-60816
91632-60828
91651-40616
91651-60612
91651-60820
91651-60825
96132-41500

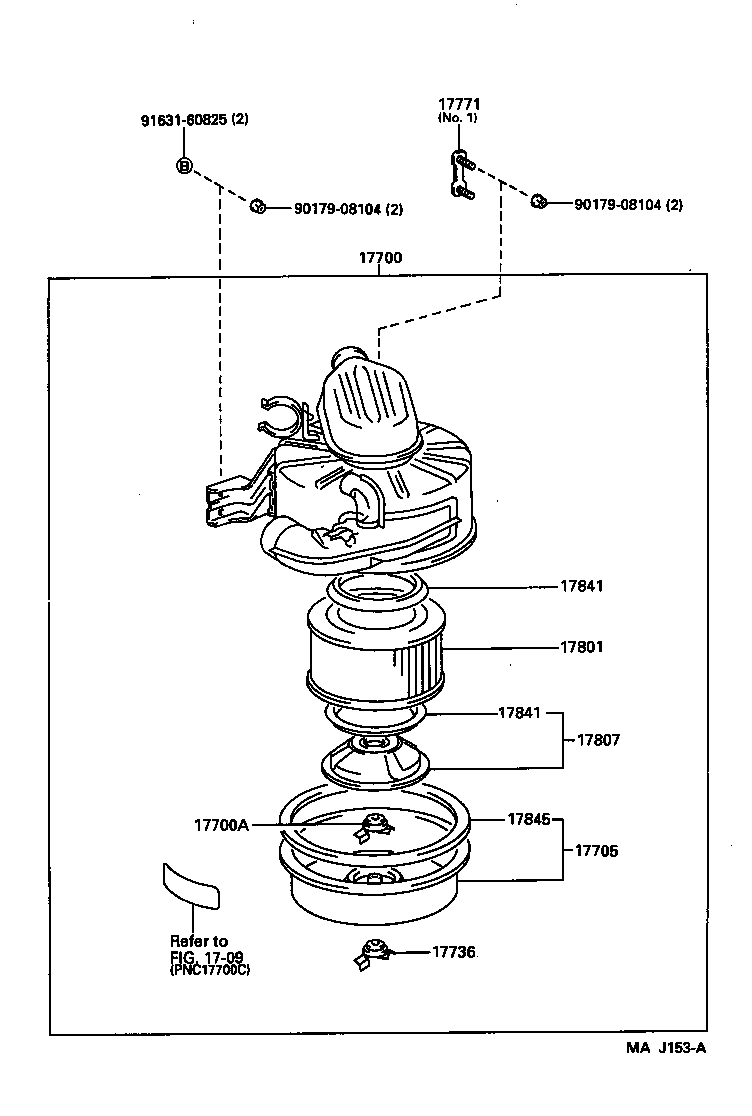

ILLUST NO. 1 OF 3(9505- )3Y

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-73300	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17700-73310	3Y..YY211..RHD..ST	05/1995 - 11/1995	1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008	3Y..YY211	05/1995 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54260	3Y..YY211	05/1995 - 12/2999	1
17736 - NUT, AIR CLEANER CASE
90175-06003	3Y..YY211	05/1995 - 12/2999	1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-71010	3Y..YY211 NO.1	05/1995 - 12/2999	1
17771-54010	3Y..YY211 NO.2	05/1995 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54070	3Y..YY211..RHD..ST SINGAPORE SPEC	05/1995 - 08/1995	1
17801-35030	3Y..YY211	11/1995 - 12/2999	1
17801-35030	3Y..YY211..ST	05/1995 - 11/1995	1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-73010	3Y..YY211	05/1995 - 12/2999	1
17841 - GASKET, FILTER ELEMENT
17841-54010	3Y..YY211	05/1995 - 12/2999	2
17841 - GASKET, FILTER ELEMENT
17841-54010	3Y..YY211	05/1995 - 12/2999	2
17845 - GASKET, AIR CLEANER CAP
17845-56020	3Y..YY211	05/1995 - 12/2999	1
Common parts
90179-08104
91631-60825
Linked diagrams
1709

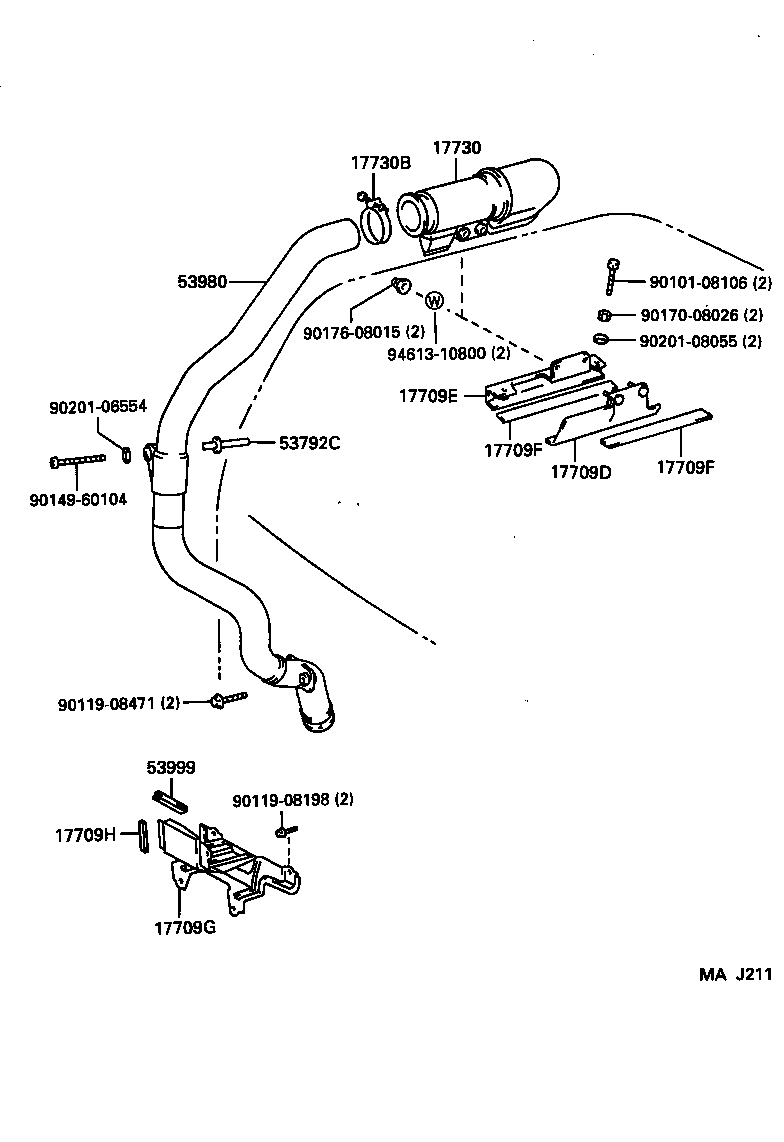

ILLUST NO. 3 OF 3(9505- )3Y

Click highlighted areas on diagram

W(FRONT SCHNORKEL)

Part #	Description	Period	Qty	Price
Common parts
90101-08106
90119-08198
90119-08471
90149-60104
90170-08026
90176-08015
90201-06554
90201-08055
94613-10800
