Toyota Dyna 150 YY211 REAR COMBINATION LAMP

Manufacturers Home
Toyota
GR
DYNA 150
YY211R-PGMES (1995)
8111 - REAR COMBINATION LAMP

YY211R-PGMES (1995)

Toyota Dyna 150

Production May 1995 - May 1999

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )

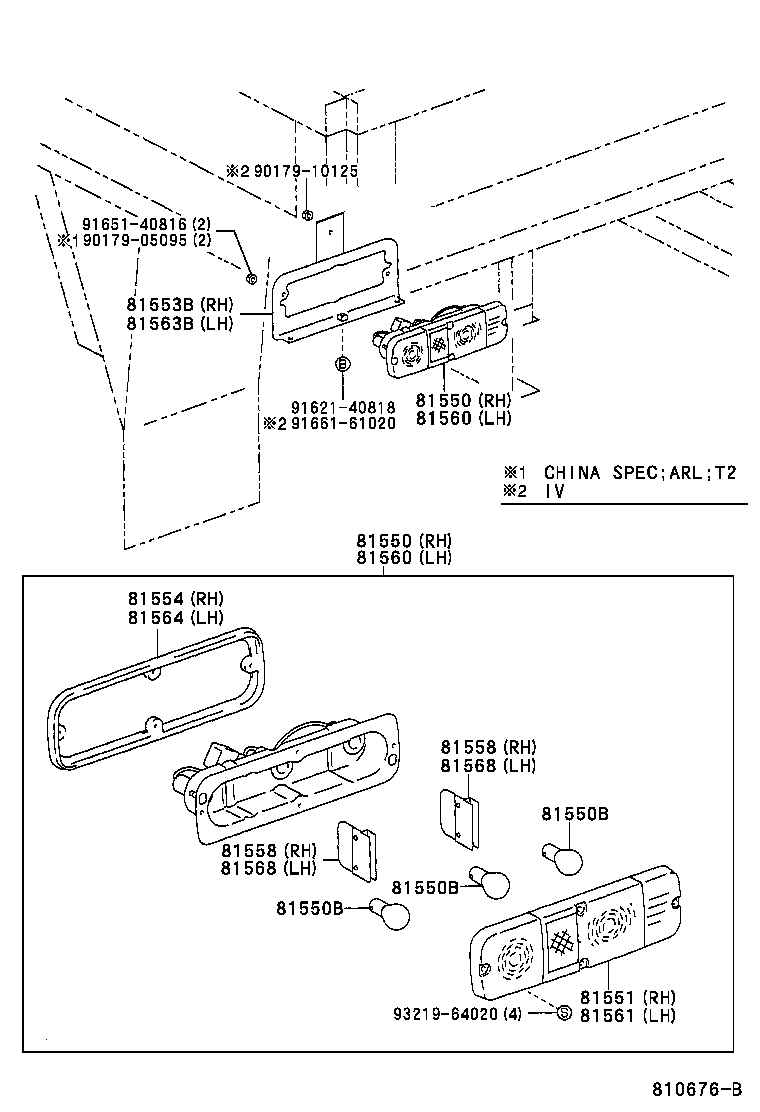

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25100	LY211,YY211..GEN	05/1995 - 05/1997	1
81550-25101	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25100	LY211,YY211..GEN	05/1995 - 05/1997	1
81550-25101	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060	LY21#,YY211..GEN	05/1995 - 12/2999	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060	LY21#,YY211..GEN	05/1995 - 12/2999	1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060	LY21#,YY211..GEN	05/1995 - 12/2999	2
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-25060	LY21#,YY211..GEN	05/1995 - 12/2999	2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25090	LY211,YY211..GEN	05/1995 - 05/1997	1
81560-25091	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25090	LY211,YY211..GEN	05/1995 - 05/1997	1
81560-25091	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040	LY21#,YY211..GEN	05/1995 - 12/2999	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040	LY21#,YY211..GEN	05/1995 - 12/2999	1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060	LY21#,YY211..GEN	05/1995 - 12/2999	2
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-25060	LY21#,YY211..GEN	05/1995 - 12/2999	2
Common parts
90179-05095
90179-10125
91621-40818
91651-40816
91661-61020
93219-64020

(9505- )

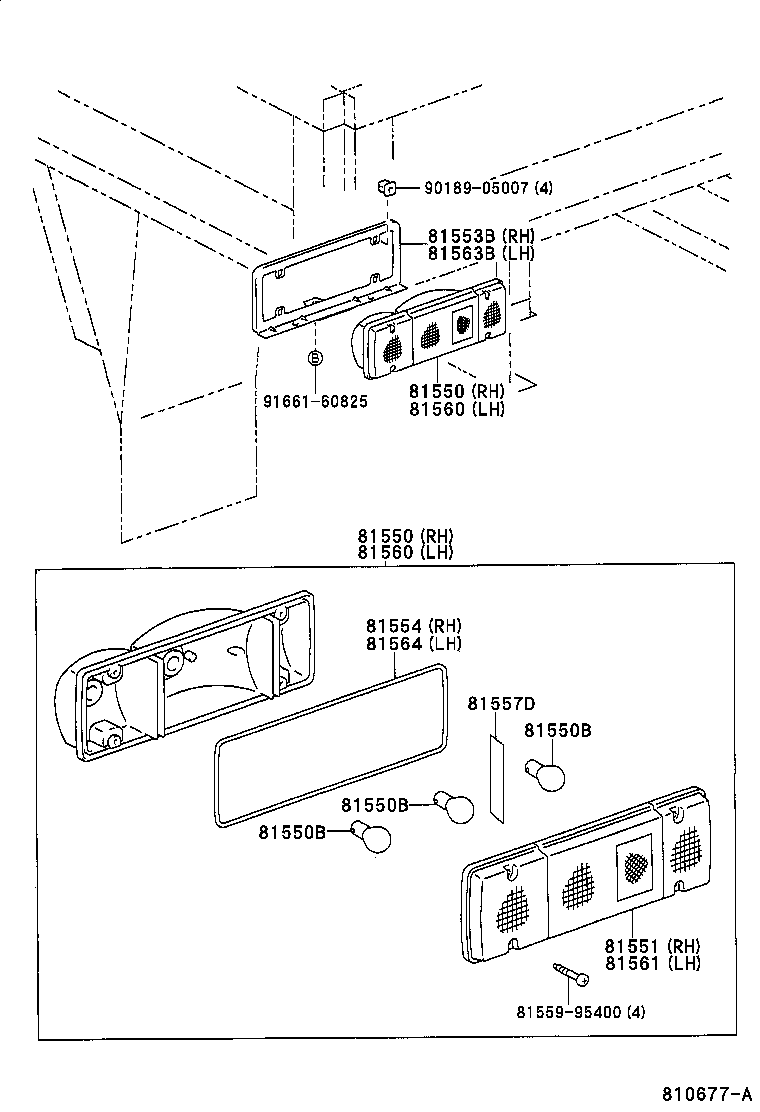

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25100	LY211,YY211..GEN	05/1995 - 05/1997	1
81550-25101	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-25100	LY211,YY211..GEN	05/1995 - 05/1997	1
81550-25101	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	LY211,YY211 12V 21W,TURN & BACK UP	05/1995 - 05/1997	4
99132-11210	LY21#,YY211..WT..CBU 12V 21W,BACK UP	05/1997 - 12/2999	2
99132-21270	LY21#,YY211..WT..CBU 12V 27/8W,TAIL & STOP	05/1997 - 12/2999	2
99132-21210	LY211,YY211 12V 21/5W,TAIL & STOP	05/1995 - 05/1997	2
99132-11270	LY21#,YY211..WT..CBU 12V 27W,TURN SIGNAL	05/1997 - 12/2999	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-25060	LY21#,YY211..GEN	05/1995 - 12/2999	1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-25060	LY21#,YY211..GEN	05/1995 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25090	LY211,YY211..GEN	05/1995 - 05/1997	1
81560-25091	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-25090	LY211,YY211..GEN	05/1995 - 05/1997	1
81560-25091	LY21#,YY211..WT..CBU	05/1997 - 12/2999	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-25040	LY21#,YY211..GEN	05/1995 - 12/2999	1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-25040	LY21#,YY211..GEN	05/1995 - 12/2999	1
Common parts
81559-95400
90189-05007
91661-60825

YY211R-PGMES (1995)

(9505- )

(9505- )

Part Price Details
